Radium Fuel Rails and Plumbing Kit | GM LS7 / LS1 LS2 LS3 LS6 L76 L99 (20-0361 / 20-0232-PK)

A 0.69in internal bore feeding an engine that came from the factory with 505 horsepower and room for far more.

The Radium Engineering fuel rails for the GM LS7 are CNC machined from extruded 6063 aluminum, black anodized and laser etched, with a large 0.69in internal bore that supports whatever the engine asks for. Like the OEM rails, the injector bores are 14mm ID so factory injectors carry over, and the rails include provisions for the factory injector clips.

Choose Your Part

• Fuel rails, GM LS7 (20-0361)
• Fuel rail plumbing kit, LS1 / LS2 / LS3 / LS6 / L76 / L99 (20-0232-PK)

What You'll Feel

• Flow capacity that keeps up with a built or boosted LS7
• Factory injectors and factory mounting hardware carried over
• 8AN ORB ports at both ends plus lower centre ports for accessories
• E85 compatibility without changing anything else

Features

• CNC machined extruded 6063 aluminum, black anodized and laser etched
• 0.69in internal bore
• All end ports tapped 8AN ORB (3/4-16 female)
• Lower centre ports also tapped 8AN ORB for optional adapters
• 14mm ID injector bores accepting factory injectors
• Provisions for the factory injector clips
• Polished stainless steel mounts using the factory hardware
• Compatible with all fuel types including E85

The Details

Note the fitment split between these two parts. The 20-0361 rails are LS7 specific. The 20-0232-PK plumbing kit is built for the LS1, LS2, LS3, LS6, L76, and L99, and the reason it is not a direct LS7 match is physical: the OEM LS7 uses an extra wide intake manifold, so the LS-family kit does not span it as supplied. Plan your plumbing accordingly if you are running the LS7 rails.

On injectors, Radium states only that factory or OEM-equivalent units are required and will not specify dimensions beyond that; consult your injector supplier if upgrading. Leave clearance around any port destined to carry a regulator, gauge, or pulse damper, and select 8AN ORB fittings to suit.

Kit Includes

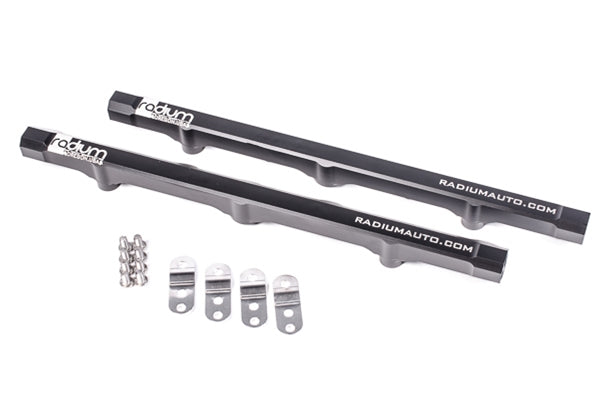

• 20-0361: black anodized laser etched aluminum fuel rails (x2), stainless steel mounting feet (x4), stainless steel hardware (x8)

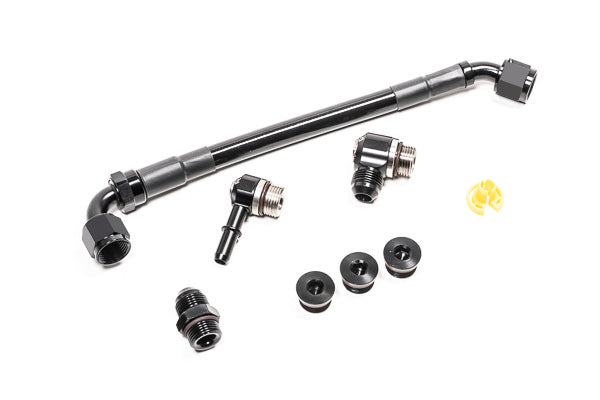

• 20-0232-PK: fittings and lines to plumb LS1/LS2/LS3/LS6/L76/L99 rails
• NOT included: AN fittings and fuel injectors

Applications

• 20-0361: 2006-2013 Chevrolet Corvette Z06, 2014-2015 Chevrolet Camaro Z28, 2013 Chevrolet Corvette 427, 2012 and newer Falcon F7
• 20-0232-PK: GM LS1, LS2, LS3, LS6, L76, and L99

Important Notes

• The plumbing kit covers LS1/LS2/LS3/LS6/L76/L99; the LS7's extra wide intake manifold means it is not a direct fit for those rails
• Factory or OEM-equivalent injectors required
• All fittings sold separately with the bare rails
