Radium Fuel Rails and Plumbing Kit | Audi R8 / Lamborghini Huracan V10 (20-0866 / 20-0866-PK)

The V10's port injection side is the half most people forget when they start chasing power.

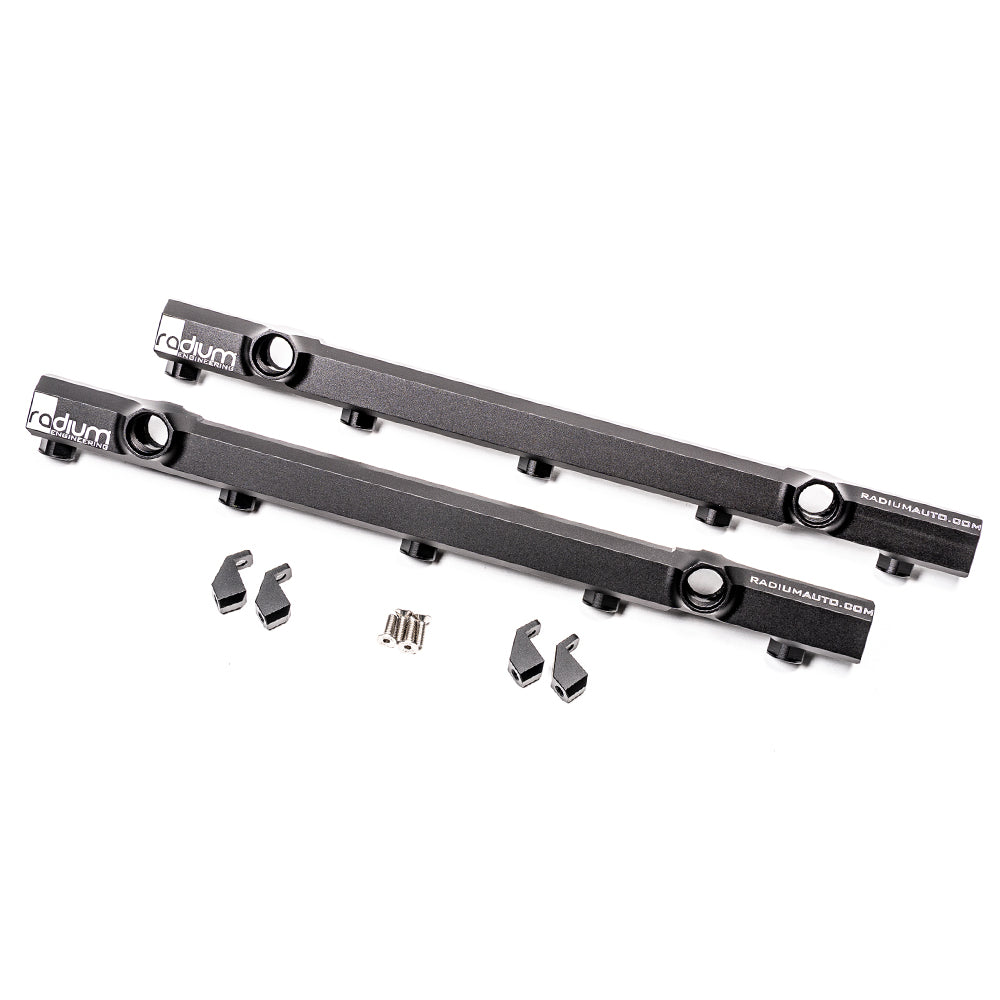

The Radium Engineering fuel rails for the Audi R8 and Lamborghini Huracan replace the factory port injection rails with CNC machined 6061 aluminum running very large 0.7 inch internal bores, anodized and laser etched. Each rail carries four 8AN ORB ports, eight across the pair. Like the OEM rails the injector bores are 14mm ID, so factory or equivalent aftermarket injectors drop straight in and the factory injector retaining clips are reused. Direct bolt-in with no modification to vehicle or engine, and compatible with all fuel types including E85.

Choose Your Parts

• Fuel rails (20-0866): rails and mounting hardware only, ideal for custom applications. Extra fittings and hoses needed to finish the job.
• Fuel rail plumbing kit (20-0866-PK): adapter fittings, plugs, and hoses making it a bolt-on affair with the OEM fuel lines

What You'll Feel

• Port injection flow that stops limiting the V10 as power climbs
• Eight ORB ports to place a regulator, gauge, or pulse damper where it fits
• Factory injectors and retaining clips carried over, no conversion needed
• The OEM pressure sensor retained rather than deleted

Features

• CNC machined 6061 aluminum, anodized and laser etched
• Very large 0.7 inch internal bores
• Four 8AN ORB ports per rail, eight total
• 14mm ID injector bores matching the OEM rails
• Factory injector retaining clips reused
• Stainless steel mounting hardware
• Compatible with all fuel types including E85

The Details

The rails alone are deliberately bare: 20-0866 includes only the rails and mounting hardware, which suits custom builds running their own plumbing. For a regulator or pulse damper, Radium points to the right rear ports as the practical location. If you are running the bare rails and want to keep the OEM pressure sensor, adapter fittings 14-0119 and 14-0359 do that.

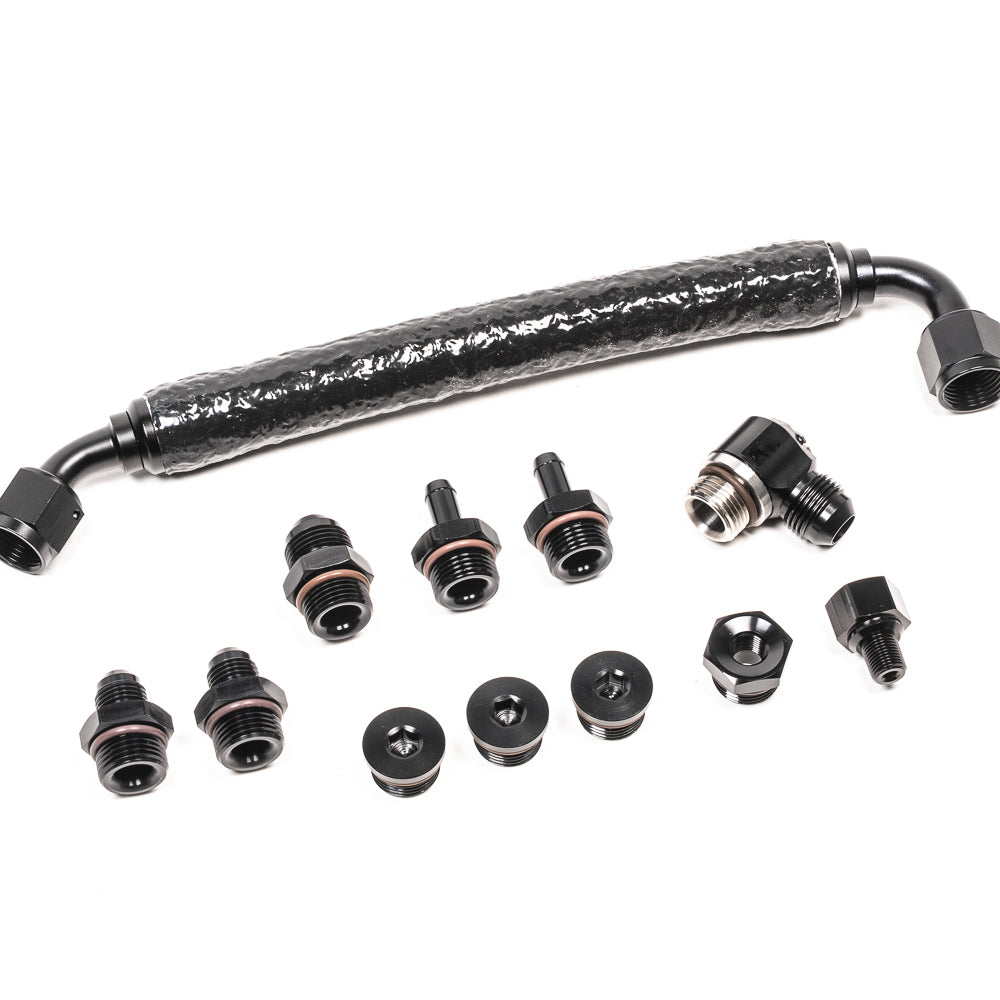

The plumbing kit is the simpler route for most cars. Its barbed fittings mimic the OEM rails, so the factory rubber hoses from the RH and LH high pressure fuel pumps reconnect as they were, and an extra set of 8AN ORB to 6AN male fittings is included for anyone plumbing aftermarket lines instead. A large insulated 8AN crossover hose feeds the front ports near the firewall for maximum flow, and adapters for reusing the OEM pressure sensor are included.

This is the port injection half of the fuel system. On a heavily built car it pairs with the 20-0860 fuel hanger surge tank and the 20-0865 port injection kit for the same platform.

Kit Includes

• 20-0866: fuel rails and stainless mounting hardware only
• 20-0866-PK: adapter fittings and plugs, barbed OEM-mimicking fittings, insulated 8AN crossover hose, 8AN ORB to 6AN male fittings, OEM pressure sensor adapters
• NOT included: fuel injectors

Applications

• Audi R8 Gen2 Type-4S
• Lamborghini Huracan LP580-2, LP610-4, and LP640-4
• Lamborghini Huracan EVO, STO, and Tecnica

Important Notes

• The rails alone do not include fittings or hoses; add the 20-0866-PK or source your own
• Leave clearance around any port carrying a regulator, gauge, or pulse damper; the right rear ports are Radium's suggested location
• Reusing the OEM pressure sensor with the bare rails requires adapter fittings 14-0119 and 14-0359
