Radium Fuel Rail Plumbing Kit | GM Vortec 8100 L18 Big Block (20-1062 / 20-1162)

GM changed the 8.1's fuel system mid-life. Buy the kit that matches your year, not your truck.

The Radium Engineering fuel rail plumbing kits for the GM Vortec 8100 L18 big block supply everything needed to plumb the 20-0862 fuel rails into the factory system. Both adapt to the OEM feed line through an SAE quick connect and run an 8AN crossover line around the rear of the engine joining the two rails, with 8AN ORB plugs for every unused port and a thermal insulation sleeve on the hose. Radium's own phrasing is that nothing else is required.

Choose Your Kit

• 01-03, return style (20-1062): adds a 0-100psi gauge and direct mount adjustable regulator on the LH rail. The OEM return SAE quick connector attaches straight to the regulator outlet.
• 04-10, returnless (20-1162): adds an FPD-R direct mount fuel pulse damper on the LH rail to stabilise pressure.

What You'll Feel

• A complete rail install without fabricating lines or hunting fittings
• Adjustable fuel pressure on return style trucks, damped pressure on returnless
• Factory feed and return connections retained through proper SAE swivel adapters
• Every unused rail port properly plugged

Features

• SAE quick connect adapter for the OEM feed line

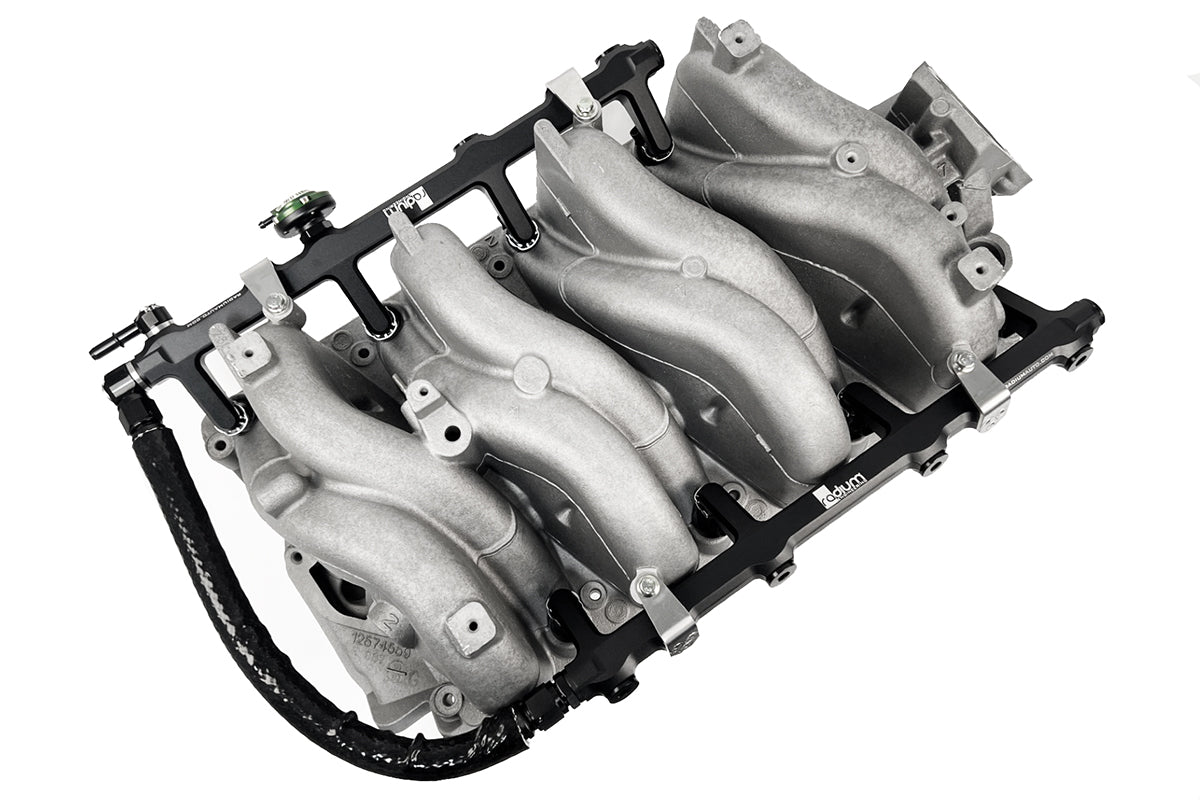

• 8AN crossover fuel line routing around the rear of the engine
• 0-100psi gauge and direct mount regulator (01-03 kit)
• FPD-R direct mount pulse damper (04-10 kit)
• 1/2in EFI hose with thermal insulation sleeve and 5/32in vacuum hose
• Seven or eight 8AN ORB plugs depending on version
• Swivel adapter fittings for the OEM SAE connections

The Details

The split is not cosmetic. The 01-03 trucks run a return style fuel system, so that kit carries a regulator and gauge and ties the OEM return line to the regulator outlet. The 04-10 trucks are returnless, where an adjustable regulator has nothing to return to, so that kit substitutes an FPD-R pulse damper to steady pressure instead. Fitting the wrong one leaves you either with a regulator you cannot plumb or without the pressure control you expected.

Both kits are built specifically around the Radium 20-0862 rails, which are sold separately, and both include the swivel fittings needed to mate cleanly to the factory SAE quick connects.

Kit Includes

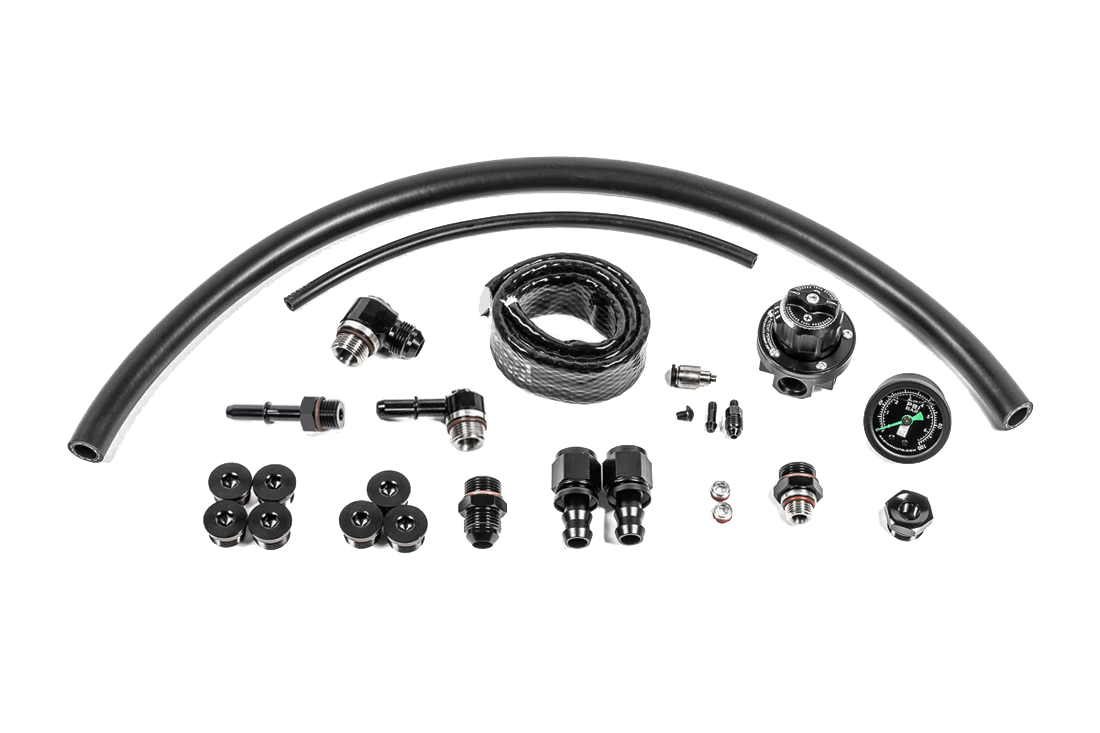

• 01-03 kit: 0-100psi gauge, direct mount regulator, 5/32in vacuum hose, 1/2in EFI hose, thermal insulation sleeve, 8AN ORB to 1/8in NPT fitting, 7x 8AN ORB plugs, 8AN ORB to 8AN male fitting, 2x 1/8in NPT plugs, 2x PushLok hose ends, 8AN ORB to 6AN ORB swivel union, 6AN ORB to 5/16in SAE swivel, 8AN ORB to 8AN male swivel, 8AN ORB to 3/8in SAE swivel

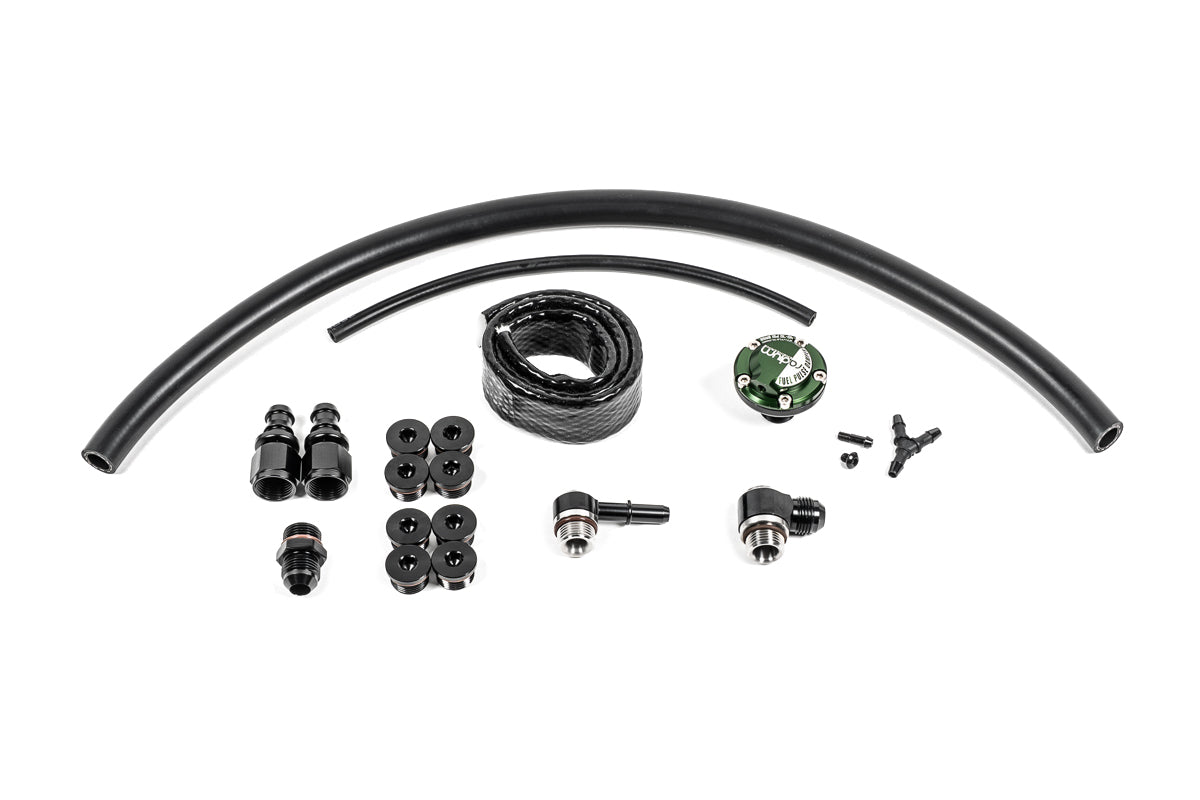

• 04-10 kit: FPD-R direct mount pulse damper, 5/32in vacuum hose, 1/2in EFI hose, thermal insulation sleeve, 8x 8AN ORB plugs, 8AN ORB to 8AN male fitting, 2x PushLok hose ends, 8AN ORB to 8AN male swivel, 8AN ORB to 3/8in SAE swivel
• NOT included: the fuel rails

Applications

• 20-1062: 2001-2003 GM Vortec 8100 L18, return style fuel system
• 20-1162: 2004-2010 GM Vortec 8100 L18, returnless fuel system

Important Notes

• Requires the Radium 20-0862 fuel rails, sold separately
• Match the kit to your model year and fuel system type; the two are not interchangeable
