Radium Fuel Rail Plumbing Kit BMW S54 E46 M3 20-0070-PK

Vendor:Radium Engineering

Radium Fuel Rail Plumbing Kit | 2001-2006 BMW E46 M3 S54 (20-0070-PK)

SKU: 20-0070-PK

$85.45
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

The S54 keeps its regulator under the car. This kit plumbs the Radium rail to it without reinventing the fuel system.

The Radium Engineering fuel rail plumbing kit for the BMW S54 connects the Radium 20-0070-02 fuel rail to the factory fuel system, hooking up to the OEM feed line and the under-car regulator. It supplies the plugs, adapters, and PTFE feed hose needed to finish the install, so the rail bolts on and plumbs up without custom hose work. E85 compatible throughout.

What You'll Feel

  • The Radium rail plumbed to the factory system with no fabrication
  • The under-car regulator retained rather than replaced
  • Every unused rail port correctly plugged
  • PTFE feed hose that handles E85 without permeation

Features

  • PTFE fuel feed hose
  • SAE adapter to attach to the factory regulator
  • 6AN male adapter
  • 8AN ORB plug and 3/8in NPT plug for the unused rail ports
  • E85 compatible

The Details

Read the fitment carefully, because it is narrower than the rail's. The 20-0070-02 fuel rail bolts onto any S54, covering the 2001-2006 M3, the 2001-2002 Z3 M Coupe and Roadster, and the 2006-2008 Z4 M Coupe and Roadster. This plumbing kit, by contrast, is only compatible with the E46 M3, because it is built around that car's factory feed line and under-car regulator location. Z3 M and Z4 M owners running the Radium rail need to source their own plumbing.

The kit assumes you are keeping the factory regulator. If you would rather delete it, a Radium direct mount regulator (20-1623-0X) installs in the front rail port instead, and this kit is not the right path.

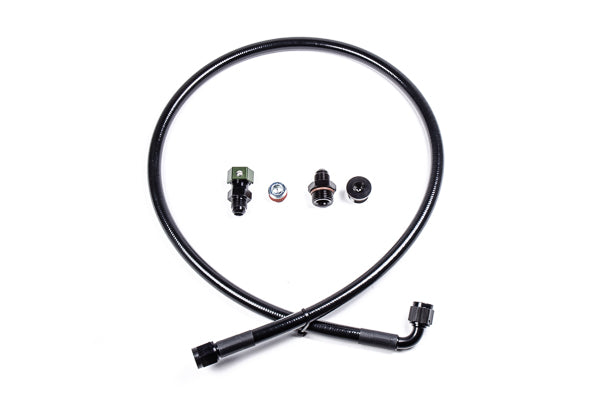

Kit Includes

  • 1x PTFE fuel feed hose
  • 1x SAE adapter for the factory regulator
  • 1x 6AN male adapter
  • 1x 8AN ORB plug
  • 1x 3/8in NPT plug
  • NOT included: the fuel rail itself

Applications

  • 2001-2006 BMW E46 M3 (S54) with the Radium 20-0070-02 fuel rail

Important Notes

  • ONLY compatible with the E46 M3, despite the rail fitting Z3 M and Z4 M as well
  • Requires the Radium 20-0070-02 fuel rail, sold separately
  • Intended for use with the factory under-car fuel pressure regulator
