Radium Fuel Rail | Ford Falcon Barra BA / BF / FG Turbo and FG Non Turbo (20-1536)

One rail, four Barra variants, and the right brackets in the box for whichever one you have.

The Radium Engineering fuel rail for the Ford Barra is CNC machined from extruded 6063 aluminum, black anodized and laser etched, with a large 0.69in centre bore for flow. Different mounting brackets are provided so a single part number covers all Barra variants: BA Turbo, BF Turbo, FG Turbo, and FG non turbo.

What You'll Feel

• Flow capacity that keeps up with a boosted Barra
• Factory injectors retained, with the OEM retaining clips still usable
• 8AN ORB ports for a regulator, gauge, or pulse damper
• The correct brackets for your variant in one box

Features

• CNC machined extruded 6063 aluminum, black anodized and laser etched
• Large 0.69in centre bore
• Ports tapped 8AN ORB
• 14mm ID injector bores accepting factory injectors
• Provisions for the OEM injector retaining clips
• Mounting brackets for BA, BF, FG Turbo and FG non turbo variants
• Compatible with all fuel types including E85

The Details

This part supersedes the older split-by-variant approach. Radium previously sold the Barra rail as three separate SKUs with variant-specific brackets: 20-0536-01 for BA-BF Turbo, 20-0536-02 for FG Turbo, and 20-0536-03 for FG non turbo. The 20-1536 consolidates them, shipping the different brackets together so one part number covers the range.

On injectors, Radium states only that factory or OEM-equivalent units are required and will not specify dimensions further; consult your injector supplier if upgrading.

For a complete install, the 20-0536-PK plumbing kit suits all Radium Barra rails. It uses 3/8in EFI fuel hose, connects to the factory fuel pipes, and includes a direct mount adjustable fuel pressure regulator, gauge, SAE and AN adapter fittings, and stainless EFI clamps. Note the fuel pulse damper shown in Radium's photos is not part of that kit.

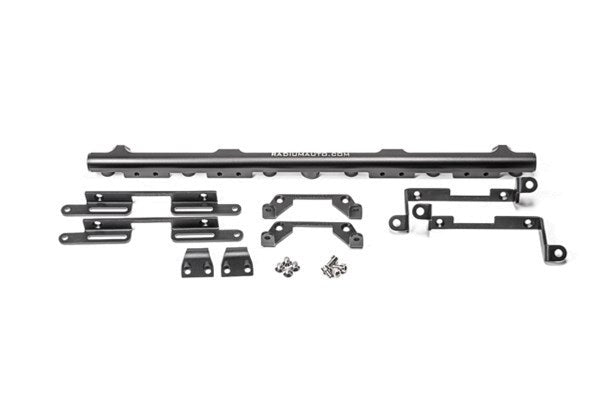

Kit Includes

• Black anodized laser etched fuel rail
• Mounting brackets for the Barra variants
• Black anodized feed hose clamps
• Stainless steel mounting hardware
• NOT included: AN fittings, plumbing kit, fuel pulse damper, and fuel injectors

Applications

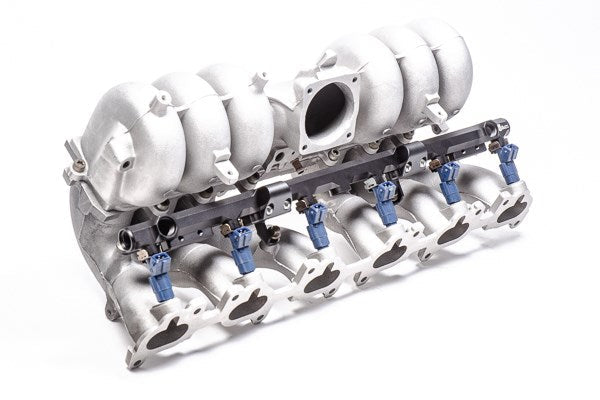

• Ford Falcon BA Turbo Barra
• Ford Falcon BF Turbo Barra

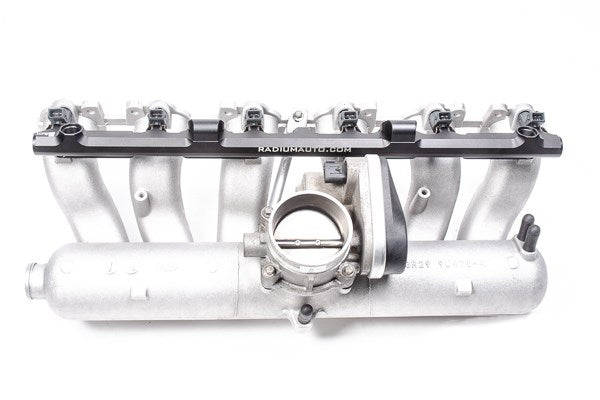

• Ford Falcon FG Turbo Barra

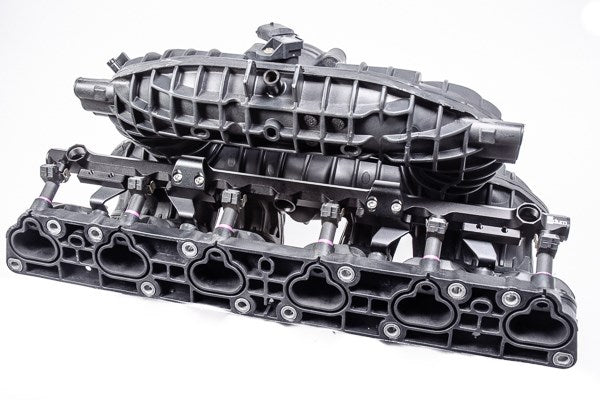

• Ford Falcon FG non turbo Barra

Important Notes

• Factory or OEM-equivalent injectors required
• Fittings and plumbing kit sold separately
