Radium Fuel Rail BMW M50 M52 M54 S50 S52 20-0770

Vendor:Radium Engineering

Radium Fuel Rail | BMW M50 M52 M54 S50 S52 (20-0770)

SKU: 20-0770

$189.95
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

One rail covers the whole M5x and S5x family, and it keeps your factory injectors.

The Radium Engineering fuel rail for the BMW M50, M52, M52TU, M54, M56, S50, and S52 is a bolt-on upgrade over the restrictive OEM rail, CNC machined from extruded 6063 aluminum, black anodized and laser etched. The injector bores are 14mm ID exactly like the factory rail, so OEM injectors carry straight over, and provisions for the OEM injector retaining clips are built in. Three 8AN ORB ports, one at each end and one in the center, open the door to proper AN plumbing. Compatible with all fuel types including E85.

What You'll Feel

  • Flow capacity that stops being the limit as injectors and boost grow
  • Three ORB ports for a regulator, gauge, or pulse damper wherever they fit
  • A bolt-on install that reuses factory injectors and retaining clips
  • One rail that covers six engine families rather than an engine-specific part

Features

  • CNC machined extruded 6063 aluminum, black anodized and laser etched
  • Three 8AN ORB threaded ports: one center, one at each end
  • 14mm ID injector bores matching the OEM rail
  • Provisions for OEM injector retaining clips
  • Engine-specific mounts included: billet aluminum for M50/S50 and M52/S52, polished stainless for M52TU/M54/M56
  • Compatible with all fuel types including E85

The Details

This is an upgrade rail, so injectors must be OEM or dimensionally equivalent: same height, same upper and lower O-ring diameters and styles. Radium does not recommend injector brands or flow rates; ask your tuner. No fittings are included, and ORB fittings are required in those ports, chosen to suit your hose and accessories. Leave clearance around the ports if you plan to fit a regulator, gauge, or damper, since those need space. The center port accepts a Radium FPD-R or FPD-XR pulse damper, and a DMR regulator fits either end. For the M54's returnless fuel system, the 20-0807-PK plumbing kit connects this rail to the factory feed line.

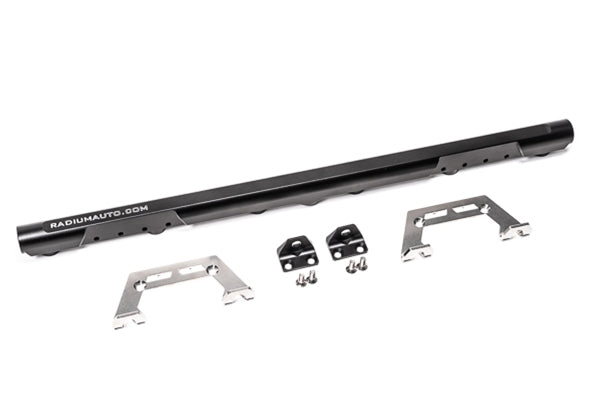

Kit Includes

  • Black anodized laser etched fuel rail
  • Engine-specific mounting hardware
  • NOT included: AN fittings, fuel injectors, regulator, gauge, and pulse damper

Applications

  • BMW M50, M52, M52TU, M54, M56, S50, and S52 engines
  • Includes the North American S50B30US

Important Notes

  • NOT compatible with the ITBs found on the non-US S50B30 and S50B32
  • NOT compatible with OEM M56 coupling-type fuel injectors
  • All fittings sold separately
