Radium Fuel Rail and Plumbing Kit | VW Golf GTI / Jetta GLX GLI 2.8L 24V VR6 (20-0878 / 20-0878-PK)

Dual bores instead of one, and 12 percent more flow area than an 8AN rail gives you.

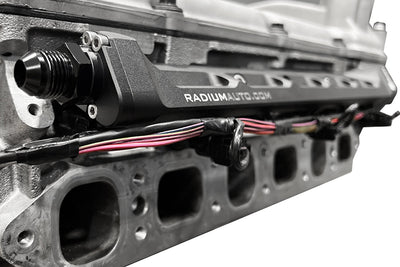

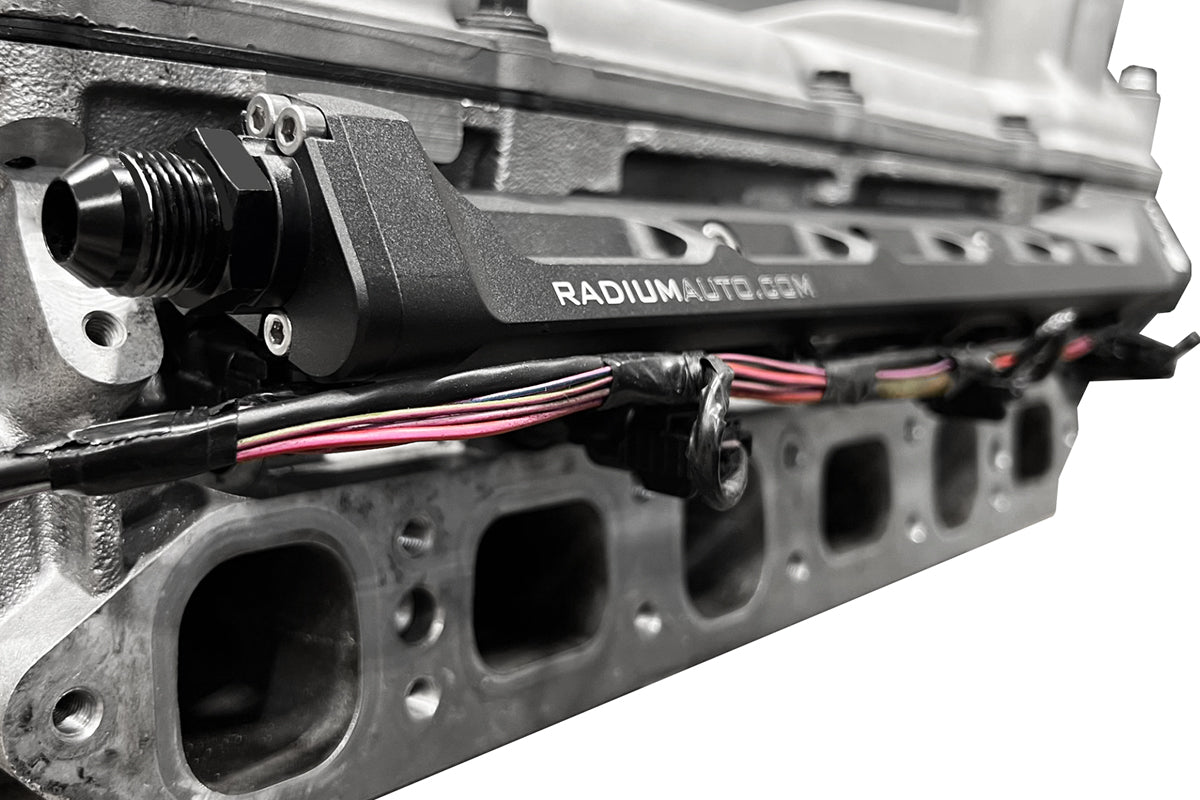

The Radium Engineering fuel rail for the VW 2.8L 24V VR6 is machined with dual 3/8in (6AN) internal bores that connect internally to all six injectors. Combined, those two bores give 12 percent more flow area than a single 1/2in (8AN) bore, which is how it supports serious power without growing in size. Because the rail is machined low profile, it clears the OEM intake manifold.

Choose Your Part

• Fuel rail (20-0878): rail and mounting hardware
• Fuel rail plumbing kit (20-0878-PK): replaces everything downstream of the OEM SAE quick connect hard lines, including an MPR multiport regulator and gauge

What You'll Feel

• More flow area than an 8AN rail in a package that still clears the factory manifold
• Fuel pressure you can calibrate and monitor rather than guess at
• A complete downstream fuel system when paired with the plumbing kit
• E85 compatible hose throughout

Features

• Lightweight anodized aluminum construction
• Dual 3/8in (6AN) internal bores feeding all six injectors
• 12 percent larger internal flow area than a single 8AN bore
• Single 8AN ORB port at each end
• Low profile machining for OEM intake manifold clearance
• No special tools required for installation
• Compatible with all alternative fuels

The Details

This is an upgrade rail, not a top feed conversion. OEM or OEM-equivalent injectors must be used: same height, with upper and lower O-rings matching the factory diameters and styles. Radium does not make injector recommendations, so consult your tuner for flow rate and the injector manufacturer for a part number with the correct dimensions.

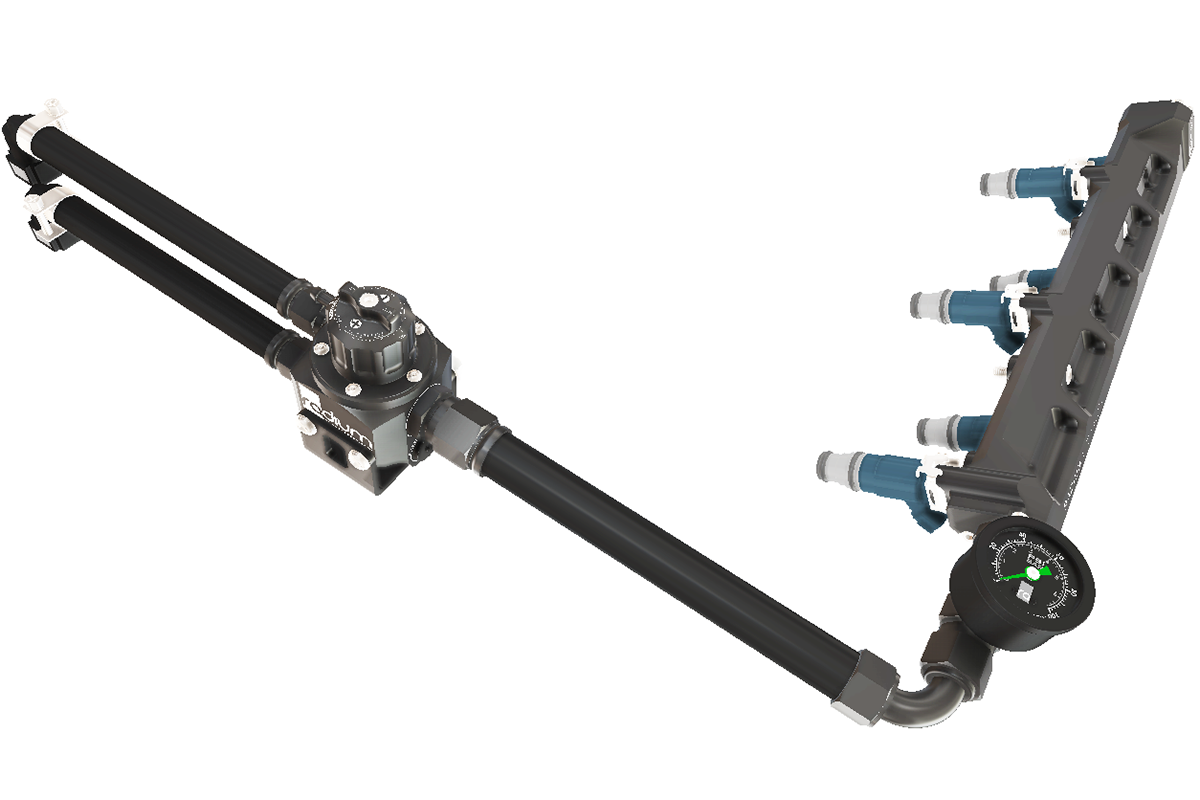

The plumbing kit is the more complete route. It replaces every OEM component downstream of the SAE quick connect hard lines in the engine bay and runs fuel through a Radium MPR multiport regulator, 1:1 vacuum referenced into a dead head rail, with a 0-100psi gauge for calibration. PushLok hose ends with EFI hose mean the routing can be tailored to the car, and plugs are supplied for all unused ports.

Kit Includes

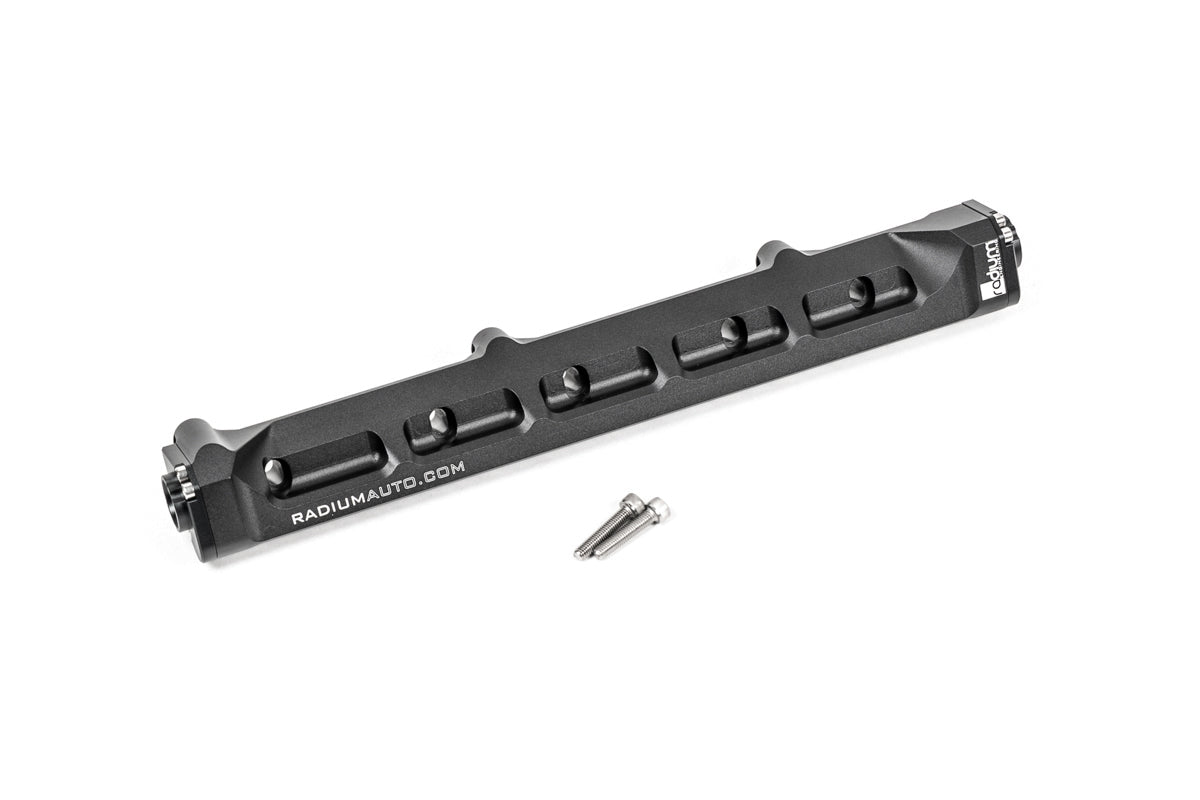

• 20-0878: anodized billet fuel rail and stainless mounting hardware

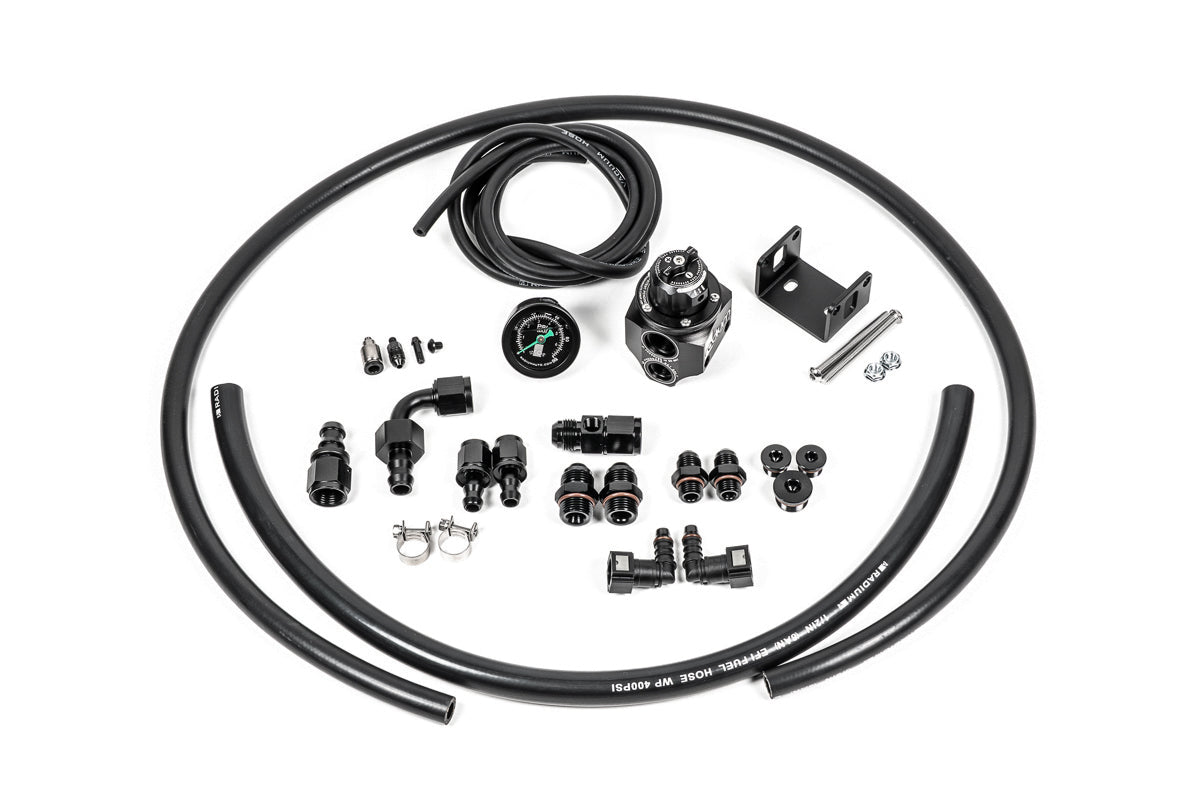

• 20-0878-PK: multiport fuel pressure regulator, 0-100psi gauge, 6AN and 8AN ORB plugs, 8AN and 6AN ORB to male fittings, 6AN and 8AN PushLok hose ends, 5/16in SAE to 3/8in barb fittings, inline 8AN to 1/8in NPT tee, 3/8in and 1/2in EFI hose, 5/32in vacuum hose, EFI hose clamps, stainless hardware
• NOT included: fuel injectors

Applications

• 2002-2005 VW Golf GTI
• 2001-2004 VW Jetta GLX
• 2001-2004 VW Jetta GLI

Important Notes

• Upgrade rail: OEM or OEM-equivalent injectors required
• Leave clearance around any port carrying a regulator, gauge, or pulse damper
