Radium Fuel Pump Outlet Adapters (20-0298/20-0599)

A hose barb clamped inside a fuel tank is the connection everyone forgets until it fails.

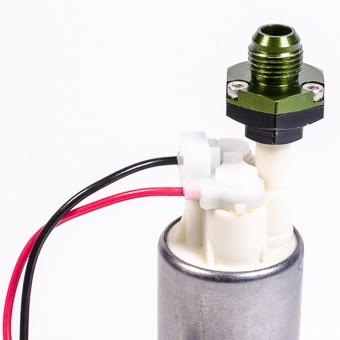

High-flow in-tank pumps ship with plastic barbed outlets, and serious builds deserve better than a worm clamp on plastic. The Radium Engineering Fuel Pump Outlet Adapter converts the hose-barbed outlet of many popular pumps to a proper 6AN male connection: two billet aluminum halves clamp around the pump outlet with stainless steel bolts, a stainless retainer holds the assembly, and an FKM O-ring seals against the barb for a leak-free, E85-compatible joint. Two heights are offered, with the 20-0298 (green upper fitting) built as short as possible without sacrificing flow, sitting 0.42" shorter than the 20-0599 (black upper fitting) for tight hanger and surge tank packaging.

What You'll Feel

• A sealed, serviceable AN connection where a clamped barb used to be the weak link
• Packaging freedom in hangers and surge tanks, with two heights to clear what needs clearing
• E85 confidence from FKM sealing and all-metal construction
• Clean 6AN plumbing straight off the pump, no barb-to-AN improvisation

Features

• Converts the hose-barbed outlet of compatible fuel pumps to 6AN male
• Two billet aluminum halves secured by stainless steel bolts clamping around the pump outlet
• Stainless steel retainer and FKM O-ring for a leak-free seal; all components E85 compatible
• 20-0298: green upper fitting, shortest profile without flow sacrifice, 0.42" shorter than 20-0599
• 20-0599: black upper fitting, taller profile for installations with room to spare
• Includes bolts, O-ring, and shims

The Details

The clamshell design is what makes this work on a molded plastic outlet: rather than threading onto anything, the two halves capture the barb's ridges mechanically while the O-ring does the sealing, which is why Radium's one prerequisite matters so much. Before purchasing, confirm the pump outlet's plastic hose barb ridges are in excellent condition, since damaged or out-of-round ridges may prevent the O-ring from obtaining a positive seal. Height selection is pure packaging: inside a tight hanger or surge tank lid, the 20-0298's shorter stack can be the difference between fitting and not. One pump-specific note from Radium: on the brushless Ti Automotive E5LM, the electrical connector must be installed before this adapter goes on. Fuel pump not included.

Kit Includes

• 1x Billet aluminum 2-piece outlet adapter (selected height) with 6AN male upper fitting
• Stainless steel bolts and retainer, FKM O-ring, and shims
• Fuel pump NOT included

Applications

• Walbro/Ti Automotive F90000267, F90000274, F90000285
• Deatschwerks DW400
• Ti Automotive E5LM brushless (install electrical connector first)
• Verify pump outlet barb ridges are in excellent, round condition before ordering
