Radium Fuel Pump Hanger | Mitsubishi Evo 1-6 (20-1330)

Drop this hanger in once and you never drop the tank again.

The Radium Engineering fuel pump hanger for the Mitsubishi Evo 1-6 replaces the factory in-tank assembly with a single pump hanger that accepts anything from a 340LPH brushed pump to an 810LPH brushless unit, two wire or three and four wire alike. The OEM fuel level sensor and low fuel indicator are reused, so the gauge cluster keeps working exactly as it did. After it is installed, the pump and sensors are reachable through the OEM access covers, which means no more dropping the tank to service the fuel system.

What You'll Feel

• Pump and sensor service through the access covers instead of dropping the tank
• Stable rail pressure from the new high flow PRV venturi jet pump, which bypasses excess return line pressure
• A working fuel gauge and low fuel light, since both OEM sensors are retained
• Headroom from 340LPH to 810LPH on a single pump, brushed or brushless
• Fittings machined low enough to clear the surrounding tank area

Features

• Single pump drop-in hanger for Evo 1 through 6
• Brushed and brushless pump capable, 2-wire, 3-wire, and 4-wire
• High flow PRV venturi jet pump with built-in pressure relief valve
• 8AN ORB (3/4in-16) female pump outlet with low profile 8AN male fitting provided
• 6AN ORB (9/16in-18) female return inlet with low profile 6AN male adapter provided
• Anti-rotation stainless electrical studs, hermetically sealed, with non-conductive acorn nuts
• ETFE insulated in-tank wiring
• Gasoline, methanol, and E85 compliant

The Details

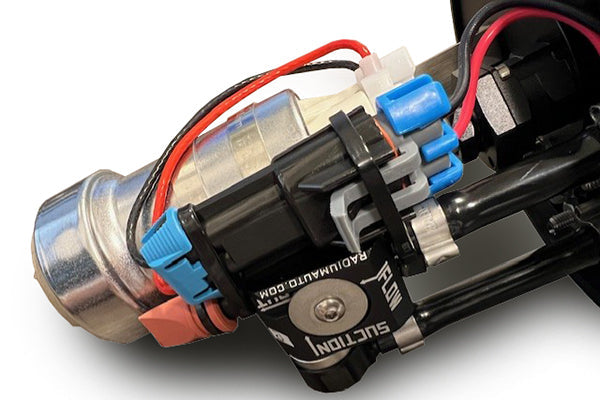

Starvation protection comes from the OEM collector bowl, whose labyrinth holds fuel during aggressive driving. That bowl is constantly replenished from two sources: the pressure regulator return and the crossover hose, which pulls from the passive side of the saddle tank driven by the PRV venturi jet pump. The pressure relief function is the notable upgrade here, since it bypasses high return line pressure to keep rail pressure stable rather than letting the jet pump become a restriction. Single pump installs can reuse the OEM fuel pump wiring, though upgrading it is recommended so the pump sees full voltage; a Radium DIY wiring kit covers that.

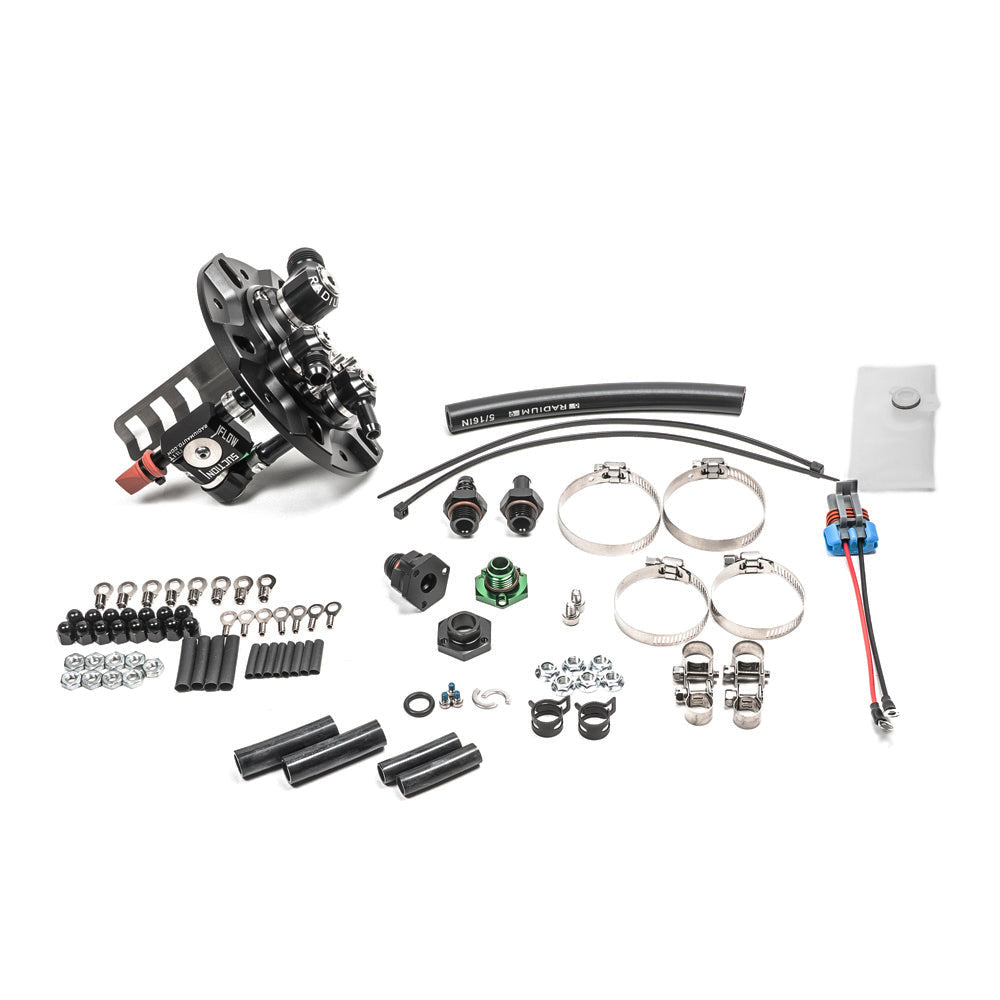

Kit Includes

• Partially assembled fuel pump hanger
• All components to install 1 compatible fuel pump
• Electrical hardware kit for external wiring atop the hanger
• Low profile 8AN and 6AN fittings
• NOT included: fuel pump, connection kit, and plumbing kit

Applications

• Mitsubishi Lancer Evolution I, II, III, IV, V, and VI

Important Notes

• A fuel hanger connection kit is required to reach the OEM hard lines: 20-1331 for Evo 1-5, or 20-1332 for Evo 6
• Verified pumps include AEM 50-1220, Walbro F90000267/274/285/295, Protec 11928, Fuelab 49614, and Deatschwerks DW400, DW440, and DW810
