Radium Fuel Pump Hanger | 2022+ Subaru BRZ / Toyota GR86 (20-1074)

The factory return line runs through a venturi jet pump that restricts flow. On a built FA24 that restriction becomes your fuel pressure problem.

The Radium Engineering fuel pump hanger for the 2022 and newer Subaru BRZ and Toyota GR86 completely replaces the factory in-tank fuel pump module and allows one or two aftermarket fuel pumps to be used. Enough components are included for either configuration. The OEM fuel level sender is retained, so factory gauge functionality carries over.

What You'll Feel

• Fuel held around the pump inlets instead of sloshing away under cornering
• Room to run one pump now and a second later without a new hanger
• A working fuel gauge, because the OEM sender stays
• Brushless pump capability if that is the route you want

Features

• 1-piece anodized aluminum collector box with a 355 LPH 1-way fill valve that admits fuel but does not let it back out
• Venturi jet pump siphon
• 8AN ORB to 8AN male pump-out fitting
• 6AN ORB to 6AN male return fitting
• Single merged fuel pump outlet
• High current electrical connections
• Anodized fuel level sender mount
• Twin pump and brushless pump compatible
• Stainless hardware and clamps
• Alternative fuel compatible

The Details

The collector box is the heart of it. A 1-piece anodized aluminum design keeps fuel trapped around the pump inlets, and the 355 LPH one-way fill valve in the base lets fuel in without letting it escape. The box is then constantly replenished by fuel returning from the pressure regulator, so the pump stays fed even at low tank levels and through long corners.

Confirm your generation before ordering. The 20-1074 is specific to the 2022 and newer BRZ and GR86 fuel tank. The earlier 12-21 GT86, 12-20 BRZ, and 12-16 FR-S use the 20-1073 instead; the two are not interchangeable.

Pump compatibility covers Ti Automotive Walbro F90000267, F90000274, and F90000285, plus brushless options including the Deatschwerks DW440, Fuelab 49614, and Protec 11928. Pumps are a separate purchase.

On the same platform, the 20-0911-FL PCV and 20-0902-FL CCV catch can kits handle the crankcase side, which matters on a direct injected engine with no port injectors washing the valves.

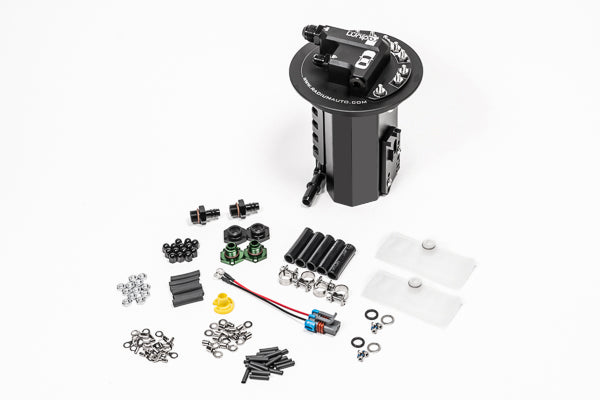

Kit Includes

• Fuel pump hanger assembly with 1-piece collector box and 1-way fill valve
• 8AN ORB pump-out and 6AN ORB return fittings
• Electrical connections and anodized level sender mount
• Stainless hardware and clamps
• Components for one or two pump configurations
• NOT included: fuel pumps

Applications

• 2022 and newer Subaru BRZ
• 2022 and newer Toyota GR86

Important Notes

• Fuel pumps sold separately
• The 20-1074 is specific to 2022+ tanks; 12-21 GT86, 12-20 BRZ, and 12-16 FR-S require the 20-1073
