Radium Fuel Pump Hanger | 2002-2007 Subaru WRX/STI & 1994-1999 Legacy (20-0340-00/2-00)

The GC and GD tanks starve on track, and the fix starts with the hardware holding the pump.

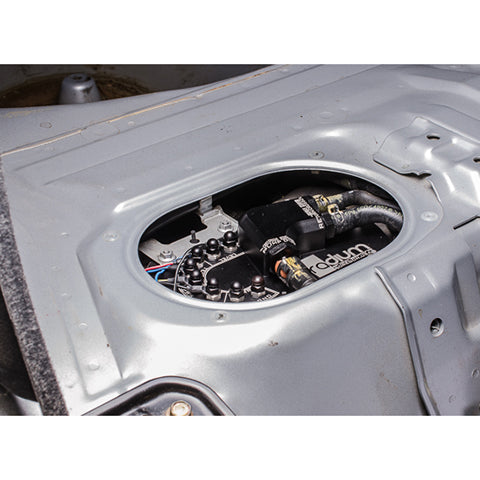

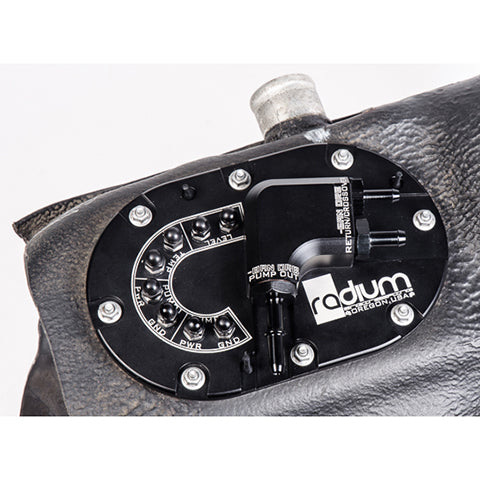

The Radium Engineering Fuel Pump Hanger for early Subarus is a CNC machined, laser etched and anodized drop-in assembly running 1 or 2 aftermarket high-flow pumps in the factory tank, using the OEM gasket and hardware while retaining the fuel level sender and temperature sensors. The pumps merge into a single 8AN ORB outlet, the crossover and return run 6AN ORB, and OEM hose adapters for every model year plus 6AN male fittings for aftermarket lines are all in the box. Choose 20-0340-00 for Walbro GSS342 or AEM 50-1200 class pumps, or 20-0342-00 for Walbro F90000267/274/285. This is a hanger, not a surge tank, and its collector box is the reason that distinction barely matters. Pumps sold separately.

What You'll Feel

• Steady fuel through hard cornering, with the 355 lph one-way fill valve trapping fuel around the pump inlets
• Single or dual pump capability scaling from bolt-ons to full E85 builds
• Plumbing that meets your car where it is: barbs for early cars, SAE quick disconnects for mid and late years, 6AN for aftermarket lines
• Factory level sender and temperature sensor function fully retained
• Sealed high-current electrical through stainless studs, wiring tucked under the OEM cover plate

Features

• CNC machined aluminum, laser etched and anodized; drops into the factory tank with the OEM gasket and hardware
• 1 or 2 pumps merging into a single 8AN ORB outlet; 6AN ORB crossover and return ports
• Streamlined anodized collector box with 355 lph one-way fill valve, optimized to work in ALL compatible gas tanks (unlike the 04-07 STI OEM variation)

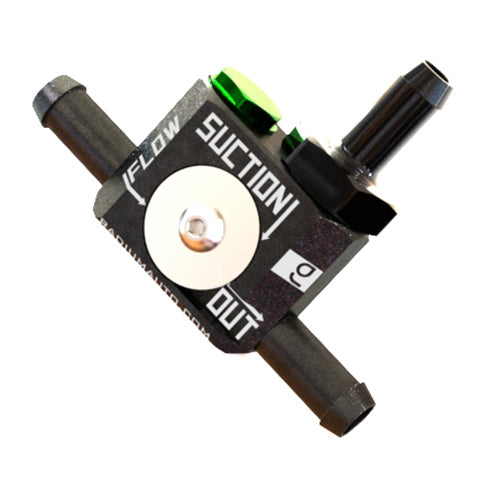

• Venturi jet pump with integrated pressure relief valve, optimized for high flow pumps

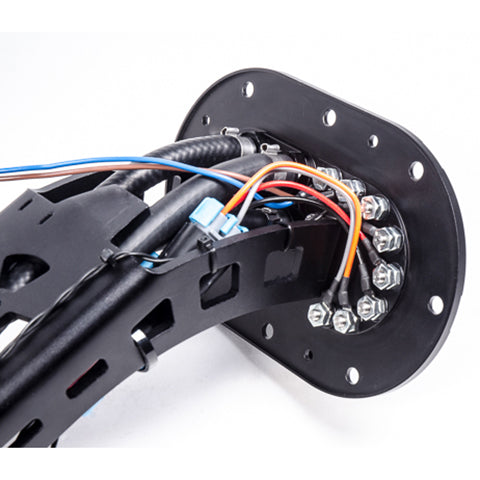

• ETFE insulated in-tank wiring, sealed stainless studs, non-conductive acorn nuts, stainless crimp terminals and heat shrink for external connections
• E85 compatible; OEM hose adapter fittings for all listed model years included

The Details

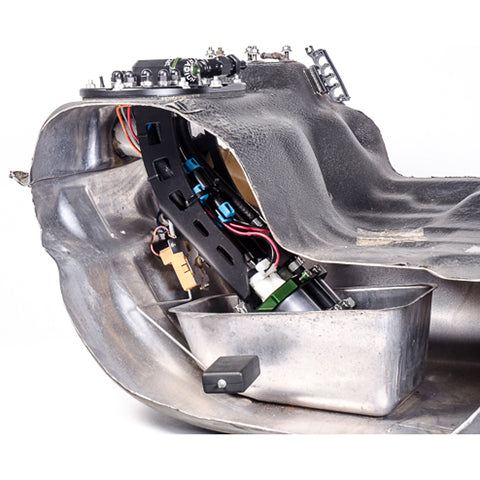

The collector box is the quiet star. Fuel from the regulator return and the crossover hose all feeds into it, the one-way fill valve acts as a trap door keeping the pumps submerged during aggressive driving, and Radium optimized the box geometry to function in every compatible tank rather than only the 04-07 STI's baffled version. Single pump installs can reuse the OEM fuel pump controller, though Radium recommends upgrading the wiring since high-flow pumps draw current the factory gauge wire was never sized for, and one Radium DIY wiring kit per pump completes the job. Pump selection splits the two versions by physical format: GSS342/AEM class for -00, Walbro 450 DCSS class for -02. One hard exclusion from Radium: not compatible with the JDM WRX STI Spec C.

Kit Includes

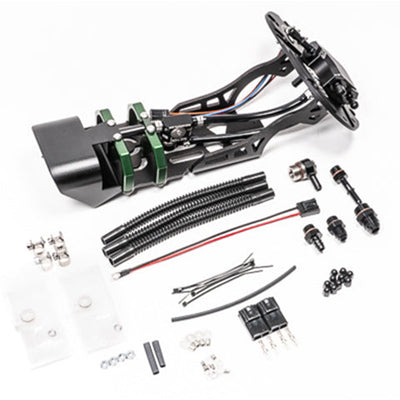

• 1x Fuel pump hanger with anodized laser etched plate, collector box with check valve, and venturi jet pump with PRV
• OEM hose adapter fittings for all listed model years (barb and SAE quick disconnect styles) plus 6AN male fittings
• Electrical hardware: sealed stainless studs, ETFE wiring, crimp terminals, heat shrink
• Stainless steel hardware; fuel pumps NOT included

Applications

• 1993-2007 Subaru Impreza including 2002-2007 WRX and 2004-2007 STI
• 1997-2008 Subaru Forester, 1989-1999 Legacy, 1994-1999 Outback, 2005-2006 Saab 9-2X

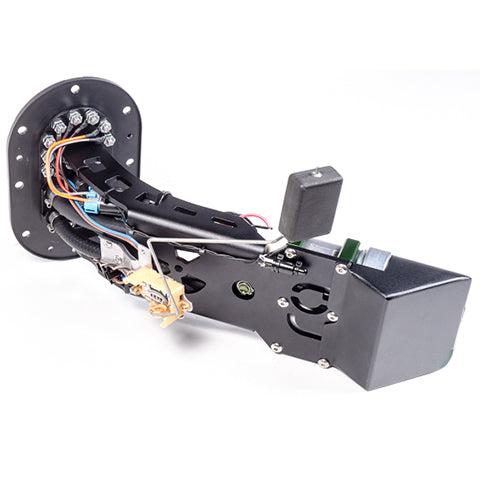

• 20-0340-00: Walbro GSS342, AEM 50-1200 class; 20-0342-00: Walbro F90000267/274/285
• NOT compatible with JDM WRX STI Spec C
