Radium Fuel Pump Hanger | 1990-2005 Acura NSX (20-2790 / 20-2792)

The factory NSX pump was sized for a factory NSX. Everything past that is your problem to solve.

The Radium Engineering fuel pump hanger for the 1990-2005 Acura NSX replaces the stock fuel pump assembly with a drop-in unit built to feed a high output engine. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation. Anodized aluminum construction, compatible with gasoline, methanol, and E85.

Choose Your Version

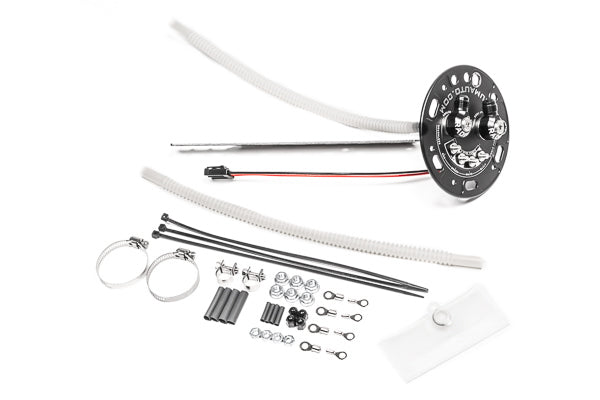

• Fits Walbro GSS342 / AEM 50-1200 (20-2790): the brushed pump package, also suiting pumps of the same physical shape and electrical connector

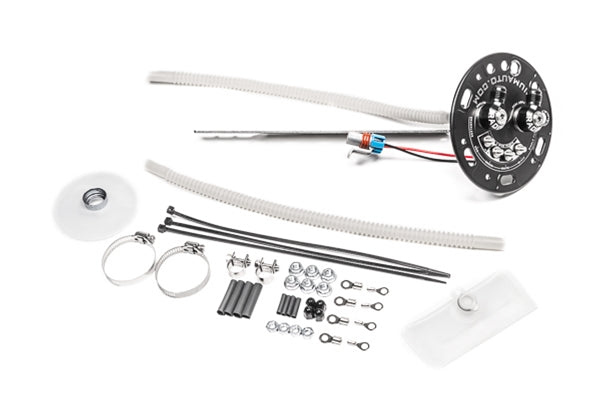

• Fits Walbro F90000267 / 274 / 285 or brushless (20-2792): the high flow and brushless package

What You'll Feel

• Fuel delivery that keeps up as power climbs past what the stock pump can support
• High current handled by proper electrical hardware rather than a factory bulkhead connector
• A path to a second pump later via the matching add-on kit
• A drop-in install with no cutting or drilling

Features

• Drop-in replacement for the stock fuel pump assembly
• Anti-rotation stainless steel electrical studs, hermetically sealed against all standard and exotic fuels
• Non-conductive anodized aluminum acorn nuts preventing accidental shorts
• ETFE insulated in-tank wiring
• Anodized aluminum construction
• Gasoline, methanol, and E85 compliant

The Details

Each hanger is configured for a single pump. Adding a second requires the matching add-on kit: the 20-2796 pairs with this 20-2790 hanger, and the 20-2797 pairs with the 20-2792.

One decision to make before choosing a pump. Across this Radium hanger family, fitting a brushless pump rules out the dual pump add-on, because the extra brushless controller wiring cannot pass through the hanger alongside a second pump. In practice that means brushless is a permanently single pump path, while two conventional pumps remain an option. If a two-pump future matters more to you than brushless capability, choose accordingly now.

On wiring, a single Walbro GSS342 install can typically reuse the OEM fuel pump wiring, though Radium recommends upgrading it so the pump sees full voltage. Beyond a single pump, use a Radium DIY wiring kit for each. To connect the hanger to the factory fuel lines, add the 20-2795 connection kit.

Kit Includes

• Partially assembled fuel pump hanger
• Hardware to install one fuel pump
• Electrical parts kit for wiring at the top hat
• NOT included: fuel pump, dual pump add-on, and connection kit

Applications

• 1990-2005 Acura NSX

Important Notes

• Brushless pump installs cannot use the dual pump add-on due to the extra controller wiring
• The Walbro F90000295 and Ti Automotive E5LM do not have integrated check valves; AEM 50-1230 and 50-1235 likewise. Add a check valve if running a return style system where pressure must hold after shutdown.
• Fuel pump sold separately; some assembly required
