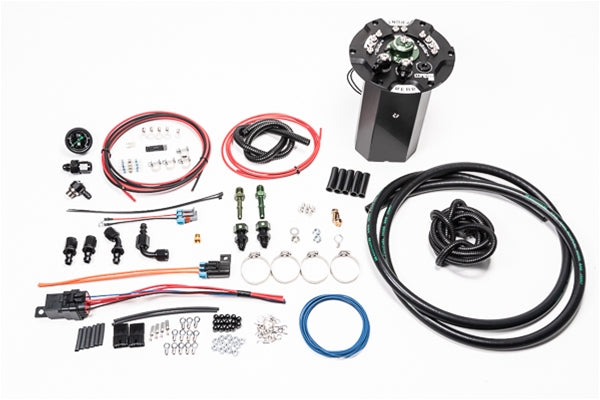

Radium Engineering 350Z FHST fuel hanger surge tank at Tuned By Shawn

Vendor:Radium Engineering

Radium Engineering Fuel Hanger Surge Tank | Nissan VQ35HR & VQ37VHR (20-1830)

SKU: 20-1830

Sale price$712.45Regular price $749.95
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

The Z33's cornering starvation has a GSS342-sized answer too.

Nissan split the 350Z's fuel tank over the driveshaft, and the insufficient baffling makes fuel starvation common when cornering aggressively at or below half a tank. The Radium Engineering Fuel Hanger Surge Tank (FHST) for the Nissan 350Z / Infiniti G35 replaces the factory hanger with an integrated surge tank system, and this 20-1830 version fits the Walbro GSS342 255lph and AEM 50-1200 class pumps, the right-sized choice for strong street builds that do not need 450-class flow. Drop-in installation with factory fuel level function retained. Pumps sold separately.

What You'll Feel

  • Fuel starvation eliminated through the corners that trigger lean stumbles at half tank
  • Track sessions run to low fuel without pressure flicker
  • Right-sized delivery for bolt-on and moderate-power VQ builds
  • A drop-in installation in the factory hanger location
  • Factory fuel gauge behavior preserved

Features

  • Replaces the factory fuel pump hanger with an integrated surge tank system
  • 20-1830 pump compatibility: Walbro GSS342 255lph and AEM 50-1200 class
  • Solves the Z33/V35 saddle-bag tank's baffling shortfall at the source
  • Retains factory fuel level sender function
  • Compatible with all fuel types including E85; pumps NOT included

The Details

Saddle tanks starve sideways: fuel migrates to whichever half the corner loads, and the pump side runs dry with gallons still aboard the far side, which is why pump upgrades alone never fix the Z33. The FHST's surge architecture keeps a full reservoir at the pump regardless of migration, with the GSS342/AEM class covering builds through strong bolt-on territory; forced induction and E85 ambitions step up to the 20-1832 Walbro-450/DW440 version instead. Each installed pump wants a Radium DIY wiring kit so current matches flow, and the platform coverage spans the Z33 350Z and V35 G35 sharing this hanger design.

Kit Includes

  • 1x FHST fuel hanger surge tank assembly
  • Provisions and hardware for the supported pumps
  • Fuel pumps NOT included

Applications

  • 2003-2006 Nissan 350Z (Z33) and 2003-2006 Infiniti G35 (V35, per Radium's platform coverage)
  • 20-1830: Walbro GSS342 / AEM 50-1200 class; 450-class version is 20-1832
