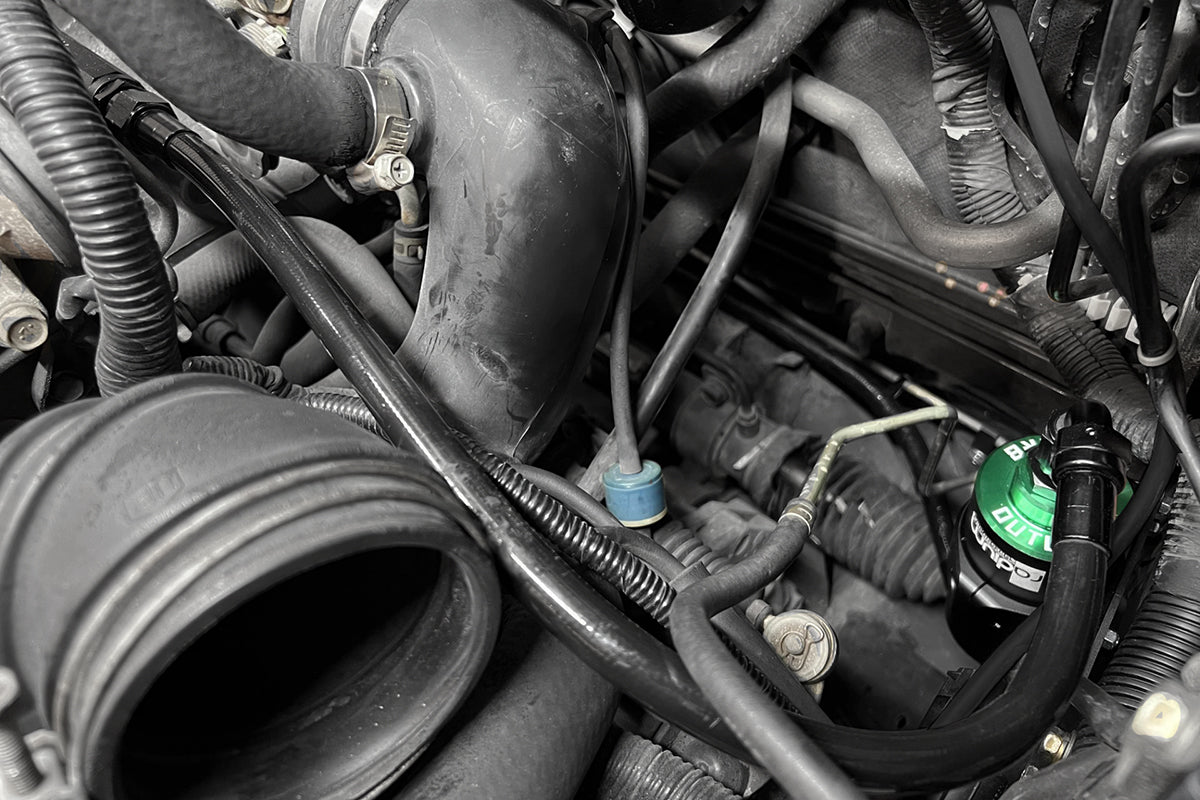

Radium Evo 1-6 plumbing kit fuel filter in OEM location 20-1334

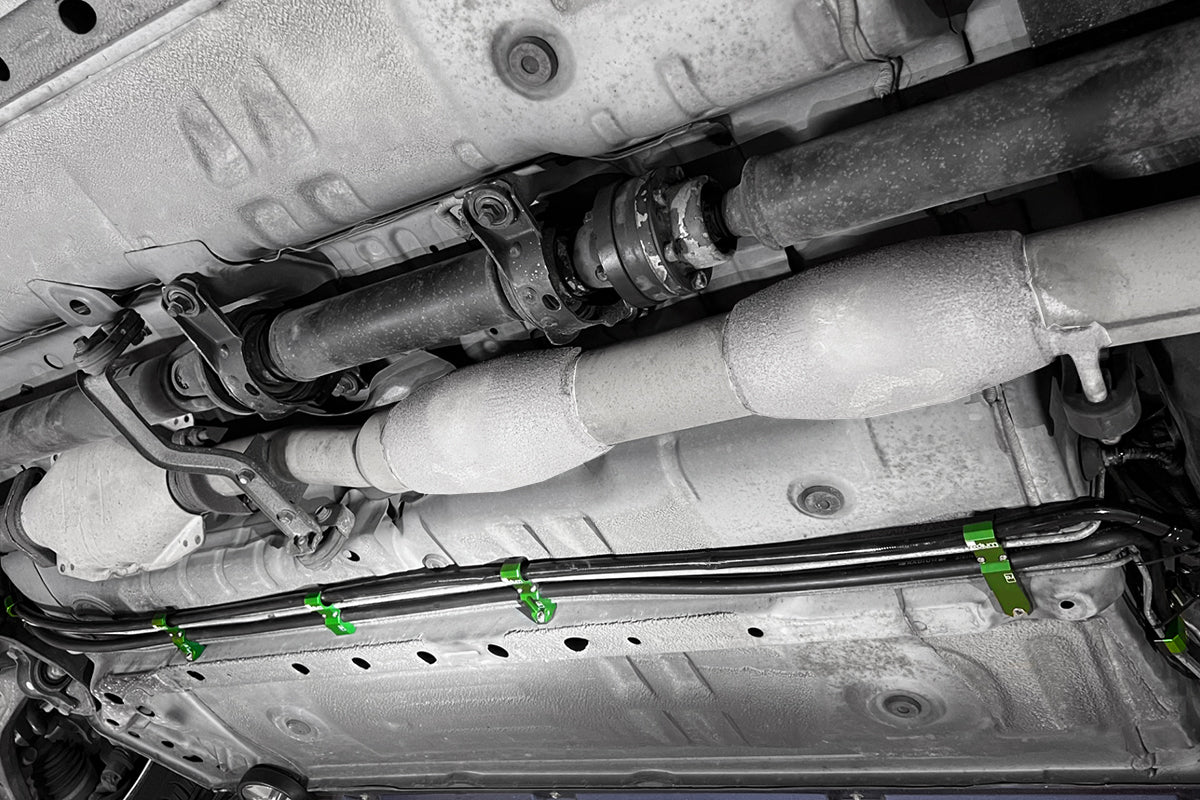

Radium Evo 1-6 plumbing kit PTFE hoses and billet retainers 20-1334

Vendor:Radium Engineering

Radium Fuel Hanger Plumbing Kit | Mitsubishi Evo 1-6 (20-1334-03 / 20-1334-05)

SKU: 20-1334-03

Filter Type
Filter Type: Stainless Filter (20-1334-03)
$683.95
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

This is the kit that runs the length of the car, and it is the one that finishes the system.

The Radium Engineering fuel hanger plumbing kit for the Mitsubishi Evo 1-6 carries fuel from the rear of the car to the engine and back. A long 8AN PTFE line picks up where the connection kit ends, runs the length of the chassis to a Radium high flow filter mounted in the OEM filter location, then a short 8AN PTFE line feeds the inlet of an aftermarket rail. A direct mount regulator and 0-100psi gauge fit the rail outlet, and a 6AN EFI return hose runs all the way back. Every line is secured with billet fuel and brake line retainers.

Choose Your Kit

  • Stainless filter (20-1334-03): stainless filter element
  • Microglass filter (20-1334-05): microglass filter element

What You'll Feel

  • A complete fuel path from tank to rail and back, with only the rail and injectors left to buy
  • Regulator and gauge included rather than sourced separately
  • PTFE feed lines that shrug off E85 and methanol
  • Lines held by billet retainers along the full run instead of zip ties
  • The filter in the OEM location on a proper anodized mount

Features

  • Radium direct mount regulator and 0-100psi fuel pressure gauge
  • High flow fuel filter with anodized mount and clamps
  • Long and short 8AN PTFE feed hoses
  • 6AN EFI fuel return hose
  • Billet fuel and brake line retainers
  • Stainless steel hardware and adapter fittings

The Details

Used together with a connection kit, this plumbing kit provides every fuel system connection on the car; the only things it excludes are the fuel rail and the injectors. That is worth understanding before comparing prices, because the regulator and gauge alone are a meaningful part of the value here. The feed side is PTFE for its resistance to permeation on alcohol fuels, while the return side uses EFI hose, which is the standard arrangement given the return runs at low pressure. Pick the connection kit that matches your chassis: 20-1331 for Evo 1-5, 20-1332 for Evo 6.

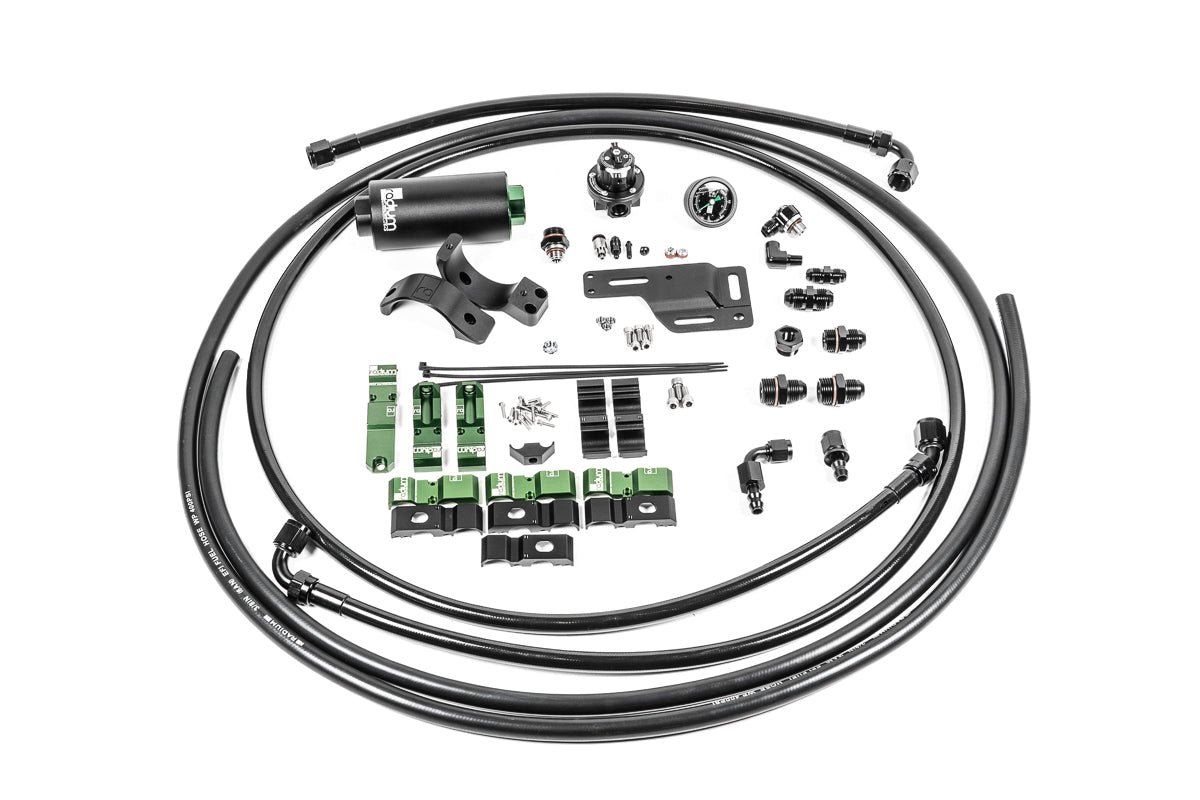

Kit Includes

  • Direct mount regulator and 0-100psi fuel pressure gauge
  • Fuel filter, stainless or microglass depending on selection
  • Anodized filter mount and clamps
  • 8AN PTFE feed hose, long and short
  • 6AN EFI fuel return hose
  • Stainless steel hardware and misc adapter fittings
  • NOT included: fuel rail, fuel injectors, fuel pump hanger, fuel pump, and connection kit

Applications

  • Mitsubishi Lancer Evolution I, II, III, IV, V, and VI

Important Notes

  • Requires a fuel hanger connection kit: 20-1331 for Evo 1-5 or 20-1332 for Evo 6
  • Requires the 20-1330 fuel pump hanger and an aftermarket fuel rail with an 8AN male inlet
