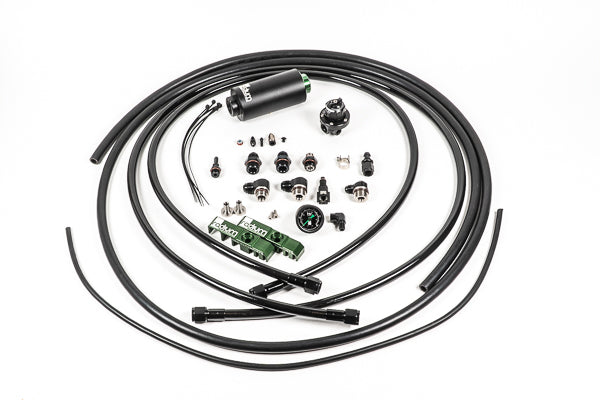

Radium Fuel Hanger Plumbing Kit BMW E36 E46 20-1175-03

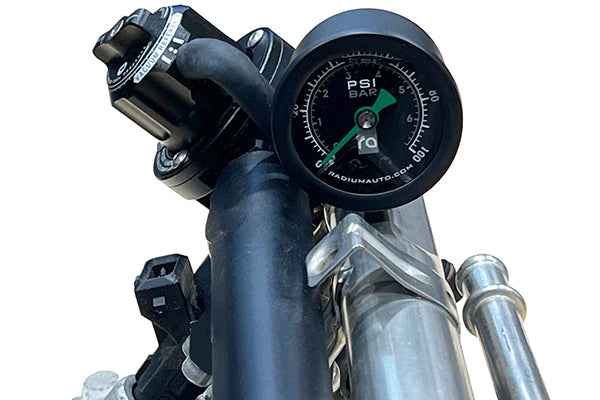

Radium E46 plumbing kit DMR-RA regulator and gauge on rail 20-1175

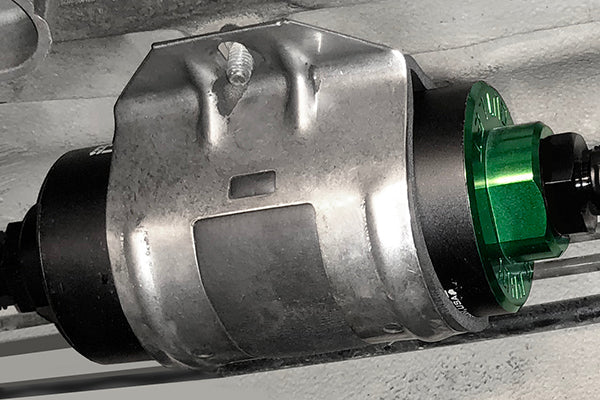

Radium E46 plumbing kit fuel filter installed in OEM location 20-1175

Vendor:Radium Engineering

Radium Fuel Hanger Plumbing Kit | BMW E36 / E46 Including M3 (20-1175-03 / 20-1175-05)

SKU: 20-1175-03

Filter Type
Filter Type: Stainless Filter, 10 Micron (20-1175-03)
$522.45
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

Hanger to rail and back again, with the regulator and gauge already in the box.

The Radium Engineering fuel hanger plumbing kit for the BMW E36 and E46 supplies every line, fitting, and component between a Radium in-tank hanger and the fuel rail. A low profile 8AN male banjo goes on the hanger pump outlet, 8AN PTFE hose runs across the top of the tank and down the underside of the chassis through two billet fuel and brake line retainers, and a billet high flow filter mounts in the OEM location. From there another 8AN PTFE hose runs into the engine bay to the rail, with a DMR-RA direct mount regulator and 0-100psi gauge at the rear of the rail and a 6AN return hose back to the hanger.

Choose Your Kit

  • Stainless filter (20-1175-03): 10 micron stainless element
  • Microglass filter (20-1175-05): 6 micron microglass element for finer filtration

What You'll Feel

  • A complete feed and return system with regulator and gauge included, not sourced separately
  • PTFE feed hose that handles E85 and methanol without permeation
  • Lines properly retained along the chassis on billet retainers
  • The filter in the OEM location rather than improvised somewhere

Features

  • DMR-RA direct mount fuel pressure regulator and 0-100psi gauge
  • Billet high flow fuel filter, 10 micron stainless or 6 micron microglass
  • 8AN PTFE feed hoses, 6AN return hose with SAE quick connect and PushLok hose end
  • Low profile 8AN and 6AN fuel hanger banjo fittings
  • 8AN fuel rail adapter fitting and 8AN filter adapter fittings
  • Two billet fuel and brake line retainers
  • 5/32in vacuum tubing to replace the OEM hard lines
  • Stainless steel hardware and misc adapter fittings

The Details

This same plumbing kit serves both the E36 and E46 Radium hangers, so it is not chassis-specific within that pair. It works best paired with a Radium BMW fuel rail, since the 8AN rail adapter and the rear-mounted regulator assume that layout. Note that the fuel rail itself is not included. New vacuum tubing is supplied to replace the brittle OEM hard lines, which is the kind of detail that saves a return trip under the car.

Kit Includes

  • DMR-RA fuel pressure regulator and 0-100psi gauge
  • Filter with selected element and 8AN filter adapter fittings
  • 8AN and 6AN fuel hanger fittings, 8AN fuel rail adapter fitting
  • 8AN PTFE feed hoses, 6AN return hose, 6AN SAE quick connect, 6AN PushLok hose end
  • Two fuel and brake line retainers, 5/32in vacuum tubing, stainless hardware
  • NOT included: fuel pump hanger, fuel pumps, and fuel rail

Applications

  • BMW E46 with a Radium fuel pump hanger (20-1180), including M3 and M3 CSL
  • BMW E36 with a Radium fuel pump hanger

Important Notes

  • Requires a Radium in-tank fuel pump hanger; the fuel rail is sold separately
  • Best paired with a Radium BMW fuel rail given the 8AN rail adapter and rear regulator layout
