Radium Fuel Hanger Plumbing Kit | 2018+ Ford Mustang (20-1817-03 / 20-1817-05)

The 2018+ Coyote runs direct and port injection, and only one regulator setup feeds both properly.

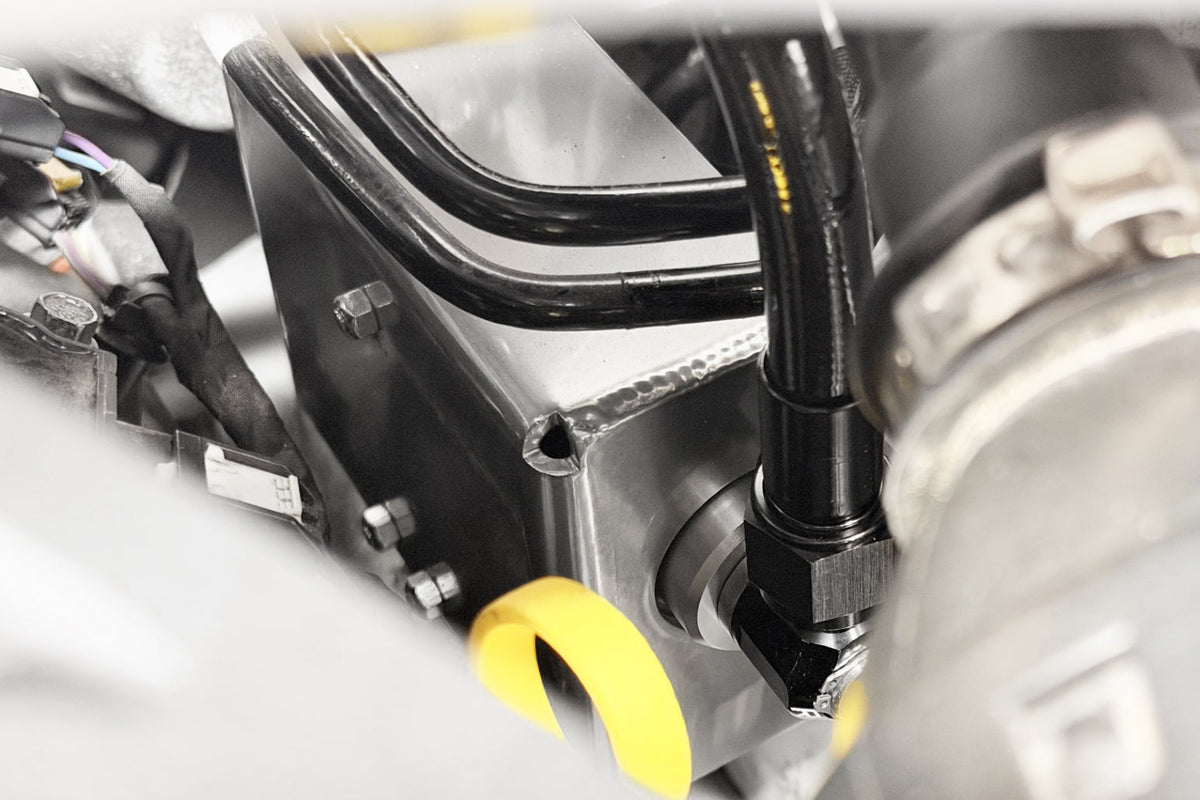

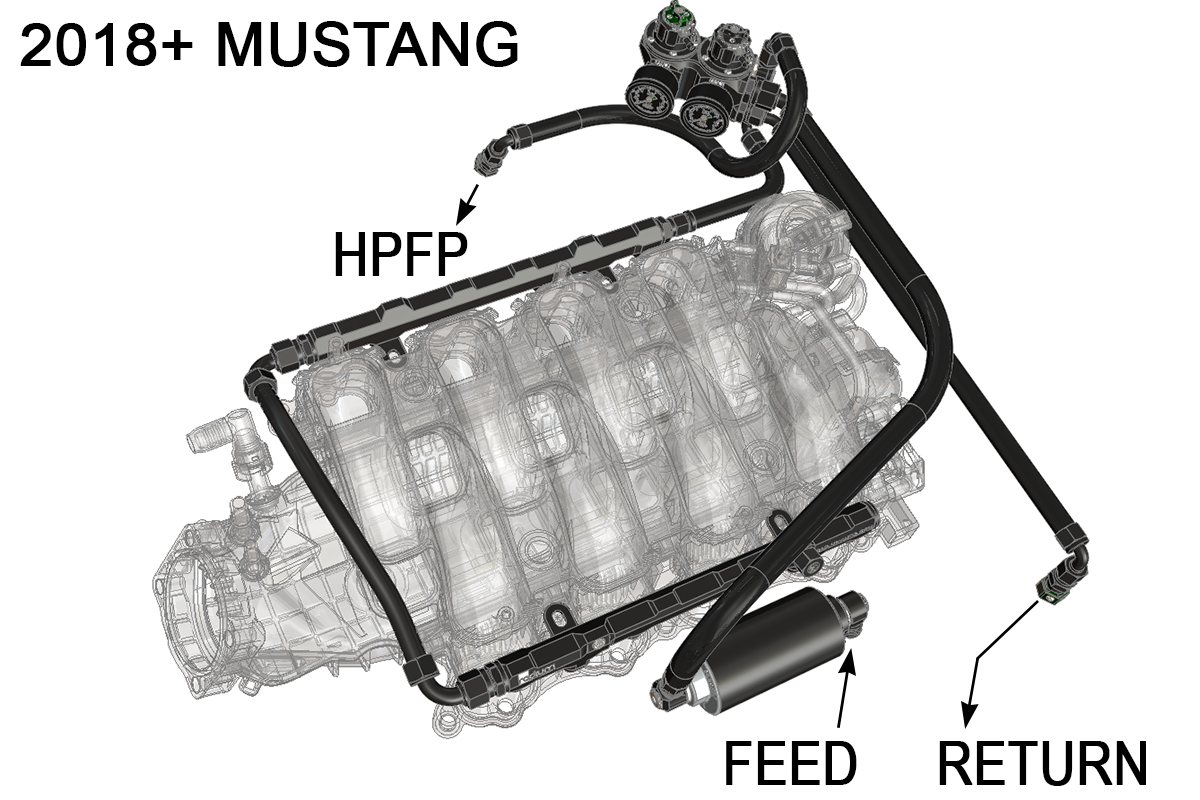

The Radium Engineering fuel hanger plumbing kit for the 2018 and newer Ford Mustang converts the Radium fuel hanger's integrated dead head system into a full return system serving a direct injection engine. The included 20-0806 FPR block-off disables the hanger's internal regulator, a long 8AN PTFE feed line routes underneath the vehicle on two billet fuel and brake line retainers to a Radium check valve fuel filter in a heat shield bracket, and fuel arrives at a Radium dual fuel pressure regulator (DFPR) with two independent regulated outputs. All adapters and fittings are included to connect to the direct injection high pressure fuel pump, the port injection fuel rail, or both. The OEM fuel feed hard line becomes the return.

Choose Your Kit

• Stainless Filter (20-1817-03): 10 micron stainless element, cleanable and reusable
• Microglass Filter (20-1817-05): 6 micron microglass element for the finest filtration

What You'll Feel

• Regulated low side pressure feeding the DI high pressure pump, with a second independent output ready for port injection
• True return-style control on a chassis Ford built returnless
• Injector protection restored downstream of a hanger that eliminates the in-tank filter
• Heat-managed routing with a shielded filter and billet retainers replacing OEM plastic clips
• E85-ready PTFE plumbing from tank to engine bay

Features

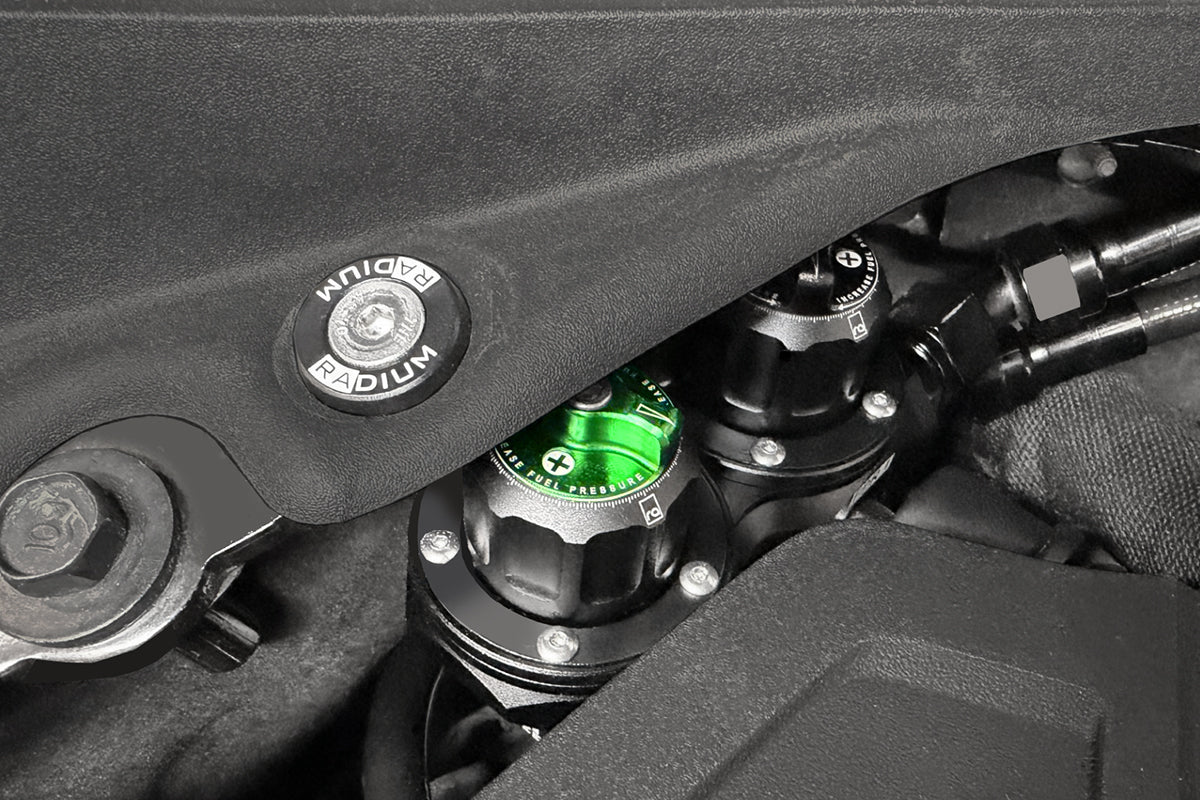

• Radium DFPR dual fuel pressure regulator with two independent regulated outputs
• Check valve fuel filter with heat shield mounting bracket, stainless or microglass element
• One 6AN and three 8AN PTFE fuel lines

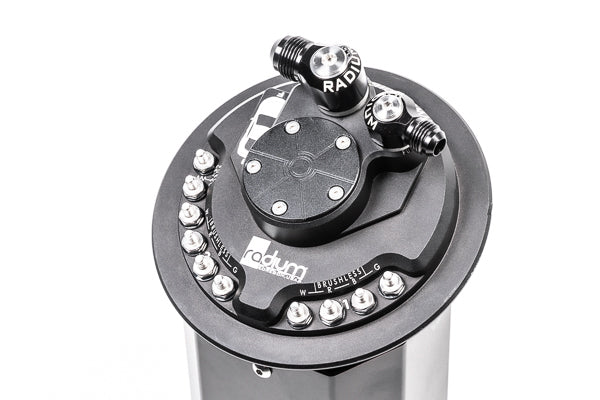

• 20-0806 fuel hanger FPR block-off kit included
• Two billet fuel and brake line retainers
• Adapters and fittings for the DI high pressure pump and port injection rail

The Details

The difference between this kit and its 2015-2017 sibling is the regulator, and it follows the engine. Pre-2018 Coyotes are port injected and use a single multi-port regulator; 2018 and later cars add direct injection, so the DFPR carries one output regulating the low pressure feed to the OEM high pressure fuel pump and a second, independently adjustable output for a port injection rail. That makes this kit the correct choice whether the build is a stock-DI car needing return-style control, or a full port injection conversion. As with every Radium hanger, the OEM post-pump filter is gone once the hanger is in, so the check valve filter here is required equipment. Radium fuel rails are sold separately.

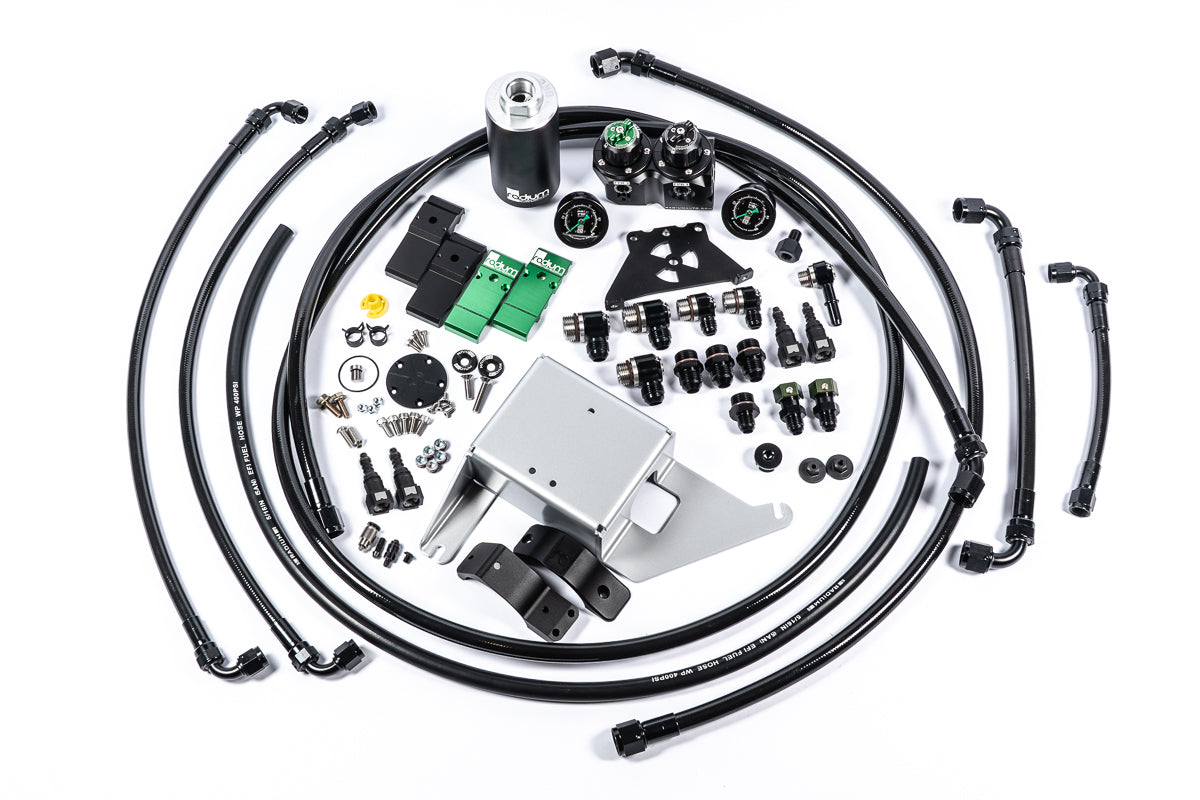

Kit Includes

• DFPR dual fuel pressure regulator
• Check valve fuel filter in the selected element with heat shield bracket
• 1x 6AN and 3x 8AN PTFE fuel lines
• 20-0806 FPR block-off kit, two billet fuel and brake line retainers, adapters, fittings, and hardware
• NOT included: the fuel pump hanger (20-1800 / 20-1801 / 20-1802), fuel pumps, Radium fuel rails, and port injectors

Applications

• 2018 and newer Ford Mustang, all models (S550 and S650)

Important Notes

• On manual transmission cars the 2-bolt flange clutch line bracket must be moved slightly to clear the fuel filter inlet fitting
• 2015-2017 Mustangs use the 20-1816-03 / 20-1816-05 kit, which uses a single multi-port regulator
