Radium Fuel Hanger Plumbing Kit | 2015-2017 Ford Mustang (20-1816-03 / 20-1816-05)

The Radium hanger's built-in regulator makes a dead head system, and Coyote builds running real fuel rails need a return.

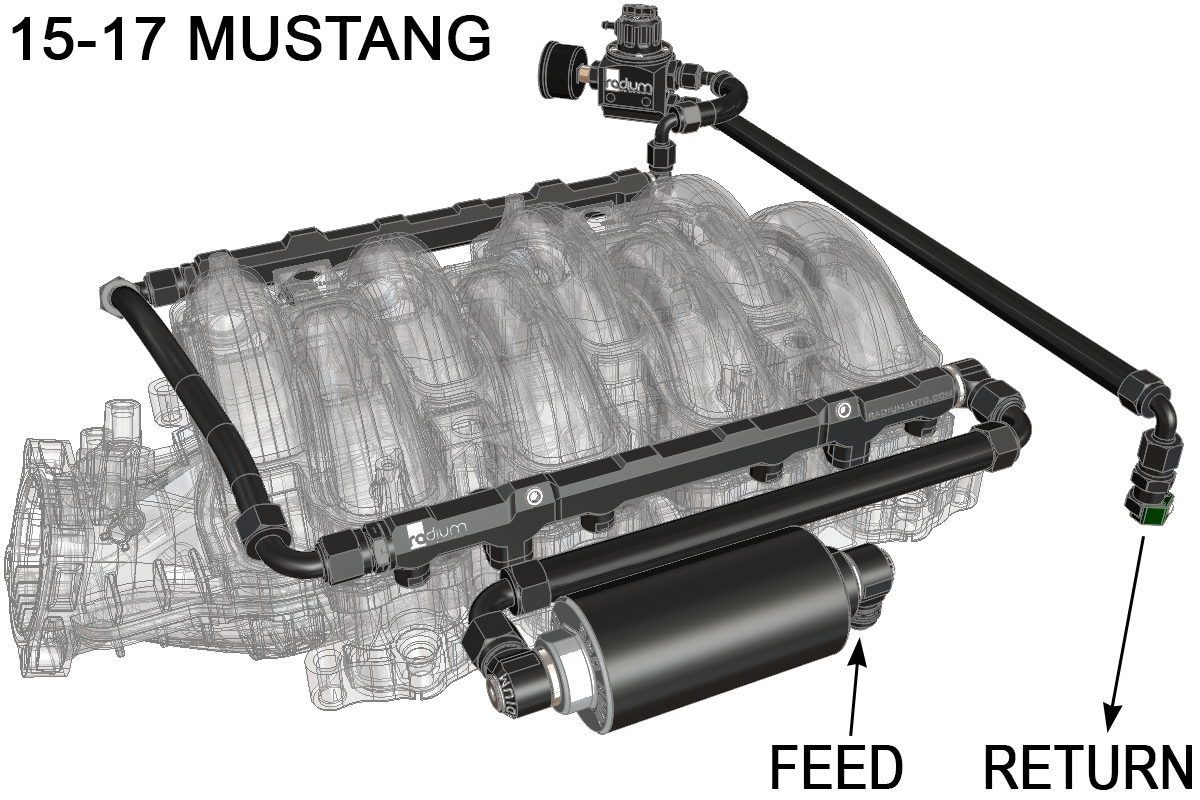

The Radium Engineering fuel hanger plumbing kit for the 2015-2017 Ford Mustang converts the hanger's integrated dead head setup into a full return system running from the tank to the engine bay. It starts with the 20-0806 FPR block-off that disables the hanger's internal regulator, then routes a long 8AN PTFE feed line underneath the vehicle, secured with two billet fuel and brake line retainers, to a Radium check valve fuel filter carried in a heat shield bracket. From there the fuel reaches a Radium multi-port regulator (MPR) with all adapters and fittings included to connect to the port injection fuel rail. The OEM fuel feed hard line is repurposed as the return.

Choose Your Kit

• Stainless Filter (20-1816-03): 10 micron stainless element, cleanable and reusable
• Microglass Filter (20-1816-05): 6 micron microglass element for the finest filtration

What You'll Feel

• True return-style fuel control on a chassis Ford built returnless
• The external regulator your Radium fuel rails were designed around, fed and plumbed correctly
• Injector protection restored downstream of a hanger that eliminates the in-tank filter

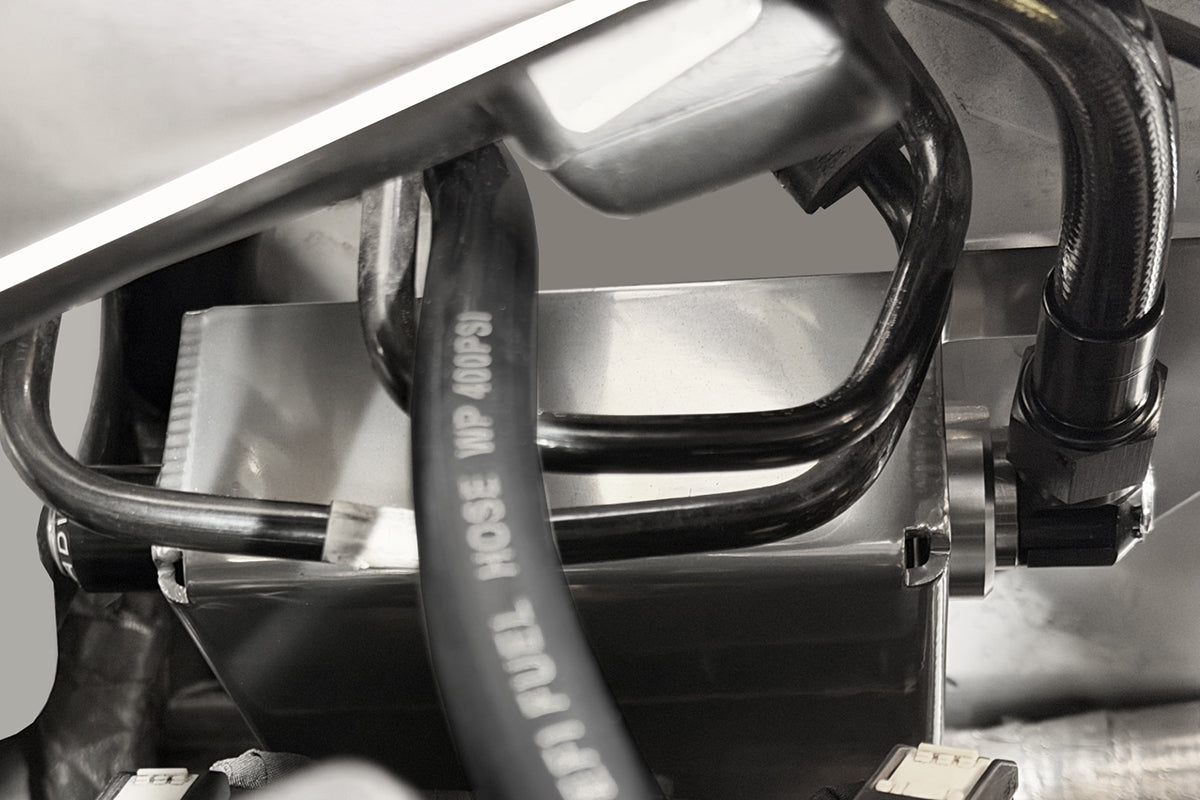

• Heat-managed routing, with the filter in a shield bracket and billet retainers replacing the OEM plastic clips
• E85-ready PTFE lines from tank to rail

Features

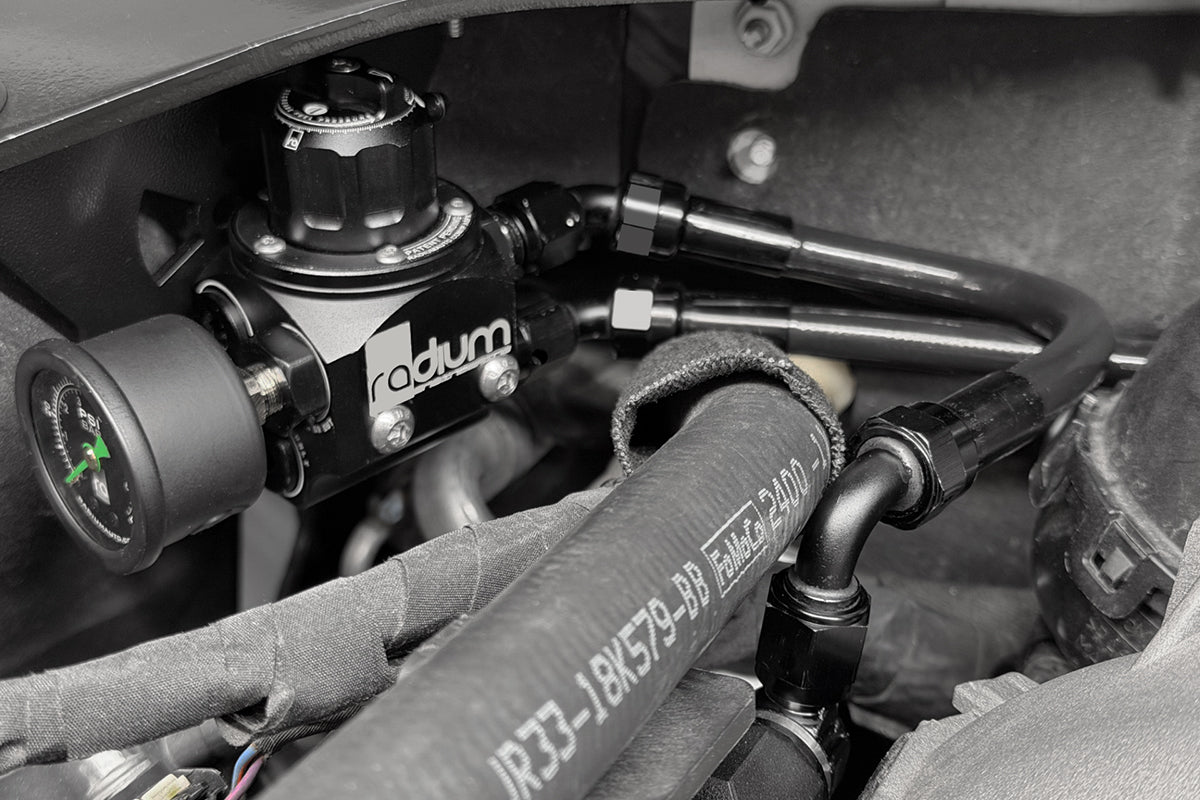

• Radium MPR multi-port fuel pressure regulator

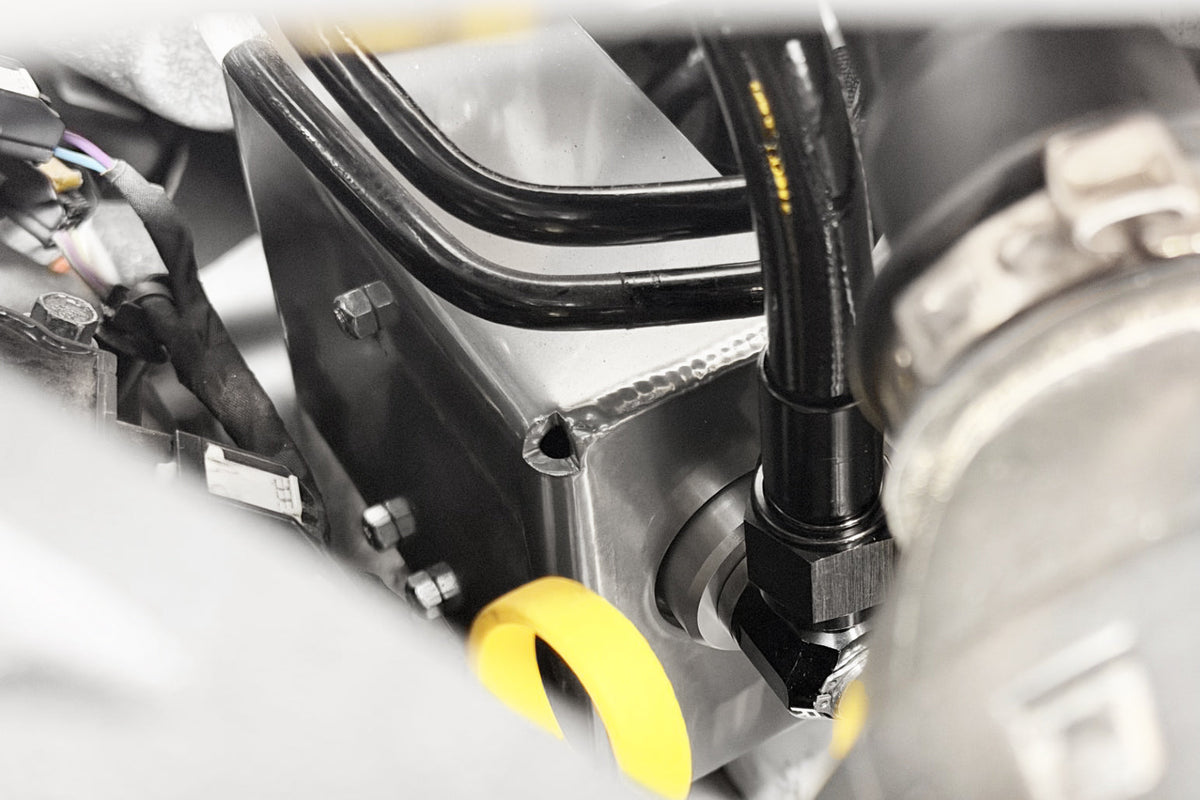

• Check valve fuel filter with heat shield mounting bracket, stainless or microglass element
• One 6AN and three 8AN PTFE fuel lines
• 20-0806 fuel hanger FPR block-off kit included
• Two billet fuel and brake line retainers
• All adapters and fittings for the port injection fuel rail connection

The Details

This kit exists because of a design choice in the Radium 2011+ Mustang hanger: it regulates fuel pressure internally and dead heads at the rail, exactly like the OE system, which makes it a plug and play swap on a stock car. The moment you want an engine bay regulator and aftermarket rails, that internal regulator has to come out of the circuit, and the 20-0806 block-off in this kit is what does it, sealing the regulator and opening the hanger's return port for the line back from the MPR. The hanger also eliminates the OEM post-pump filter, so the check valve filter here is not optional equipment; it is the filtration the system requires. Radium fuel rails are sold separately.

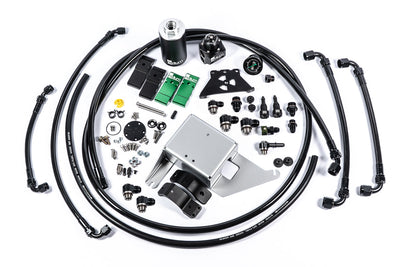

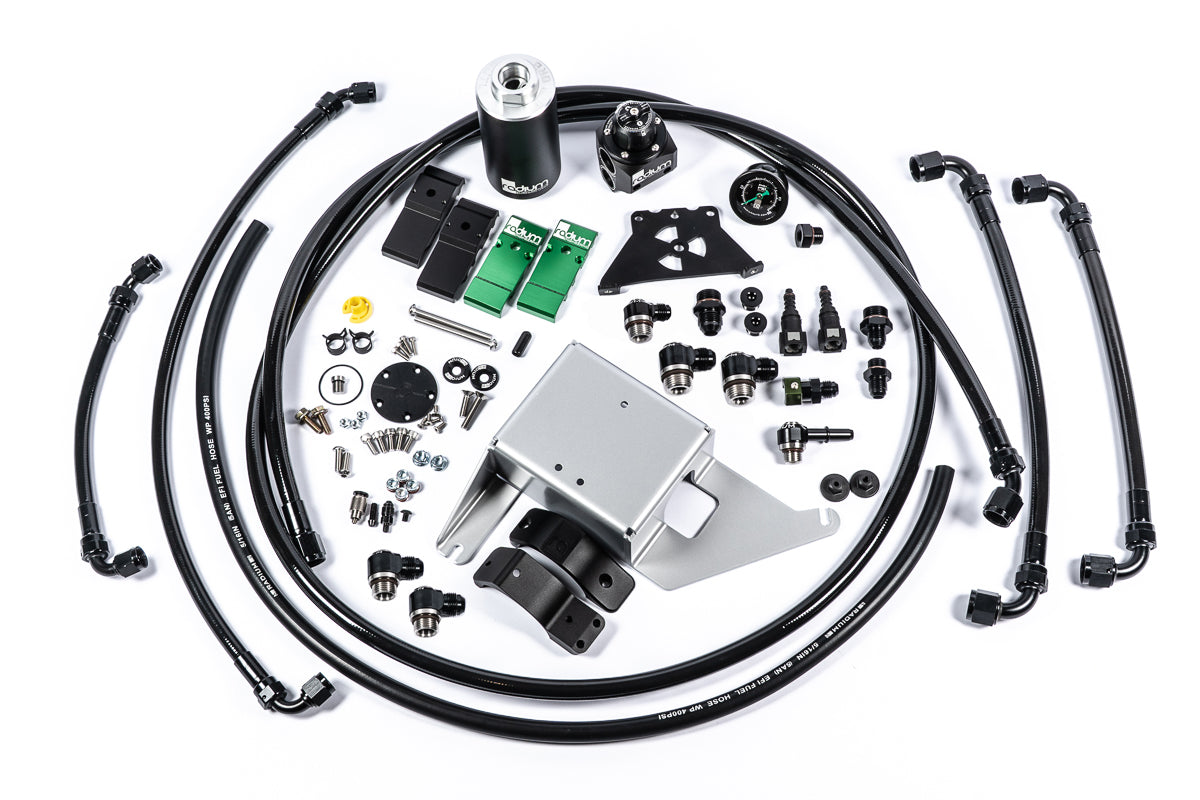

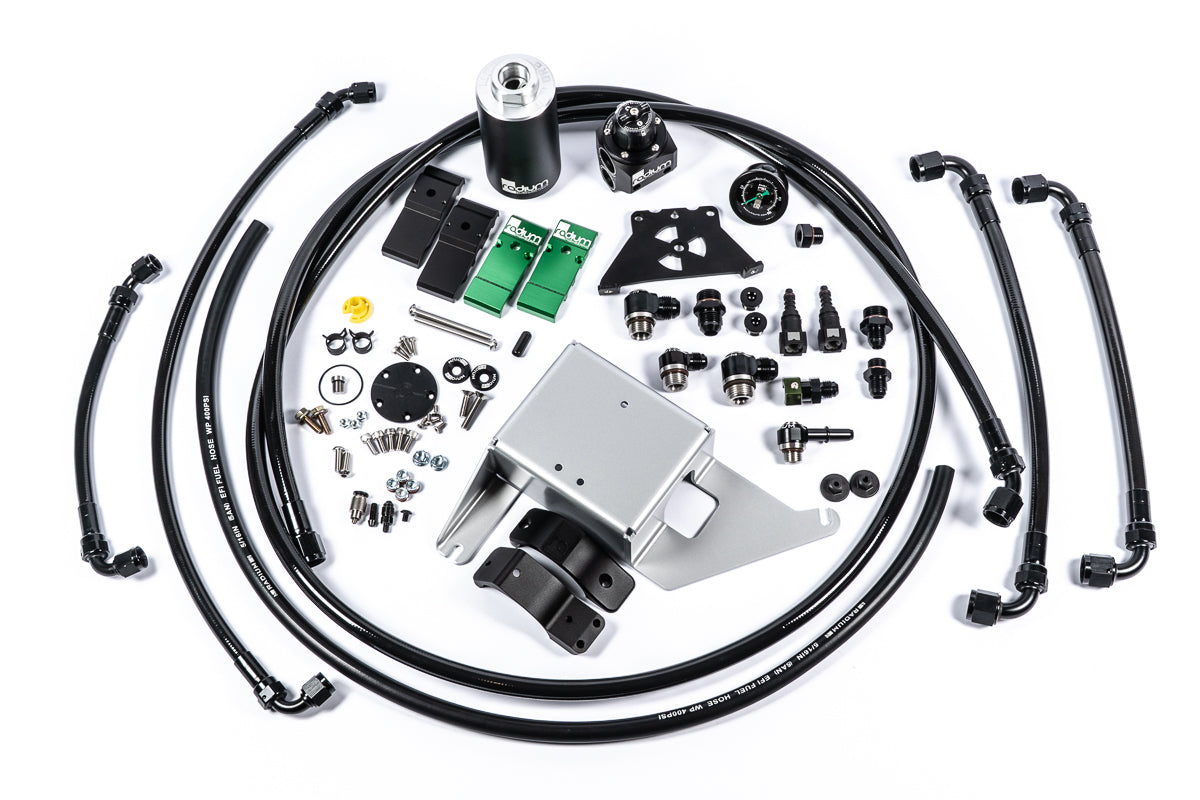

Kit Includes

• MPR multi-port fuel pressure regulator
• Check valve fuel filter in the selected element with heat shield bracket
• 1x 6AN and 3x 8AN PTFE fuel lines
• 20-0806 FPR block-off kit, two billet fuel and brake line retainers, adapters, fittings, and hardware
• NOT included: the fuel pump hanger (20-1800 / 20-1801 / 20-1802), fuel pumps, and Radium fuel rails

Applications

• 2015-2017 Ford Mustang, all S550 models
• 2015-2016 Shelby GT, GTE, GT-H, GTS (S550)
• 2015-2020 Shelby GT350 (S550)
• 2020-2022 Shelby GT500 (S550)

Important Notes

• On manual transmission cars the 2-bolt flange clutch line bracket must be moved slightly to clear the fuel filter inlet fitting
• 2018 and newer Mustangs use the 20-1817-03 / 20-1817-05 kit, which substitutes a dual fuel pressure regulator for the direct injection system
