Radium Fuel Hanger Plumbing Kit | 2008-2015 Cadillac CTS-V (20-1325-03 / 20-1325-05)

The hardest part of a CTS-V fuel system is the eight feet between the tank and the rails, and this kit solves exactly that.

The Radium Engineering fuel hanger plumbing kit for the 2008-2015 Cadillac CTS-V carries everything between the Radium GM fuel pump hanger and the fuel rails: dual 6AN PTFE feed lines sized to snake between the tank and the unibody where a single 8AN will not fit, a high flow fuel filter with a built-in check valve on a bolt-in anodized mount, a rail-mounted fuel pressure regulator with gauge, and the 8AN PTFE feed and crossover lines up top. The back half of the OEM fuel line stays in service so the factory fuel pressure sensor keeps feeding the ECU its diagnostics, and the rest of the stock line gets repurposed as the 6AN return. Both versions are identical except the filter media.

Choose Your Kit

• Stainless Filter (20-1325-03): 10 micron stainless steel element, cleanable and reusable
• Microglass Filter (20-1325-05): 6 micron microglass element for the finest filtration

What You'll Feel

• A complete, engineered plumbing path instead of a parts-counter scavenger hunt: every hose, fitting, bracket, and the regulator arrive in one box
• Stable rail pressure with real return-style regulation replacing the deleted in-tank OEM regulator
• Injector protection restored, since the kit adds back the post-pump filtration the hanger eliminates
• Pressure that holds after shutdown thanks to the check valve built into the filter
• OEM ECU diagnostics intact because the factory pressure sensor section of the feed line is retained

Features

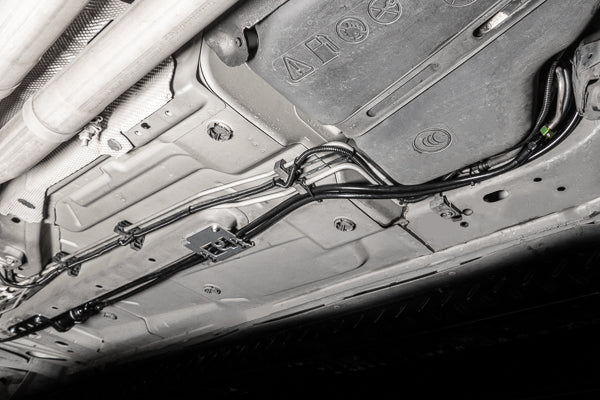

• Dual 6AN PTFE feed lines from fuel hat to filter, sized for the tank-to-unibody gap

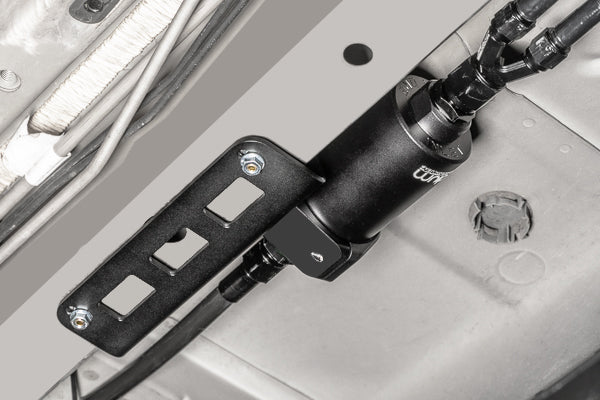

• High flow fuel filter with built-in check valve; choice of 10 micron stainless or 6 micron microglass element
• Anodized bolt-in fuel filter mounting bracket, no permanent vehicle modifications
• Thermal insulating sleeve and billet clamp protecting lines from chafe and header heat

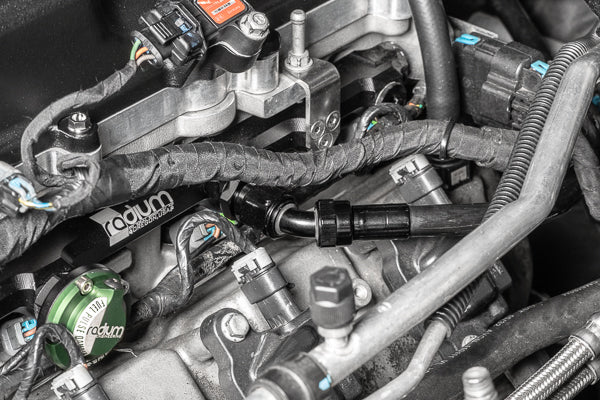

• 8AN PTFE line from filter to LH fuel rail plus 8AN crossover connecting the rails at the front

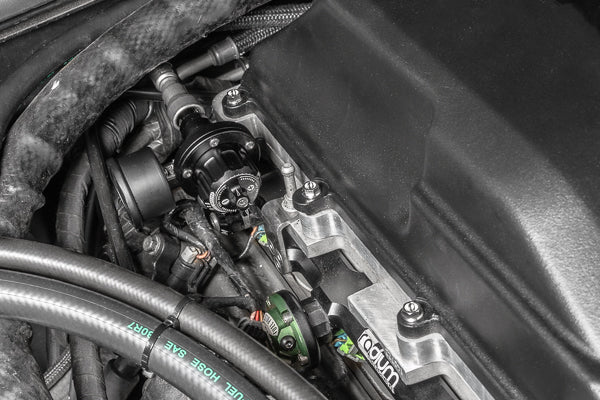

• Fuel pressure regulator and gauge mounting directly to the RH fuel rail
• Aluminum hose retainer bracket; OEM feed line repurposed as the 6AN return to the FPR

The Details

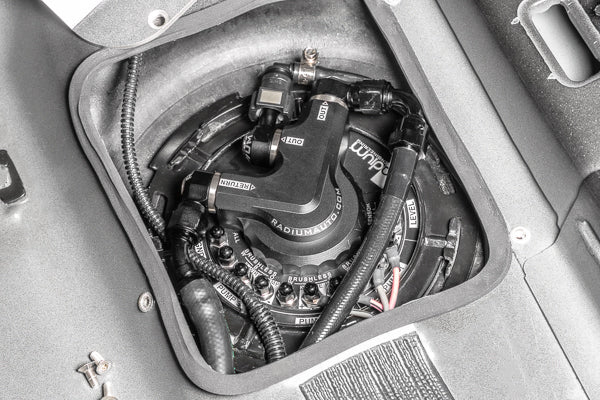

This kit is one third of a three-part system. The Radium GM fuel pump hanger (20-1320 or 20-1322) lives in the tank, this plumbing kit spans the chassis, and the Radium 20-0362 LS9/LSA fuel rails receive it all; the rails are required and sold separately, as is the 20-0545 rail plumbing kit family for related applications. Version choice is filter media only: stainless cleans and reuses, microglass filters finer and gets replaced. The check valve in the filter is what lets fuel pressure hold after key-off, which matters for hot restarts on big pumps. For faster in-car pump service afterward, Radium's 20-0835 CTS-V fuel pump access cover turns future hanger work into a trunk job instead of a tank drop.

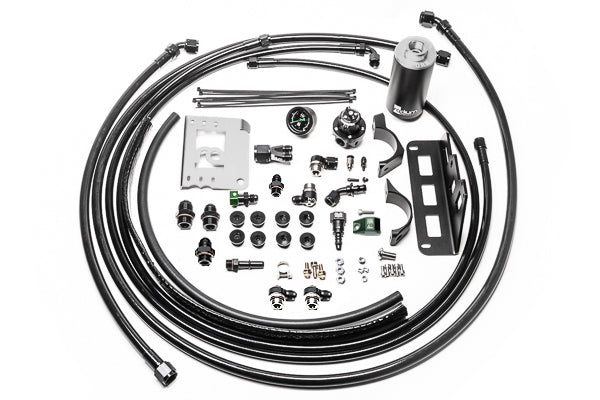

Kit Includes

• Dual 6AN PTFE feed lines and 8AN PTFE feed and crossover lines
• Radium high flow fuel filter with check valve, in the selected element
• Fuel pressure regulator and pressure gauge
• Filter mounting bracket, hose retainer bracket, billet clamp, thermal sleeve, and hardware
• NOT included: the fuel pump hanger (20-1320 / 20-1322), fuel pumps, and the required Radium 20-0362 fuel rails

Applications

• 2008-2015 Cadillac CTS-V with the Radium GM fuel pump hanger and Radium 20-0362 fuel rails

Important Notes

• Radium Engineering 20-0362 fuel rails are required for this kit and are sold separately
• Designed around the Radium GM fuel pump hanger; not intended for the stock in-tank module
