Radium Fuel Hanger Plumbing Kit | 2003-2006 Mitsubishi Evo 8/9 (20-0376)

A dual-pump hanger flowing 900 lph into the factory Evo feed line is a river hitting a garden hose.

Upgrading the in-tank hardware only pays off if the lines and filtration downstream can carry the flow. The Radium Engineering Fuel Hanger Plumbing Kit for the Evo 7/8/9 connects the Radium fuel pump hanger directly to an aftermarket 8AN fuel rail and 6AN regulator, with pre-made 8AN PTFE feed lines, an in-line Radium high flow fuel filter on a chassis-specific bracket, and the factory feed line cleverly repurposed as the return. Choose the 10 micron stainless or 6 micron microglass filter element. Bolt-on, with no cutting or drilling.

What You'll Feel

• Full flow from single or dual pumps actually reaching the rail instead of dying in restrictive factory plumbing
• Injector protection restored, since the hanger deletes the OEM post-pump filter this kit replaces
• A clean underbody install with the filter on a purpose-built Evo 7-9 bracket, no fabrication
• Leak-free PTFE lines that shrug off E85 and heat for the life of the car
• One box covering the feed, return, filtration, and hardware in a single order

Features

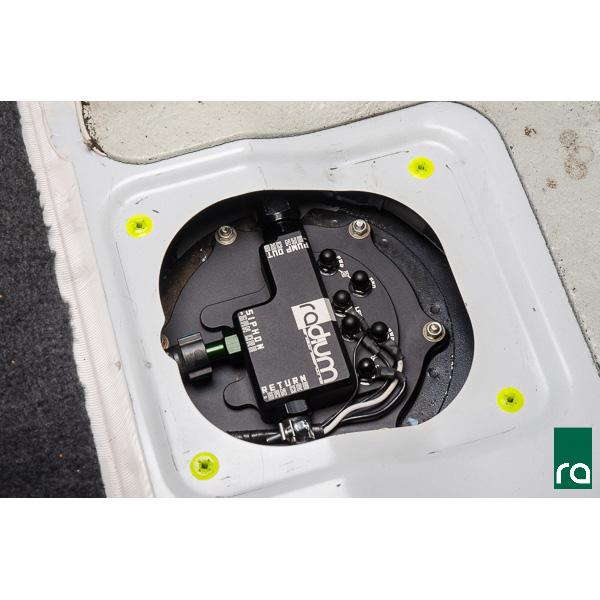

• Connects the Radium Evo 7/8/9 fuel pump hanger to any fuel rail accepting an 8AN male hose and a 6AN male FPR, single or dual pump configurations
• Pre-made 8AN PTFE fuel feed hoses (x2) with in-line Radium high flow fuel filter
• Filter element options: 10 micron stainless (20-0376-03, cleanable) or 6 micron microglass (20-0376-05, replaceable)

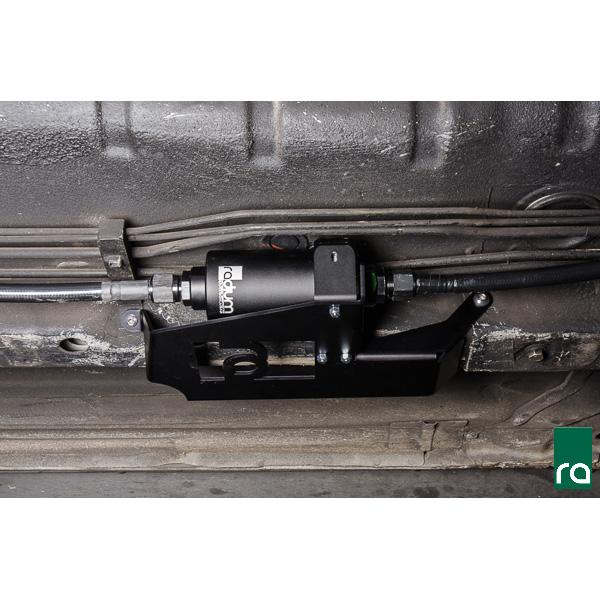

• Billet aluminum 60mm 2-piece filter clamp on an aluminum Evo 7-8-9 chassis bracket using existing mounting points
• Factory feed line re-used as the regulator return, with 6AN PTFE return replacement, EFI hose, 6AN ORB fitting, EFI clamp, and inverted flare adapter included
• Stainless steel hardware throughout; no cutting or drilling required

The Details

The routing logic mirrors Radium's other hanger conversions. The hanger's 8AN outlet feeds PTFE hose forward to the underbody-mounted filter, then continues to the engine bay to meet your 8AN rail. Rather than abandoning the factory feed hard line, the kit converts it into the return path from the regulator back to the tank, which eliminates the restrictive OEM return arrangement while reusing infrastructure the car already has. Filtration placement matters here because the Radium hanger deletes the OEM module's post-pump filter, so the in-line filter in this kit is not optional equipment; it is the injectors' only protection. Element choice follows the usual rule: stainless can be cleaned and reused, microglass captures finer but gets replaced at end of service. This kit assumes the rest of the Radium ecosystem, pairing with the Evo 7/8/9 hanger, a Radium fuel rail, and a direct mount regulator (each sold separately) to complete the over-1,000 hp capable factory-tank fuel system.

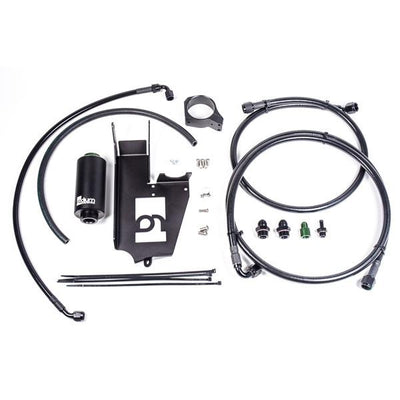

Kit Includes

• 1x Radium high flow fuel filter with selected element (stainless -03 or microglass -05)
• 2x Black 8AN male adapter fittings
• 1x Billet aluminum 60mm 2-piece filter clamp with aluminum Evo 7-8-9 filter bracket
• 2x 8AN PTFE fuel feed hose replacements
• 1x 6AN PTFE fuel return replacement
• EFI fuel hose, 6AN ORB fitting, and EFI clamp
• 1x Inverted flare to 6AN adapter fitting
• Stainless steel hardware

Applications

• 2001-2006 Mitsubishi Lancer Evolution 7, 8, and 9 with the Radium fuel pump hanger (sold separately)
• Requires a fuel rail accepting an 8AN male feed and an FPR accepting a 6AN male connection
