Radium Fuel Hanger Plumbing Kit | Nissan S14 S15 R33 R34 (20-0702-03 / 20-0702-05)

The hanger gets fuel out of the tank. This kit gets it to the rail without cutting a single panel.

The Radium Engineering fuel hanger plumbing kit for late model Nissan carries everything needed to plumb between a Radium in-tank pump hanger and an aftermarket fuel rail on the S14, S15, R33, and R34. An 8AN feed hose runs from the hanger through the supplied fuel filter, which mounts in the stock filter location on a purpose-designed Nissan billet bolt-on mount, and a 6AN return hose runs from the regulator back to the hanger return port. The lines route through billet aluminum fuel and brake line retainers and clear the OEM fuel pump cover, so no cutting or drilling is needed to get them past the tank.

Choose Your Kit

• Stainless filter (20-0702-03): cleanable stainless element
• Microglass filter (20-0702-05): microglass element

What You'll Feel

• A complete feed and return path that clears the body without fabrication

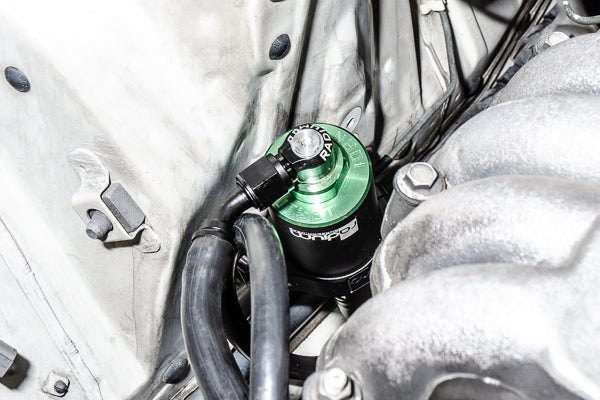

• The filter sitting in the stock location on a bolt-on billet mount, not zip-tied somewhere
• Lines held properly by billet retainers rather than left to chafe
• Room to add an in-line flex fuel sensor later by modifying the feed or return hose

Features

• 8AN (1/2in) feed hose from hanger through the fuel filter
• 6AN (3/8in) return hose from the regulator to the hanger return port
• 8AN and 6AN 90 degree PushLok hose ends for the rail and regulator connections
• Low profile 8AN and 6AN fuel hanger fittings for access cover clearance
• Billet aluminum Nissan filter mount using the stock filter location
• Billet aluminum fuel and brake line retainers

The Details

Note what this kit deliberately does not include: the 8AN male fitting on the aftermarket fuel rail and the 6AN male fitting on the regulator are both supplied by those components, not here. The PushLok hose ends are sized to mate to them. The low profile hanger fittings matter more than they sound, since straight adapters will not clear the fuel pump access cover plate. If a flex fuel sensor is in the plan, either hose can be modified for an in-line install rather than replumbing later.

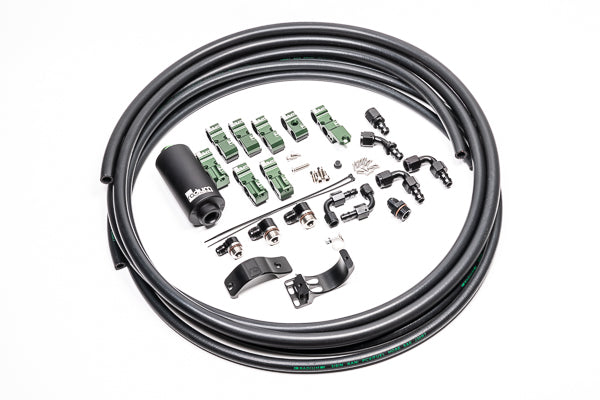

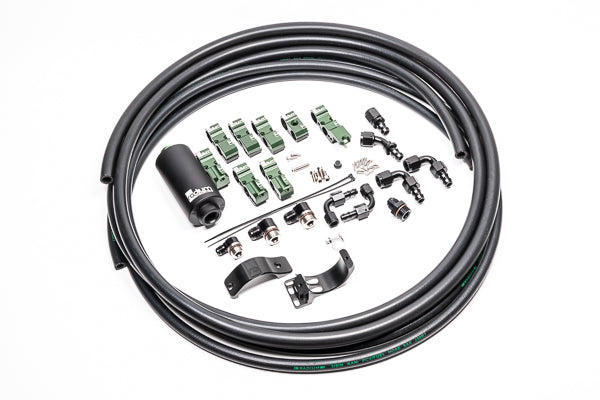

Kit Includes

• Fuel filter, stainless or microglass depending on selection
• Low profile 8AN and 6AN fuel hanger fittings
• 8AN fuel filter adapter fittings
• Billet aluminum Nissan filter mount
• 8AN and 6AN PushLok hose ends
• 8AN feed hose and 6AN return hose
• Fuel and brake line retainers, stainless steel hardware
• NOT included: fuel pump hanger, fuel pumps, fuel rail, fuel pressure regulator, and their AN fittings

Applications

• Nissan S14 Silvia, 200SX, and 240SX (all models, trims, RHD and LHD)
• Nissan S15 Silvia and 200SX (all models, trims, RHD and LHD)
• Nissan R33 and R34 Skyline (all models, trims, RHD and LHD)

Important Notes

• NOT designed for the stock fuel rail; an aftermarket rail with an 8AN male fitting is required
• Requires a Radium in-tank fuel hanger such as the 20-0630-00 or 20-0632-00, or a hanger with the 20-0700 or 20-0701 FHST add-on
