Radium Fuel Hanger Plumbing Kit | 1989-2005 Mazda MX-5 Miata (20-1025-03 / 20-1025-05)

A Radium hanger in an NB deletes the only fuel pressure regulator the car has, and this kit is the complete answer to that.

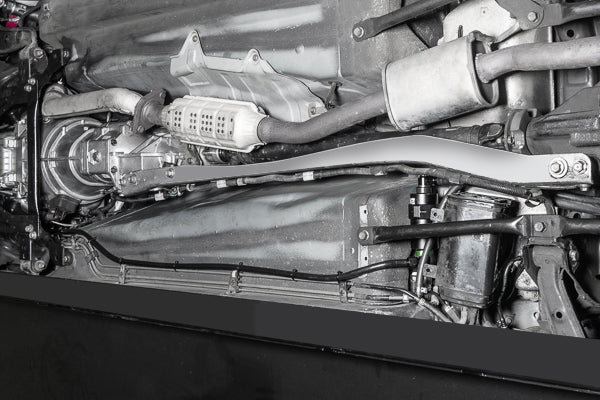

The Radium Engineering fuel hanger plumbing kit for the 1989-2005 Mazda MX-5 Miata carries fuel from the Radium 20-1020 hanger all the way to the rail: a large 8AN feed line runs around the backside of the fuel tank to a high flow fuel filter mounted in the OEM location on a billet mount, then an 8AN PTFE line follows the factory hard lines forward to an RA-series fuel pressure regulator under the right hand strut tower. From the FPR, another 8AN PTFE line feeds the front port of a dead head aftermarket fuel rail. The OEM fuel feed line is repurposed as a high flow return connecting directly to the FPR return fitting, and a fuel pressure gauge mounts on the feed line for easy adjustment.

Choose Your Kit

• Stainless Filter (20-1025-03): 10 micron stainless element, cleanable and reusable
• Microglass Filter (20-1025-05): 6 micron microglass element for the finest filtration

What You'll Feel

• Adjustable, gauge-verified fuel pressure on a chassis that offers none from the factory
• A full return-style circuit using the OEM feed line rather than fabricating new hard lines
• The regulator an NB hanger install requires, bundled with the filtration and plumbing rather than bought piecemeal

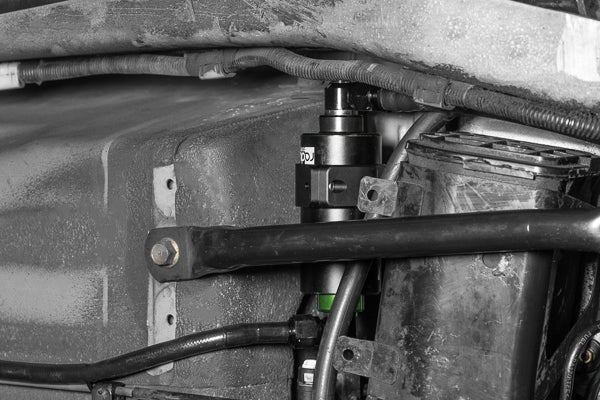

• Factory-location filter mounting on a billet mount, no drilling
• E85-ready PTFE plumbing from tank to rail

Features

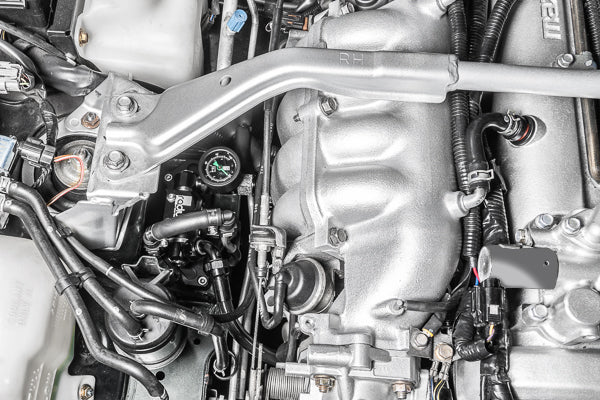

• RA-series adjustable fuel pressure regulator mounted under the RH strut tower
• High flow fuel filter with billet OEM-location mount, stainless or microglass element
• Large 8AN feed line around the tank plus 8AN PTFE lines to the FPR and rail
• Fuel pressure gauge mounted directly on the feed line
• Adapter fittings and hardware for a complete installation

The Details

This kit is the fuller of Radium's two answers to the NB regulator problem. On 1999-2005 cars, installing the 20-1020 hanger removes the OEM fuel pressure regulator from the system, and an aftermarket FPR becomes mandatory; the lighter path is the 20-1022 FPR kit, while this kit adds regulation, filtration, and the entire tank-to-rail plumbing run in one box. On 1989-1997 cars the OEM regulator lives on the fuel rail and is unaffected by the hanger, so this kit is an upgrade rather than a requirement, converting the car to a proper high flow return system. It feeds a dead head aftermarket rail at the front port: the Radium 1.6L B6 rail (20-0769-02) or the 1.8L BP rail (20-0369), both carried here and sold separately.

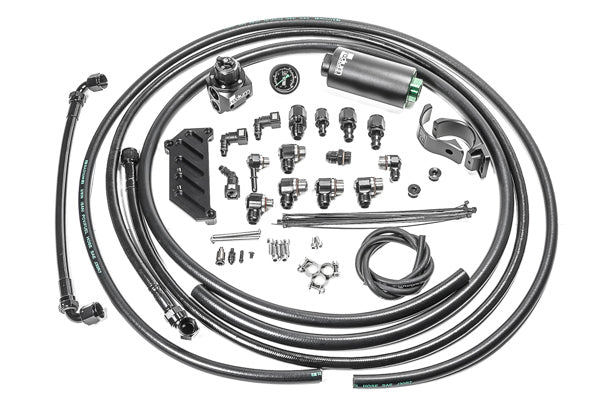

Kit Includes

• RA-series fuel pressure regulator and fuel pressure gauge
• High flow fuel filter in the selected element with billet OEM-location mount
• 8AN feed line, 8AN PTFE fuel lines, adapter fittings, and hardware
• NOT included: the 20-1020 fuel pump hanger, fuel pumps, and the aftermarket fuel rail

Applications

• 1989-2005 Mazda MX-5 Miata, NA and NB, with the Radium 20-1020 fuel pump hanger

Important Notes

• Requires a dead head aftermarket fuel rail with a front feed port; the OEM rail is not compatible
• On 1999-2005 cars this kit satisfies the aftermarket FPR the 20-1020 hanger requires; the 20-1022 FPR kit is the alternative if full plumbing is not needed
