Radium Fuel Hanger Connection Kit | Mitsubishi Evo 6 (20-1332)

The Evo 6 routes its fuel lines differently, and that is why it gets its own connection kit.

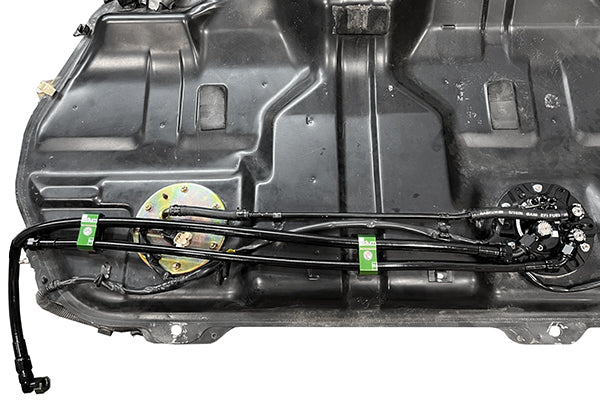

The Radium Engineering fuel hanger connection kit for the Mitsubishi Evo 6 supplies every connection between the 20-1330 pump hanger and the OEM hard lines at the rear of the car. A long 8AN PTFE line runs from the pump outlet down beneath the right hand side of the fuel tank to an SAE quick connect adapter at the factory hard line, and a 6AN PTFE return hose routes across the tank back to the hanger return port. Two anodized aluminum clamps secure the PTFE lines across the upper front of the tank.

What You'll Feel

• A factory-tidy connection at the hard lines with no fabrication
• PTFE hose throughout, compatible with pump gas, E85, and methanol
• Lines properly clamped across the tank rather than left loose

Features

• Long 8AN PTFE feed hose routed down the RH side of the tank
• 6AN PTFE return hose routed across the tank
• SAE quick connect adapter for the OEM hard line
• Short rubber hose adapting the OEM barbed return hard line to 6AN
• Two billet aluminum clamps, stainless steel EFI clamps, and adapter fittings

The Details

The Evo 6 differs from the Evo 1-5 in both routing and fittings, which is why Radium builds two kits rather than one. This version runs a long feed line down the right hand side and uses an SAE quick connect only, where the earlier cars use a short line plus both inverted flare and SAE adapters, and need access cover spacers. Ordering by chassis rather than by engine is the safe habit here, since all of these are 4G63. This kit connects the hanger to the factory hard lines only; to run larger lines the full length of the car, add the 20-1334 plumbing kit or fabricate hoses separately.

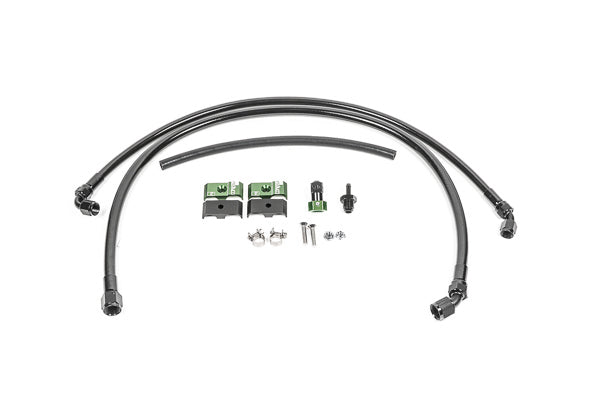

Kit Includes

• 8AN PTFE fuel feed hose and 6AN PTFE fuel return hose
• SAE quick connect adapter
• 4AN rubber hose and misc adapter fittings
• Stainless steel EFI clamps and billet aluminum clamps
• NOT included: fuel pump hanger, fuel pump, and engine bay plumbing

Applications

• Mitsubishi Lancer Evolution VI

Important Notes

• NOT compatible with the Evo 1 through 5, which require the 20-1331 connection kit
• Requires the 20-1330 fuel pump hanger
• Custom hoses and fittings are needed to run larger lines to the engine unless the 20-1334 plumbing kit is used
