Radium Fuel Hanger Connection Kit | Mitsubishi Evo 1-5 (20-1331)

The hanger ends at the top of the tank. This kit gets you to the factory hard lines.

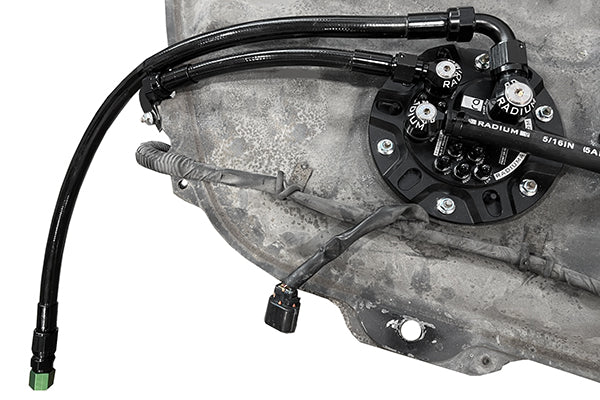

The Radium Engineering fuel hanger connection kit for the Mitsubishi Evo 1-5 supplies every connection between the 20-1330 pump hanger and the OEM hard lines at the rear of the car. A short 8AN PTFE line runs from the pump outlet behind the hanger and down beneath the tank, where it meets the factory hard line. Early cars use an inverted flare fitting and later cars use an SAE quick connect, and adapters for both are in the box, so the kit covers the running change without guesswork.

What You'll Feel

• A factory-tidy connection at the hard lines with no fabrication
• Both fitting styles covered, inverted flare and SAE quick connect
• PTFE hose throughout, compatible with pump gas, E85, and methanol
• An access cover that still closes properly over the larger lines

Features

• 8AN PTFE feed hose and 6AN PTFE return hose
• SAE quick connect adapter and inverted flare adapter fitting both included
• Short rubber hose adapting the OEM barbed return hard line to 6AN
• Four aluminum spacers, new mounting screws, and thicker adhesive foam for the RH access cover
• Stainless steel EFI clamps and adapter fittings

The Details

The access cover hardware matters more than it reads: the larger fuel lines need clearance, so the kit raises the right hand OEM tank access cover on spacers with thicker foam rather than leaving it to foul. Note the scope of this kit carefully. It connects the hanger to the factory hard lines only. If you intend to run larger lines the full length of the car to the engine and back, either buy the 20-1334 plumbing kit or fabricate hoses separately. Evo 6 uses a different connection kit, the 20-1332, because the routing differs.

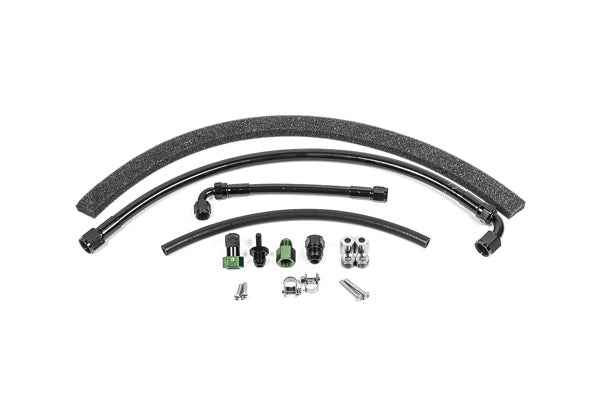

Kit Includes

• 8AN PTFE fuel feed hose and 6AN PTFE fuel return hose
• SAE quick connect adapter and inverted flare adapter fitting
• 4AN rubber hose and misc adapter fittings
• Stainless steel EFI clamps
• Access cover hardware: spacers, screws, and adhesive foam
• NOT included: fuel pump hanger, fuel pump, and engine bay plumbing

Applications

• Mitsubishi Lancer Evolution I, II, III, IV, and V

Important Notes

• NOT compatible with the Evo 6, which requires the 20-1332 connection kit
• Requires the 20-1330 fuel pump hanger
• Custom hoses and fittings are needed to run larger lines to the engine unless the 20-1334 plumbing kit is used
