Radium Fuel Hanger Connection Kit | 1990-1993 Acura Integra / 1988-1991 Honda Civic CR-X (20-1795)

The stock fuel hat has a long hard line brazed to it. This kit deletes that and joins the Radium hanger to the factory lines properly.

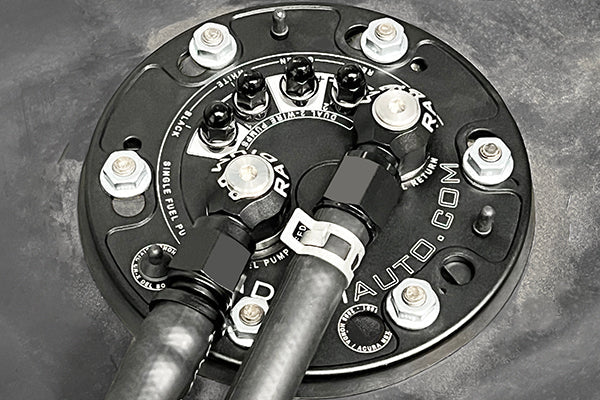

The Radium Engineering fuel hanger connection kit for the 1990-1993 Acura Integra and 1988-1991 Honda Civic and CR-X supplies the hardware to connect a Radium fuel pump hanger to the OEM fuel hard lines under the car. A 6AN feed line mates to the OEM flare fitting on the side of the fuel tank, which eliminates the long integrated hard line brazed to the factory fuel hat, and a 5AN return line mates to the hard line barb on the tank side.

What You'll Feel

• The brazed-on factory hard line gone, replaced with serviceable AN hose
• A complete install without fabricating lines or sourcing fittings piecemeal
• PushLok hose ends that seat without clamps

Features

• M14 inverted flare to 6AN male fitting for the OEM tank-side flare
• 6AN EFI fuel feed hose, 3/8in ID
• 5AN EFI fuel return hose, 5/16in ID
• 6AN PushLok hose ends, straight and 90 degree
• 6AN female to 5/16in hose barb
• OEM style spring clamps

The Details

This is the companion purchase to the 20-1790 or 20-1792 hanger for anyone keeping the factory hard lines, which is most street builds. The hanger's preinstalled 6AN male fittings connect straight to this kit. Builds running full aftermarket AN plumbing from tank to rail can connect to those fittings directly and will not need it.

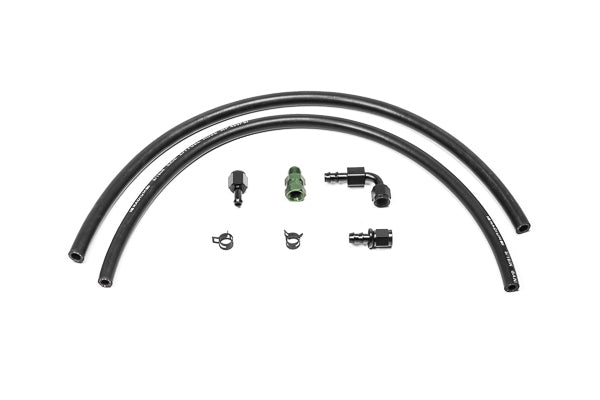

Kit Includes

• M14 inverted flare to 6AN male fitting
• 6AN EFI fuel feed hose, 3/8in ID
• 5AN EFI fuel return hose, 5/16in ID
• 6AN PushLok hose end, straight
• 6AN PushLok hose end, 90 degree
• 6AN female to 5/16in hose barb
• OEM style spring clamps
• NOT included: fuel pump hanger and fuel pump

Applications

• 1990-1993 Acura Integra, 1988-1991 Honda Civic and CR-X, fitted with a Radium 20-1790 or 20-1792 hanger

Important Notes

• Requires a Radium fuel pump hanger, sold separately
