Radium Fuel Filter Mount | BMW E90 E91 E92 E93 N54 N55 (20-1475)

A high flow filter is only as good as where you hang it, and zip ties are not a mounting solution.

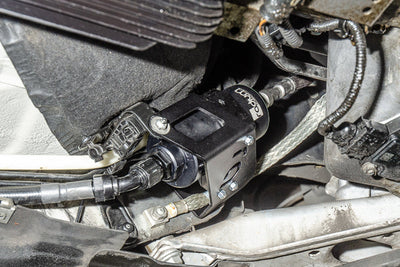

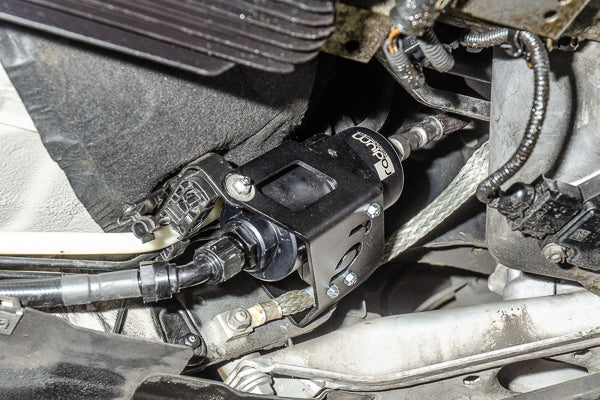

The Radium Engineering fuel filter mount for the BMW E90, E91, E92, and E93 is the bracket and clamp set that puts a Radium filter in a proper location just left of the transmission, securing to factory chassis studs using OEM flange nuts so nothing needs to be drilled or fabricated. A billet anodized aluminum clamp holds the filter with stainless bolts.

What You'll Feel

• A filter mounted to the chassis rather than hanging on its own lines
• A factory-tidy install using existing threaded studs
• Anodized billet hardware that will not corrode under the car

Features

• Mounts to factory chassis studs with OEM flange nuts
• Formed anodized aluminum bracket
• Billet anodized aluminum clamp, 60mm (2.36in) diameter
• Zinc plated locking nuts and stainless steel bolts

The Details

This is hardware only. The fuel filter, the AN fittings, and any fuel lines are separate purchases, so plan the plumbing alongside it. The 60mm clamp is worth noting for a second reason: it also fits an external Bosch 0 580 254 044 fuel pump, so the same bracket can mount a pump rather than a filter on builds that need it. If you want the filter, mount, and lines as a single package for an FHST install, the 20-0475 fuel hanger feed kit includes all of it.

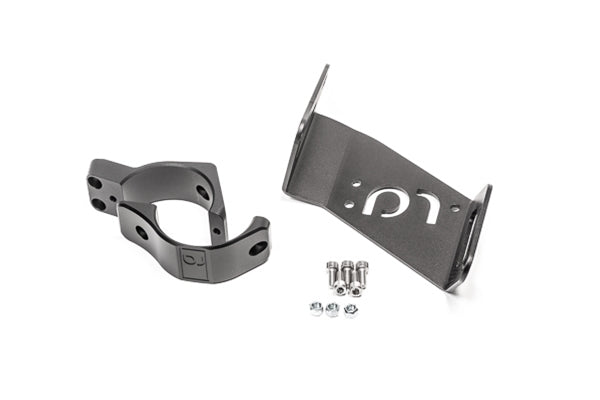

Kit Includes

• Anodized aluminum mounting bracket
• Anodized aluminum fuel filter clamp
• Stainless steel mounting hardware
• NOT included: fuel filter, AN fittings, and fuel lines

Applications

• BMW E90, E91, E92, and E93 3-series with the N54 or N55 engine

Important Notes

• NOT compatible with the S65 V8 engine
• Filter and fittings sold separately; aftermarket fuel lines must be configured separately
