Radium Fuel Filter Kit | 2015+ Ford Mustang S550 S650 (20-1819-03 / 20-1819-05 / 20-1829)

An aftermarket hanger deletes the factory post-pump filter. Something has to replace it before the injectors find out.

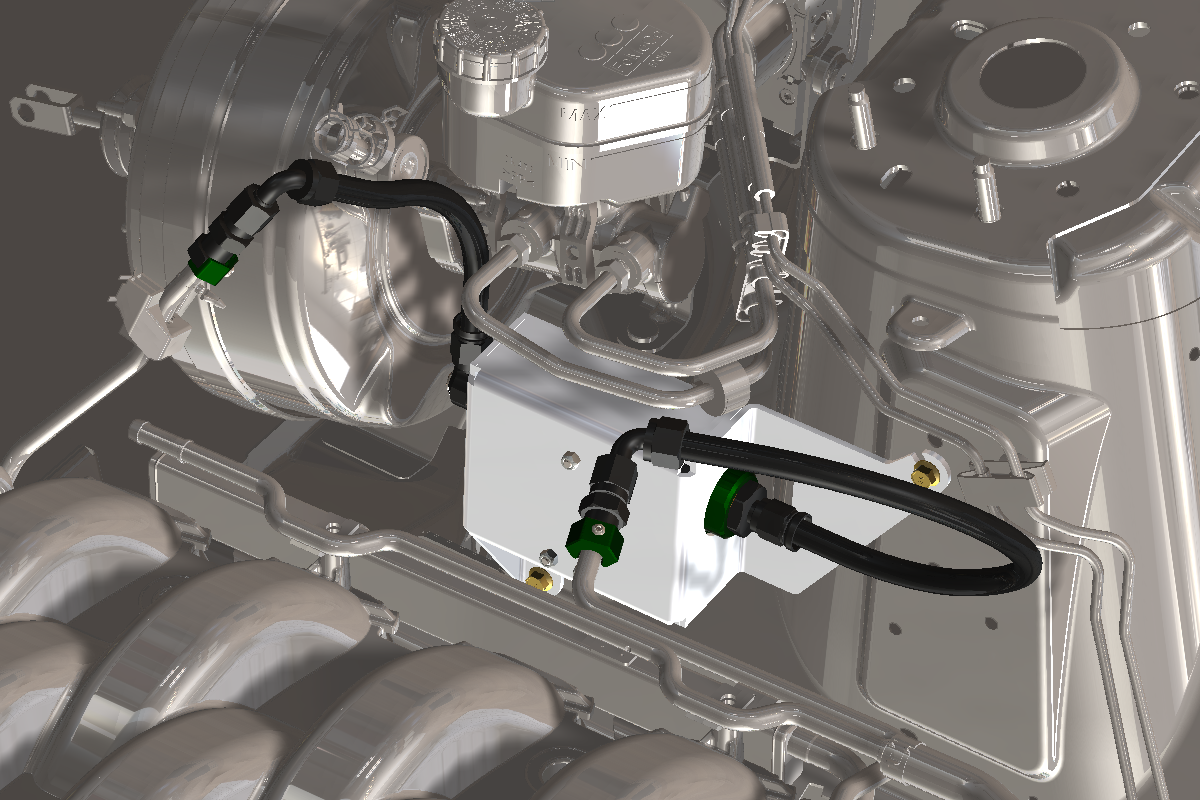

The Radium Engineering fuel filter kit for the 2015 and newer Ford Mustang puts a proper low micron filter back into the feed side after a hanger swap. The large bracket bolts to OEM threaded holes under the brake booster near the LH strut tower, and its reflective finish doubles as a heat shield protecting the fuel system from header heat, with the filter clamped inside it on a two-piece billet mount. 6AN PTFE hoses and fittings adapt to the OEM feed line and fuel rail, and a replacement EVAP line is included to simplify the install. No cutting or drilling.

Choose Your Kit

• Stainless filter (20-1819-03): complete kit with stainless element, hoses, and fittings
• Microglass filter (20-1819-05): complete kit with microglass element for finer filtration
• Mount only (20-1829): heat shield bracket and filter clamp, for builds sourcing their own filter and running custom plumbing

What You'll Feel

• Filtration restored after a hanger install removes the OEM post-pump filter
• The filter shielded from header heat rather than cooking beside it
• PTFE feed lines that handle E85 and methanol without permeation
• A bolt-in install on factory holes with no cutting or drilling
• The EVAP line replaced rather than fought with

Features

• Powder coated aluminum heat shield bracket mounting to OEM threaded holes
• Two-piece anodized billet aluminum filter clamp
• Billet aluminum filter with selectable element
• SAE quick connect to 6AN adapter fittings
• Two 6AN PTFE fuel lines
• 5/16in EVAP line with hose ends and spring clamps
• SAE disconnect tool and stainless steel hardware
• Filters withstand methanol, ethanol, and E85

The Details

This kit exists because of a consequence most hanger buyers do not anticipate: aftermarket Mustang hangers typically eliminate the internal post-pump filter, leaving the injectors with no downstream protection. If you have fitted or plan to fit a hanger, this is not optional equipment.

The mount-only option is the right choice if you already own a filter or intend to run custom plumbing; it supplies the heat shield bracket, the billet clamp, and hardware, without the filter, hoses, or fittings. Note that the SAE disconnect tool is included in the complete kits, which saves a trip to the parts store on install day.

Kit Includes

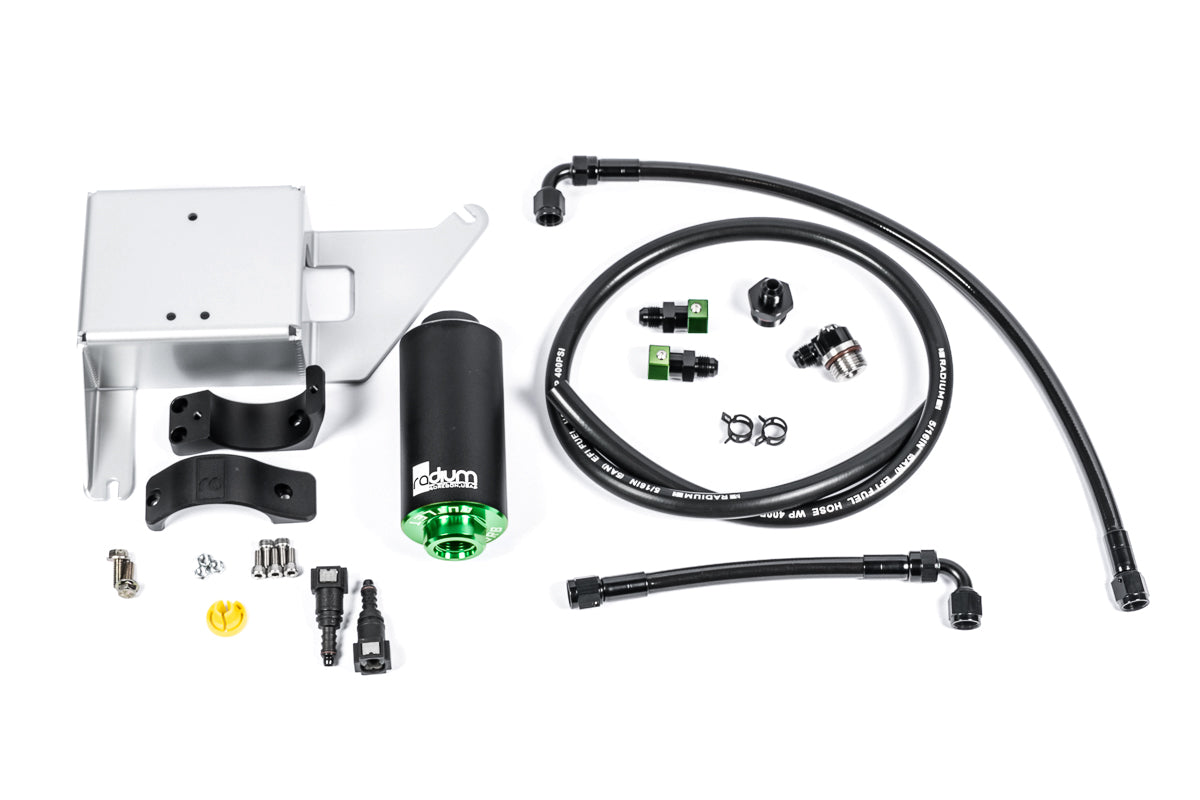

• Complete kits: billet filter with selected element, powder coated heat shield bracket, 2pc billet filter mount, SAE quick connect to 6AN fittings, two 6AN PTFE lines, 5/16in EVAP line and hose ends, spring clamps, hex head flanged screws, stainless hardware, SAE disconnect tool

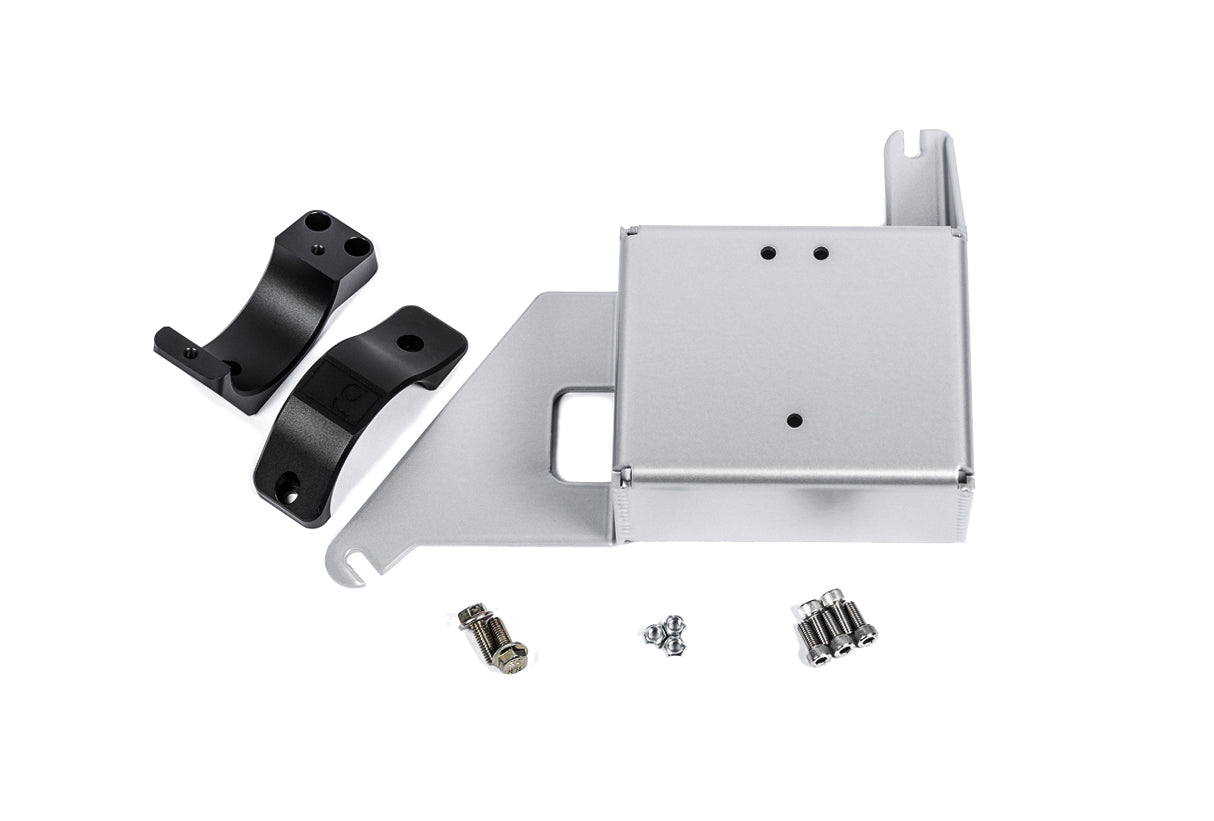

• Mount only: powder coated heat shield bracket, 2pc billet filter mount, hex head flanged screws, stainless hardware
• NOT included on the mount-only option: fuel filter, hoses, and fittings

Applications

• 2015-2023 S550 Ford Mustang, all trims
• 2024 and newer S650 Ford Mustang, all trims

Important Notes

• NOT compatible with RHD Mustangs
• On manual transmission cars, the 2-bolt flange clutch line bracket needs to be moved slightly to clear the fuel filter inlet fitting
• Designed for cars running an aftermarket fuel pump hanger, which removes the OEM post-pump filter
