Radium Fuel Filter Kit 89-05 Mazda MX-5 Miata 20-1021
Radium MX-5 fuel filter kit installed

Vendor:Radium Engineering

Radium Fuel Filter Kit | 1989-2005 Mazda MX-5 Miata (20-1021-03 / 20-1021-05)

SKU: 20-1021-03

Filter Type
Filter Type: Stainless Filter, 10 Micron (20-1021-03)
$218.45
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

The factory Miata filter is a restriction the fuel pump pays for in current and heat.

The Radium Engineering fuel filter kit for the 1989-2005 Mazda MX-5 is an OEM filter replacement that is larger and less restrictive than the factory Mazda unit, so there is less stress on the pump. Lower pre-filter pressure means less current draw and lower fuel temperature, and that in turn permits an increase in fuel flow. Covers both NA and NB generations.

Choose Your Kit

  • Stainless filter, 10 micron (20-1021-03)
  • Microglass filter, 6 micron (20-1021-05)

What You'll Feel

  • A pump drawing less current because it is not fighting a restrictive filter
  • Lower fuel temperature, and more flow as a consequence
  • A straight swap in the factory location using basic hand tools
  • Element choice matched to your fuel and injectors

Features

  • Anodized aluminum filter housing with selectable element
  • Anodized aluminum 2-piece clamp
  • Anodized aluminum fittings
  • Stainless steel hardware
  • Withstands alternate fuels including methanol, ethanol, and E85

The Details

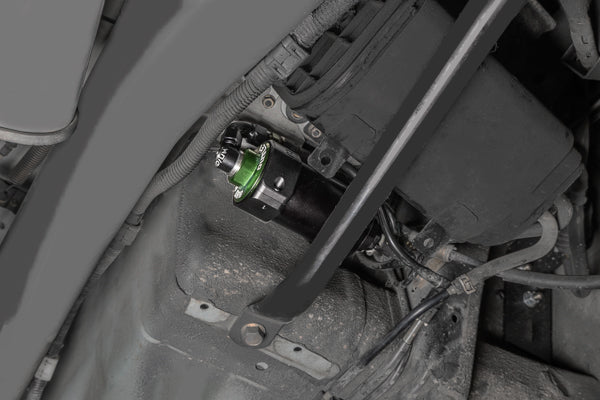

The factory Mazda filter sits between the fuel pump and the fuel rail, just inside the RH rear tire. This kit replaces it in the same location, and the install is quick with no cutting or drilling, requiring only basic hand tools.

One detail that makes this kit cover both generations: the NA chassis uses barbed fittings and the NB chassis uses SAE quick connects, and both variations are supplied. Two fittings will go unused depending on your car, which is expected rather than a packing error.

If you already own a filter or are building custom plumbing, the 20-1585 mount kit provides just the 2-piece clamp and hardware with no filter or plumbing.

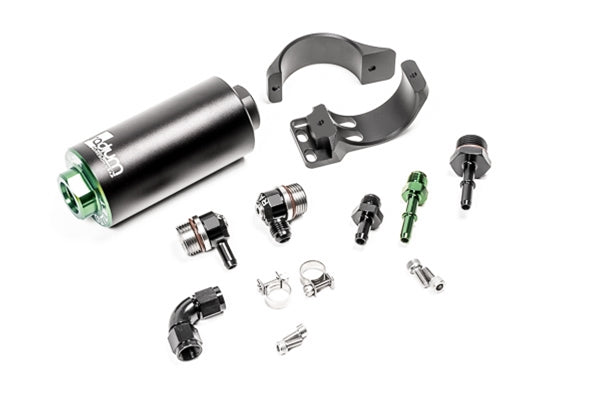

Kit Includes

  • Anodized aluminum filter housing with selected element
  • Anodized aluminum 2-piece clamp
  • Anodized aluminum fittings for both NA barb and NB SAE quick connect
  • Stainless steel hardware

Applications

  • 1989-1997 Mazda MX-5 Miata (NA)
  • 1999-2005 Mazda MX-5 Miata (NB)

Important Notes

  • Fittings for both NA and NB are included; two will not be used
  • No cutting or drilling required
