Radium Fuel Filter Heat Exchanger Mount (20-0221)

Modern pumps dump serious heat into the fuel, and hot fuel is down on density right when the engine wants more of it.

As power levels climb, pump heat has become a real fuel system problem. The Radium Engineering Fuel Filter Heat Exchanger Mount attacks it passively: a custom 6063 aluminum extrusion with cooling fins that clamps directly to a Radium fuel filter body, turning the filter itself into a heat sink. The conductive one-piece design pulls heat out of the fuel passing through the filter and sheds it to passing air. Mount it where airflow lives, such as underneath the vehicle, and it works every second the engine runs.

What You'll Feel

• Cooler, denser fuel reaching the rails on long sessions and hot days
• A mounting solution and a heat exchanger in a single part
• Zero maintenance, zero plumbing, zero electrical draw, just conduction and airflow
• A secure filter mount that doubles down on the fuel system's weakest thermal link

Features

• Custom extrusion from conductive 6063 aluminum with integrated cooling fins
• 1-piece 60mm design clamps directly to the Radium fuel filter body with 2 countersink stainless steel screws
• Four M6x1mm stainless steel screws included for mounting to the chassis
• Anodized black with laser engraved design
• Functions as both the filter mount and a passive fuel cooler

The Details

The physics are simple and reliable: fuel warms as it is pressurized and recirculated, the aluminum filter body conducts that heat, and this mount's finned extrusion multiplies the surface area available to shed it. Direct clamping contact is the whole trick, which is why the extrusion wraps the 60mm filter body and draws tight with countersunk screws rather than isolating it in a rubber cradle. Placement decides how much you get out of it. Radium is explicit that maximum efficiency requires a location where cool air passes through the fins, and underneath the vehicle is the natural home, which also happens to be where most Radium chassis-specific filter installs already live. Four M6 stainless screws handle the chassis side. It fits Radium's 60mm high flow fuel filters, sold separately, and slots into any feed line where the filter already belongs.

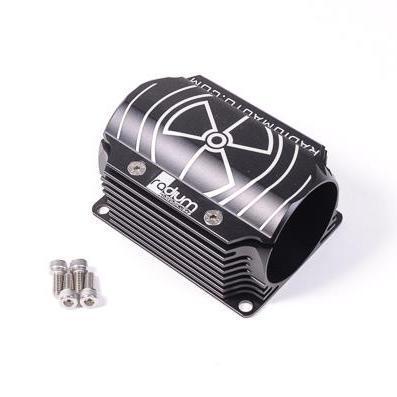

Kit Includes

• 1x Finned 6063 aluminum heat exchanger filter mount
• 2x Countersink stainless steel filter clamping screws
• 4x M6x1mm stainless steel chassis mounting screws

Applications

• Universal: Radium 60mm high flow fuel filters (sold separately)
• Mount in airflow, such as underneath the vehicle, for maximum cooling efficiency
