Radium Fuel Cell and FCST-X Hardware | Universal (20-1989 / 20-0597 / 20-1035 / 18-0066 / 20-0935 / 14-0584)

Fuel cell and surge tank hardware that finishes the installation the tank itself does not cover.

A group of Radium Engineering fuel cell and surge tank components: an FCST-X extension kit, fuel cell foam, the nut ring, fill neck hose, and the DSV vent valve accessories.

Choose Your Part

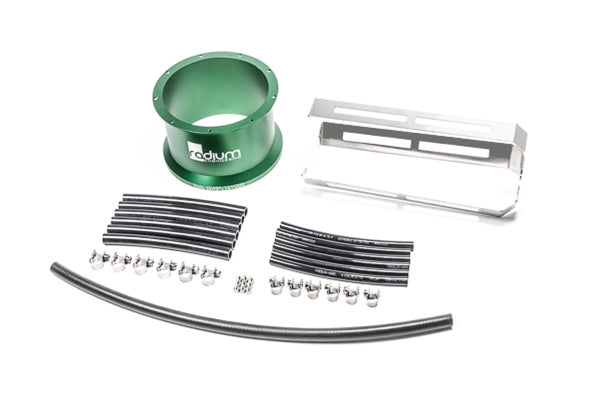

• Extension kit for FCST-X, 3.7in 1.2L (20-1989)
• Fuel fill neck hose kit, 1.5in (20-0597)
• DSV valve extension adapter (20-1035)
• Fuel cell foam (18-0066)
• DSV 12AN ORB to 12AN male high fill (20-0935)
• Fuel cell nut ring, black anodized (14-0584)

What You'll Feel

• Extra surge tank capacity without replacing the FCST-X
• Slosh controlled by foam rather than by driving style
• Vent valves positioned where the cell actually needs them

Features

• FCST-X extension adding 3.7in and 1.2L of capacity
• 1.5in fill neck hose kit
• DSV extension adapter and 12AN high fill fitting
• Fuel cell foam for slosh control
• Black anodized nut ring

The Details

The 20-1989 extension adds 1.2 litres to an existing FCST-X rather than requiring a larger tank, which suits builds that have outgrown their surge capacity after a pump upgrade.

Fuel cell foam suppresses slosh inside the cell, which reduces surge and the aeration that comes with it. It is cut to fit the cell rather than supplied in a fixed shape.

The DSV parts serve the dynamic safety vent valve: the 20-1035 extends its position and the 20-0935 provides a 12AN high fill connection. These pair with the roll over and safety vent valves stocked separately.

Kit Includes

• Selected component with its mounting or sealing hardware
• NOT included: the fuel cell, FCST-X, and vent valve

Applications

• Radium fuel cells and FCST-X fuel cell surge tanks

Important Notes

• The extension kit requires an existing FCST-X
