Radium Fuel Brake Line Retainer Kit | BMW E36 / E46 Including M3 (20-1176)

The factory plastic retainers were sized for factory hard lines. Fit larger hose and they are the weak link under the car.

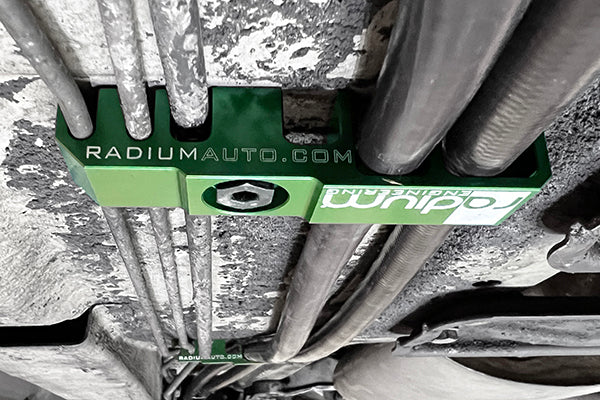

The Radium Engineering fuel and brake line retainer kit for the BMW E36 and E46 replaces the OEM plastic retainers that secure the hard lines beneath the car with billet aluminum clamps sized to support large aftermarket fuel lines. Anodized 6061 aluminum with stainless steel hardware, so it survives the environment it lives in.

What You'll Feel

• Aftermarket lines properly supported instead of hanging on brittle plastic
• No chafing or sag along the chassis run
• Hardware that resists oxidation where the factory parts age out

Features

• Two anodized billet aluminum line retainers
• Two stainless steel adapters
• Stainless steel mounting hardware
• Anodized 6061 aluminum construction
• Sized for 6AN return and 8AN feed lines

The Details

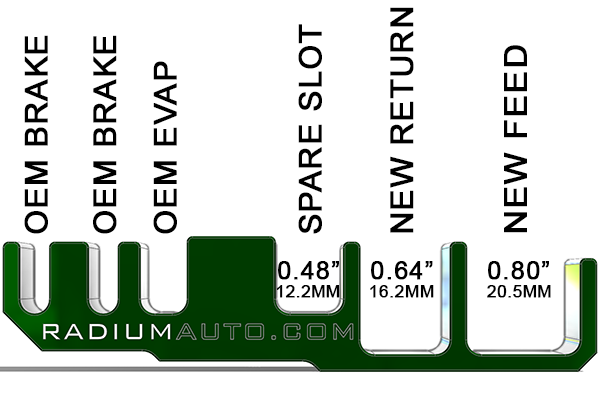

Compatible with Radium EFI rubber hose and Radium PTFE hose in 6AN return and 8AN feed sizes. If you are running something else, whether braided, aluminum, or steel hard line, check the retainer dimensions on Radium's drawing before ordering rather than assuming clearance. Lines are not included. Note that two of these retainers already ship inside the 20-1175 fuel hanger plumbing kit, so this standalone kit is for builds plumbing their own lines or needing additional support points.

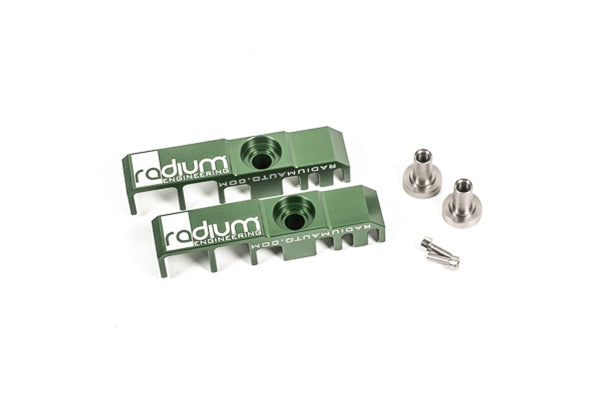

Kit Includes

• Anodized billet aluminum line retainers (x2)
• Stainless steel adapters (x2)
• Stainless steel mounting hardware
• NOT included: aftermarket fuel lines

Applications

• 90-99 BMW E36 316i, 90-98 318i, 92-98 318is, 94-00 318ti, 91-98 320i, 95-98 323i, 91-95 325i, 95-98 328i, 92-99 M3
• 99-05 BMW E46 316i, 98-06 318i, 98-06 320i, 98-00 323i, 01-06 325i, 98-00 328i, 00-06 330i, 03-06 330i ZHP, 00-06 M3, 03-04 M3 CSL
