Radium FCST-X Lift Pump Mounts Shallow-Mid Depth Bosch BR540 | Universal (20-1215)

Bosch BR540 and DW400 pumps are fatter than standard, and standard brackets will not clamp them.

The Radium Engineering FCST-X lift pump mounts, shallow-mid depth, for Bosch BR540 or DW400 are laser cut stainless brackets sized for 46mm OD fuel pumps in shallow fuel cells such as Radium's 6, 10, and 10.5 gallon units and the spare tire cell, whose internal depth is 7.7 inches (196mm) measured from the underside of the fill plate to the bottom of the lift pump filter sock.

Features

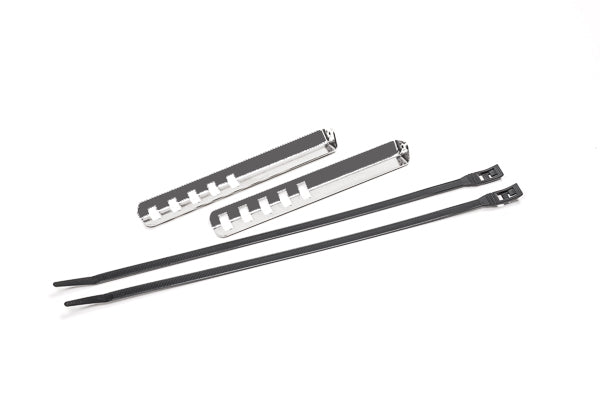

• Two laser cut stainless steel brackets plus two low profile zip ties
• Sized for 46mm OD pumps: Bosch BR540 and Deatschwerks DW400
• Suits 7.7in (196mm) internal cell depth

The Details

Pump diameter drives this choice, not just depth. The 46mm brackets serve the 20-1991-00 FCST-X and ship with it as standard, so buy these as a spare or when moving an existing 20-1991-00 into a shallower cell. For deeper cells with the same 46mm pumps, use the 20-1216. For 39mm OD pumps, the 20-1212 through 20-1214 range applies instead.

Compatible FCST-X Models

• 20-1991-00

Important Notes

• These brackets already come standard with the 20-1991-00 FCST-X
• Not compatible with 39mm OD pumps or with FCST-X models other than the 20-1991-00
