Radium FCST-X Lift Pump Mounts Shallow Depth Universal 20-1212

Vendor:Radium Engineering

Radium FCST-X Lift Pump Mounts Shallow Depth | Universal (20-1212)

SKU: 20-1212

$28.45
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

Shallow cell, short bracket. The lift pump has to sit at the bottom or the surge tank never fills.

The Radium Engineering FCST-X lift pump mounts, shallow depth are laser cut stainless brackets sized for 39mm OD fuel pumps in shallow fuel cells such as Radium's 6, 10, and 10.5 gallon units and the spare tire cell, whose internal depth is 7.7 inches (196mm) measured from the underside of the fill plate to the bottom of the lift pump filter sock.

Features

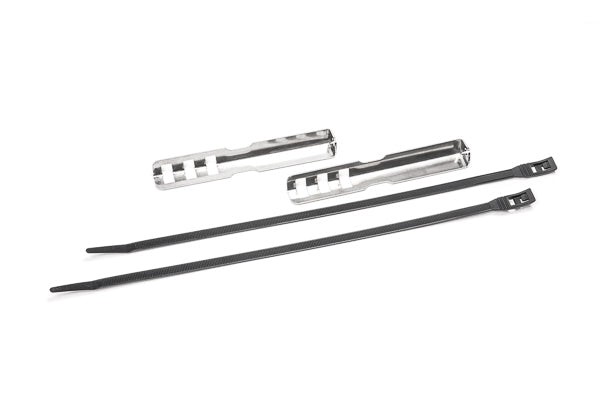

  • Two laser cut stainless steel brackets plus two low profile zip ties
  • Sized for 39mm OD fuel pumps
  • Suits 7.7in (196mm) internal cell depth

The Details

These ship as standard with the 20-1990-XX, 20-1992-XX, 20-1993-00, and 20-1995-00 FCST-X units, so buy them as a spare or when moving an existing unit into a shallower cell. For deeper cells such as Radium's 14 and 22 gallon units, step up to the 20-1213, and for anything deeper again the 20-1214 adds a further 4-1/8 inches.

Compatible FCST-X Models

  • 20-1990-xx (all variations)
  • 20-1992-xx (all variations)
  • 20-1993-00 and 20-1995-00

Important Notes

  • These brackets already come standard with the FCST-X models listed above
  • Not compatible with the 20-1991-00 FCST-X, which uses 46mm OD pumps
