Radium FCST-X Lift Pump Mounts Mid Depth | Universal (20-1213)

SKU: 20-1213

$37.95
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

Deeper cell, longer bracket. Get this wrong and the lift pump sits in air the moment fuel level drops.

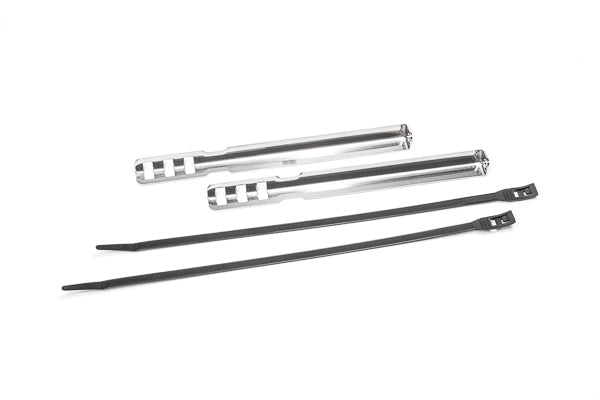

The Radium Engineering FCST-X lift pump mounts, mid depth are laser cut stainless brackets sized for 39mm OD fuel pumps in deeper fuel cells such as Radium's 14 and 22 gallon units, whose internal depth is 11.4 inches (290mm) measured from the underside of the fill plate to the bottom of the lift pump filter sock. Forgiving enough to suit nearby depths.

Features

  • Two laser cut stainless steel brackets plus two low profile zip ties
  • Sized for 39mm OD fuel pumps
  • Suits 11.4in (290mm) internal cell depth

The Details

These ship as standard with the 20-1990-XX, 20-1992-XX, 20-1993-00, and 20-1995-00 FCST-X units, so buy them as a spare or when moving an existing unit into a deeper cell. For shallower cells such as Radium's 6, 10, and 10.5 gallon units, the 20-1212 is the shorter bracket. For a cell deeper than 14 or 22 gallon, the 20-1214 adds another 4-1/8 inches.

Compatible FCST-X Models

  • 20-1990-xx (all variations)
  • 20-1992-xx (all variations)
  • 20-1993-00 and 20-1995-00

Important Notes

  • These brackets already come standard with the FCST-X models listed above
  • Not compatible with the 20-1991-00 FCST-X, which uses 46mm OD pumps
