Radium FCST-X Lift Pump Mounts All Depths | Universal (20-1214)

An extra deep fuel cell leaves the lift pump hanging well above the fuel it is supposed to be picking up.

The Radium Engineering FCST-X lift pump mounts, all depths are laser cut stainless brackets that place the lift pump at the bottom of an unusually deep fuel cell. They run over 4 inches longer than the mid depth brackets included with the FCST-X, adding 4-1/8 inches (105mm) of reach measured from the underside of the fill plate to the bottom of the lift pump filter sock. Designed around 39mm OD fuel pumps, though the length makes them forgiving enough for other pump diameters.

Features

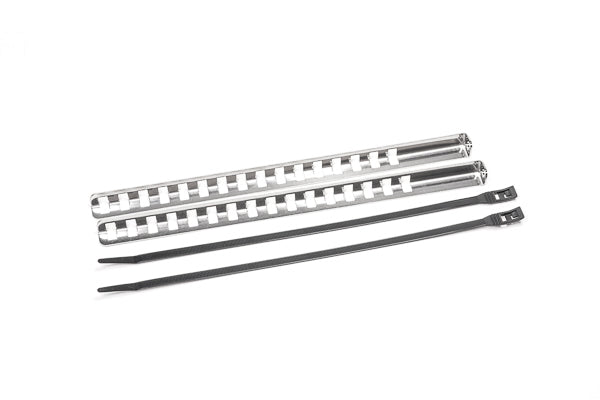

• Two laser cut stainless steel brackets plus two low profile zip ties
• Adds 4-1/8in (105mm) over the standard mid depth 20-1213 mounts
• Designed for 39mm OD fuel pumps
• Cut to length for a specific cell depth

The Details

Unlike the shallow and mid depth brackets, these do not ship with any FCST-X, so they are a deliberate purchase for a cell deeper than Radium's own 14 and 22 gallon units. If your cell sits between sizes, trim the brackets with a band saw or cut-off wheel. Plan for longer hose and wiring, since moving the pump further down means the existing leads may no longer reach.

Compatible FCST-X Models

• 20-1990-xx (all variations)
• 20-1992-xx (all variations)
• 20-1993-00 and 20-1995-00

Important Notes

• Not compatible with the 20-1991-00 FCST-X, which uses 46mm OD pumps and the 20-1215 or 20-1216 mounts
• Longer hose and wiring may be required
