Radium FCST-X 3-Bolt Remote Mount Fill Neck Straight 1.5in Barb | Universal (20-1027)

The simplest way off an FCST-X fill plate: a straight barb and a length of filler hose.

The Radium Engineering FCST-X 3-bolt remote mount fill neck, straight, 1.5in barb bolts to the FCST-X fill plate and presents a machined hose barb for 1.5 inch filler hose, connecting the cell to a body-mounted remote filler. It is the straightforward option when the hose has room to leave the cell without turning hard.

Features

• Straight fill neck for the FCST-X 3-bolt pattern
• Machined hose barb for 1.5in filler hose
• FKM O-ring seal and stainless steel hardware

The Details

This is the cell end of a remote filler system, not the filler itself. It pairs with a body-mounted remote filler such as the 20-0505-V or one of Radium's dry break remote housings, joined by 1.5 inch filler hose. If the cell sits tight against bodywork and the hose must turn immediately, step up to the 20-1047, which adds a 24AN 75 degree elbow and a rotating hose end. Filler hose, fuel cap, and the remote filler are sold separately.

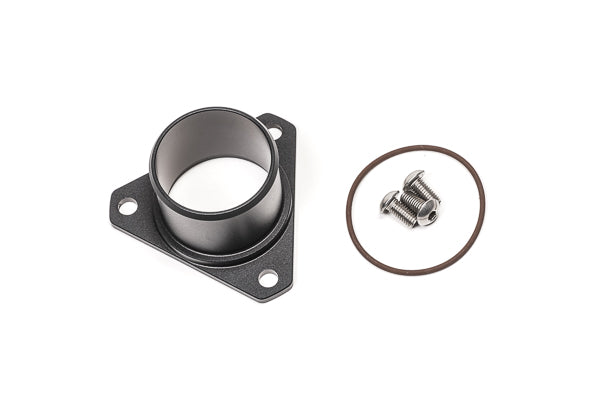

Kit Includes

• Straight flanged fill neck with 1.5in barb
• FKM O-ring seal and stainless steel hardware
• NOT included: filler hose, fuel cap, and remote filler

Applications

• Radium FCST-X units with the 3-bolt fill plate pattern

Important Notes

• 3-bolt pattern is FCST-X specific; older 6-bolt FCST units need the 20-1127 adapter or their own 6-bolt fill neck
