Radium FCST-X 3-Bolt Remote Mount Fill Neck 24AN Elbow 1.5in Barb | Universal (20-1047)

A remote filler needs something on the cell end to receive the hose, and on an FCST-X that means a 3-bolt fill neck.

The Radium Engineering FCST-X 3-bolt remote mount fill neck with 24AN elbow and 1.5in barb bolts to the FCST-X fill plate and gives a body-mounted remote filler somewhere to run its hose. The 24AN fill neck mates to a hose end capable of full 360 degree rotation, so the hose can be clocked to any angle during assembly, and the supplied 75 degree elbow turns immediately into a 1.5 inch barb. A flapper check valve inside provides roll-over protection.

Features

• 24AN flanged fill neck for the FCST-X 3-bolt pattern
• 24AN hose end elbow at 75 degrees for 1.5in ID hose
• Hose end rotates a full 360 degrees for clocking
• Integrated flapper check valve for roll-over protection
• Bespoke 1-7/8in aluminum wrench for tightening the B-nut without marring
• FKM O-ring seal and stainless steel hardware

The Details

This is the cell end of a remote filler system, not the filler itself. It pairs with a body-mounted remote filler such as the 20-0505-V or one of Radium's dry break remote housings, joined by 1.5 inch filler hose. Choose the elbow version when the cell sits close to bodywork or a bulkhead and the hose has to turn immediately; if there is room for a straight run, the 20-1027 is the simpler and cheaper option. Filler hose, fuel cap, and the remote filler are all sold separately.

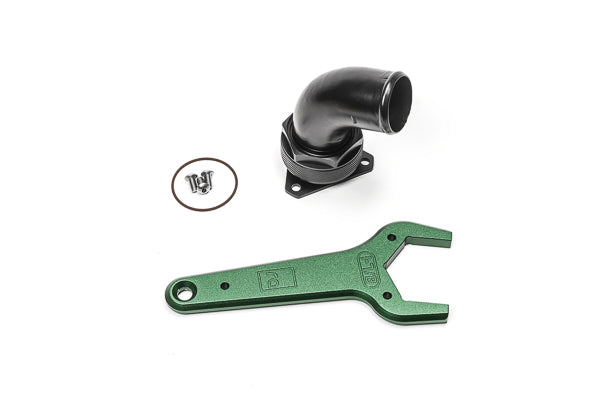

Kit Includes

• 24AN flanged fill neck
• 24AN hose end elbow for 1.5in ID hose
• 1-7/8in aluminum wrench
• FKM O-ring seal and stainless steel hardware
• NOT included: filler hose, fuel cap, and remote filler

Applications

• Radium FCST-X units with the 3-bolt fill plate pattern

Important Notes

• 3-bolt pattern is FCST-X specific; older 6-bolt FCST units need the 20-1127 adapter or their own 6-bolt fill neck
