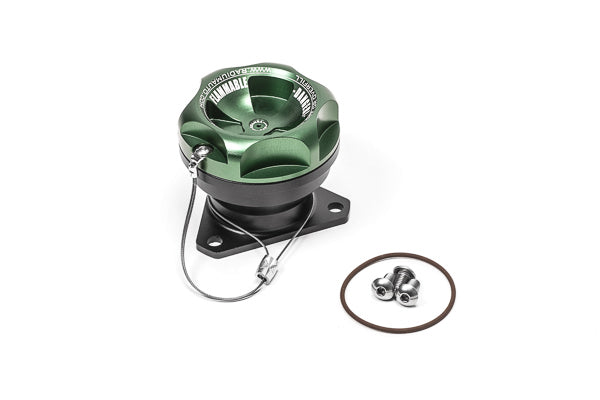

Radium FCST-X 3-Bolt Direct Mount Fill Neck And Cap Vented | Universal (20-1197-V)

If you can reach the cell, you do not need a remote filler at all.

The Radium Engineering FCST-X 3-bolt direct mount fill neck and cap, vented bolts straight to the FCST-X fill plate and gives you a fill point on the cell itself, with no filler hose to route and nothing to mount in bodywork. The anodized aluminum cap is vented for roll-over protection in case the car ends up inverted, and a tether keeps it with the car.

Features

• Anodized aluminum fill cap neck for the FCST-X 3-bolt pattern
• Anodized aluminum vented cap with roll-over protection
• Tether for the cap
• FKM O-ring gasket seal and stainless steel hardware

The Details

Direct mount is the simplest fill arrangement available and the cheapest, since it eliminates the remote filler, the filler hose, and the cell-end fill neck entirely. It only works when the cell is accessible from outside the car, which is why remote systems exist. If the filler hole needs closing off rather than filling through, the 20-1060 block-off kit is the FCST-X part. The cap alone is available as the 20-0148-V, which fits all 3-bolt direct fillers and the discontinued 6-bolt ones.

Kit Includes

• Anodized aluminum fill cap neck
• Anodized aluminum vented cap with tether
• FKM O-ring gasket seal and stainless steel hardware

Applications

• Radium FCST-X units with the 3-bolt fill plate pattern

Important Notes

• Fits FCST-X only and does not fit the older 6-bolt FCST; those need the 20-1127 adapter to use this filler
