Radium FCST Adapter 6-Bolt To 3-Bolt Filler | Universal (20-1127)

Radium moved from a 6-bolt filler pattern to a 3-bolt one. This is the bridge for everyone still running the old plate.

The Radium Engineering FCST adapter, 6-bolt to 3-bolt filler lets an older 6-bolt fill plate FCST accept a modern 3-bolt FCST-X direct mount fuel filler. It bolts to the existing 6-bolt flange and presents the current 3-bolt pattern, opening up the newer filler range to an installation that would otherwise be limited to discontinued parts.

Features

• Adapts a 6-bolt FCST fill plate to the 3-bolt FCST-X filler pattern
• Anodized aluminum construction
• Gasket and stainless hardware for the flange seal

The Details

The point of this part is future-proofing an older cell. As Radium's 6-bolt filler options thin out, this adapter keeps an existing FCST serviceable using current 3-bolt fillers such as the 20-1197-V direct mount fill neck and cap. Note the direction: it goes on an FCST, not an FCST-X, since an FCST-X already has the 3-bolt pattern and needs no adapter.

Kit Includes

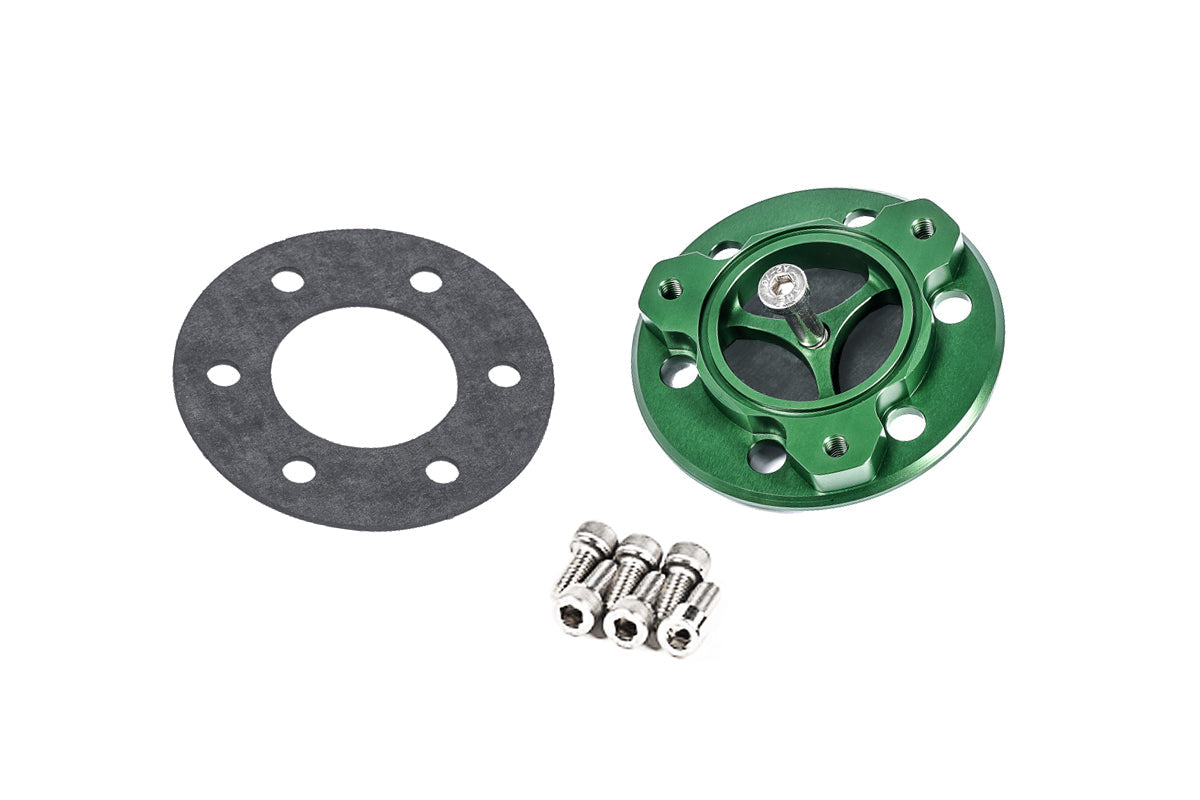

• 6-bolt to 3-bolt adapter plate with gasket and stainless hardware
• NOT included: the 3-bolt filler itself

Applications

• Radium FCST units with the 6-bolt fill plate pattern

Important Notes

• Does not fit the FCST-X, which already uses the 3-bolt filler pattern
