Radium Engineering VTE Dual Catch Can Kit | 1993-2002 Toyota Supra MKIV (20-0387-FL)

The 2JZ's two crankcase circuits each earn their own can, and both stay street legal doing it.

The Radium Engineering VTE Dual Catch Can Kit for the MK4 Supra covers the whole ventilation picture: the catch cans vent-to-engine permitting a true PCV system, functioning completely independent of each other and NOT venting to atmosphere, making them emissions and track legal. Closed loop systems remove the oil and sludge from the PCV gasses before routing to the engine to be burned, promote negative crankcase pressure for optimal performance, and prevent unwanted oil vapors from entering the cabin. One catch can plumbs inline with the PCV valve and retains its factory function. Fluid Lock 2-step baffled cans, designed for 8AN and 6AN hose sizes, with the chassis-specific mounting and hardware to finish both circuits.

What You'll Feel

• Both crankcase circuits protected, PCV and CCV alike, on a platform famous for big blow-by
• Intake, intercooler, and manifold staying clean as boost climbs
• Emissions and track legality from the closed-loop, vent-to-engine architecture
• Negative crankcase pressure promoted for ring seal and performance
• No oil vapor drifting into the cabin

Features

• Dual Fluid Lock catch can kit for the MK4 Supra; cans function independently
• Vent-to-engine (VTE) closed loop; does NOT vent to atmosphere; emissions and track legal
• One can inline with the PCV valve, retaining factory function; the second serving the CCV circuit
• Designed for 8AN and 6AN hose sizes; 2-step baffled internals with service dipsticks
• Chassis-specific mounting, fittings, hoses, and hardware included

The Details

The JZ's ventilation splits by load like most engines, with the PCV circuit flowing under metered vacuum at idle and cruise while the CCV side carries the boost-era exhale, and covering only one circuit leaves the other feeding oil downstream. The dual kit's independence means each can services on its own dipstick schedule, checked at 3 to 4 weeks initially, and Radium's press-in 10AN valve cover fittings can integrate with the kit for builds wanting the larger connections, with Radium's guidance available for that configuration. Closed-loop routing burns what the engine produces and keeps the tech inspector satisfied.

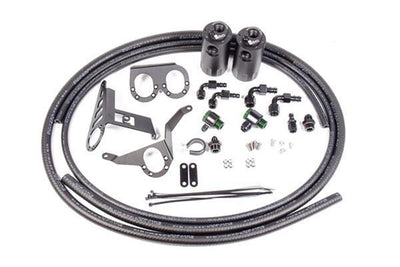

Kit Includes

• 2x Radium Fluid Lock catch cans with dipsticks
• Chassis-specific mounting brackets, fittings, hoses, and hardware for both circuits

Applications

• 1993-2002 Toyota Supra MKIV (JZA80, 2JZ-GTE)
• PCV and CCV circuits; pairs with Radium 10AN press-in valve cover fittings
