Radium Engineering Port Injection Kit | 2020-2026 Toyota Supra (20-0753)

The B58TU's direct injection built its legend at stock power; highly modified builds need a second act.

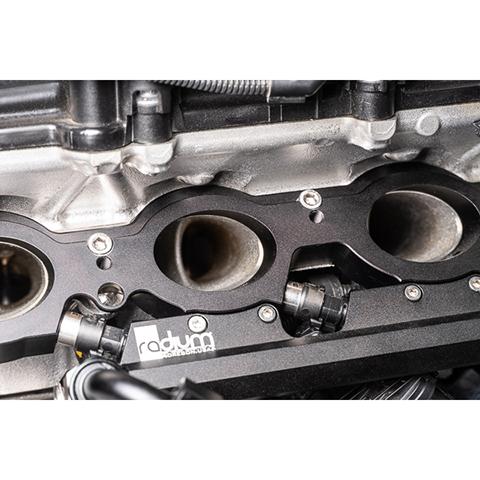

The Radium Engineering Port Injection Kit for the MK5 Supra installs between the intake manifold and the cylinder head, permitting the use of port injectors for the additional fuel required for highly-modified B58TU engines while the OEM direct injection system carries on untouched underneath. The fuel rail is CNC machined from extruded 6063 aluminum and laser etched, with both end ports machined 8AN ORB (3/4"-16), and the injectors mount at a calculated angle ensuring proper spray into the center of the intake ports without interference from surrounding components. Relocation hardware lets the OEM engine vanity cover be reused, with four adapters installing into its underside to make up for the manifold shift. Compatible with all fuel types including E85. Injectors and plumbing sold separately.

What You'll Feel

• The B58's DI fueling ceiling removed, with port injectors carrying built-motor demand
• A real E85 path for the single-turbo and upgraded-turbo Supra builds
• Proper atomization from injectors angled into the center of each intake port
• The factory engine bay look preserved, with the vanity cover reinstalling on the included adapters
• Stock DI drivability at idle and cruise, since the kit adds rather than replaces

Features

• PIK adapter plate installs between the intake manifold and cylinder head; does NOT replace OEM direct injection

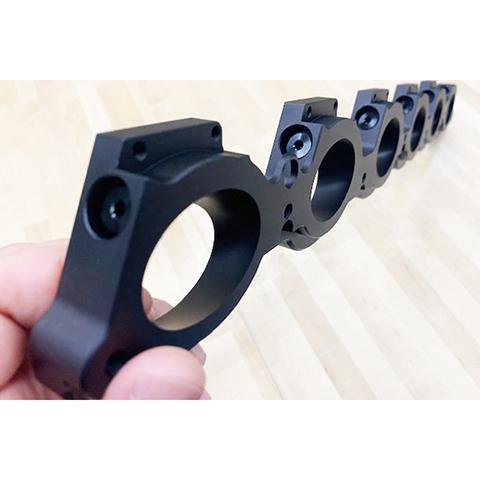

• Fuel rail CNC machined from extruded 6063 aluminum, laser etched; 8AN ORB (3/4"-16) end ports
• Injectors mounted at a calculated angle for proper spray into the intake port centers
• Adapter plate usable as a simple intake manifold spacer without the rail (requires 2AN ORB plugs)

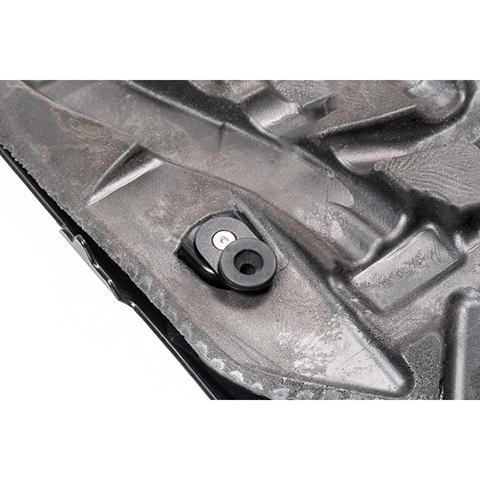

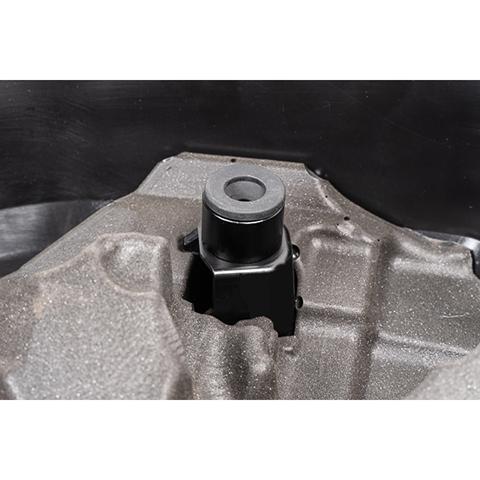

• Vanity cover relocation hardware included (4 adapters)
• All fuel types including E85; injectors NOT included

The Details

Two system notes from Radium shape the build plan. First, because the PIK spaces the intake manifold off the head, an aftermarket charge pipe will be required for the throttle body connection, so budget that alongside the kit. Second, fuel supply is a fork: the 20-0753-PK plumbing kit provides the adapter fittings and hose connecting the rail to the OEM fuel line in under ten minutes, while high horsepower builds can run an independently regulated port injection pump system instead via Radium's dedicated hanger, in which case the PK is unnecessary. The spacer-only option is a quiet bonus, letting the plate serve as a manifold spacer with 2AN ORB plugs before the fueling stage of the build arrives. Injector control via your ECU or auxiliary controller completes the system.

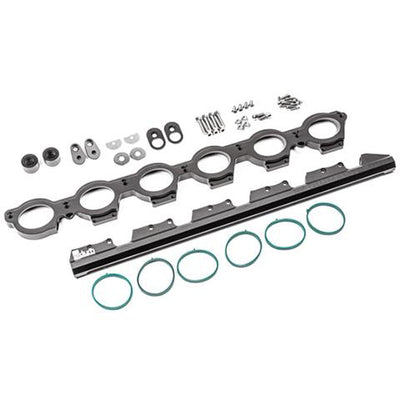

Kit Includes

• 1x PIK adapter plate
• 1x CNC machined 6063 port injection fuel rail (8AN ORB end ports)
• Vanity cover relocation hardware (4 adapters) and mounting hardware
• Injectors, plumbing kit (20-0753-PK), charge pipe, and controller NOT included

Applications

• 2020+ Toyota GR Supra 3.0 (B58TU); 2019+ BMW Z4 M40i (G29, B58TU) per Radium's platform coverage
• Aftermarket charge pipe required for the throttle body connection
• Supplements OEM direct injection; does not replace it
