Radium Engineering PCV Catch Can Kit | Scion FR-S / Subaru BRZ / Toyota GT86 (20-0901-FL)

The FA20 is direct injected, so nothing washes the intake valves clean.

The Radium Engineering PCV Fluid Lock catch can kit for the Scion FR-S, Subaru BRZ, and Toyota GT86 intercepts oil and water condensation before they reach the intake manifold. Closed loop, so it does not vent to atmosphere: filtered air routes back to the engine to be burned, keeping it emissions and track legal.

What You'll Feel

• An intake tract that stays clean on an engine with no port injection to wash it
• Fluid Lock protection: the can cannot overfill and dump contaminants back into the intake
• A closed system that passes tech and keeps oil smell out of the cabin
• Easy inspection through the O-ring sealed dipstick

Features

• Patented Fluid Lock system preventing reservoir overfill
• 7 fluid ounce can with O-ring sealed dipstick
• Large 10AN ORB inlet and outlet ports, 4AN ORB drain port
• 2-step oil separation baffling
• Vehicle specific anodized mounting bracket

The Details

This is the PCV side for the first generation cars. The 2022 and newer BRZ and GR86 use the 20-0911-FL PCV kit instead. The CCV kit (20-0902-FL) spans both generations, so a complete two-can setup on an earlier car pairs this with that one.

The PCV hose sees metered vacuum at idle, steady cruise, and deceleration, drawing crankcase vapour and oil sludge into the manifold. No fixed emptying interval applies: check the dipstick at three to four weeks and set your own schedule.

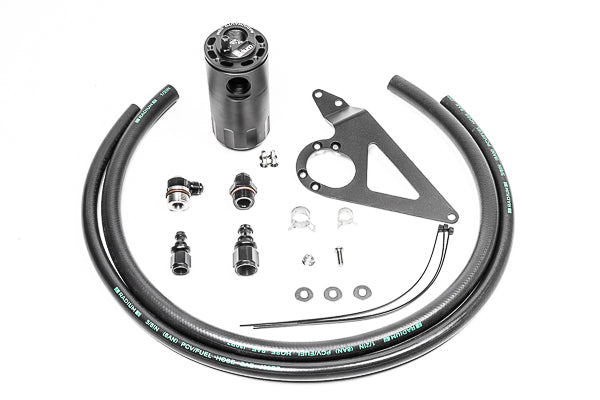

Kit Includes

• Fluid Lock catch can with integrated dipstick
• Vehicle specific anodized mounting bracket
• Hose, hose ends, and adapter fittings
• Stainless steel mounting hardware

Applications

• Scion FR-S, Subaru BRZ, and Toyota GT86 (first generation)

Important Notes

• For the first generation cars; 2022+ BRZ and GR86 use the 20-0911-FL PCV kit
