Radium Engineering PCV Catch Can Kit | 1996-2001 Toyota Chaser / Mark II / Cresta (20-0738-FL)

A built 1JZ or 2JZ pushes hard past the rings, and the PCV circuit sends it all back to the manifold.

The Radium Engineering PCV Fluid Lock catch can kit for the 1996-2001 Toyota Chaser, Mark II, and Cresta pulls oil and water condensation out of the crankcase gases before they reach the intake manifold. Closed loop, so it does not vent to atmosphere: filtered air routes back to the engine to be burned, keeping it emissions and track legal and keeping oil smell out of the cabin.

What You'll Feel

• A manifold that stays clean instead of collecting sludge after every hard run
• On a boosted JZ, an intercooler that keeps its efficiency
• Fluid Lock protection: the can cannot overfill and dump contaminants back into the intake
• A closed system that passes tech and keeps oil smell out of the cabin

Features

• Patented Fluid Lock system preventing reservoir overfill
• 7 fluid ounce can with O-ring sealed dipstick
• Large 10AN ORB inlet and outlet ports, 4AN ORB drain port
• 2-step oil separation baffling
• Vehicle specific anodized mounting bracket

The Details

The PCV hose sees metered vacuum at idle, steady cruise, and deceleration, drawing crankcase vapour, unspent fuel, and oil sludge into the manifold right after a high load run. On a JZ making real power, those runs are frequent and the deposits accumulate quickly.

No fixed emptying interval applies: check the dipstick at three to four weeks and set your own schedule. This pairs naturally with the Radium 20-0940 fuel pump hanger for the same chassis.

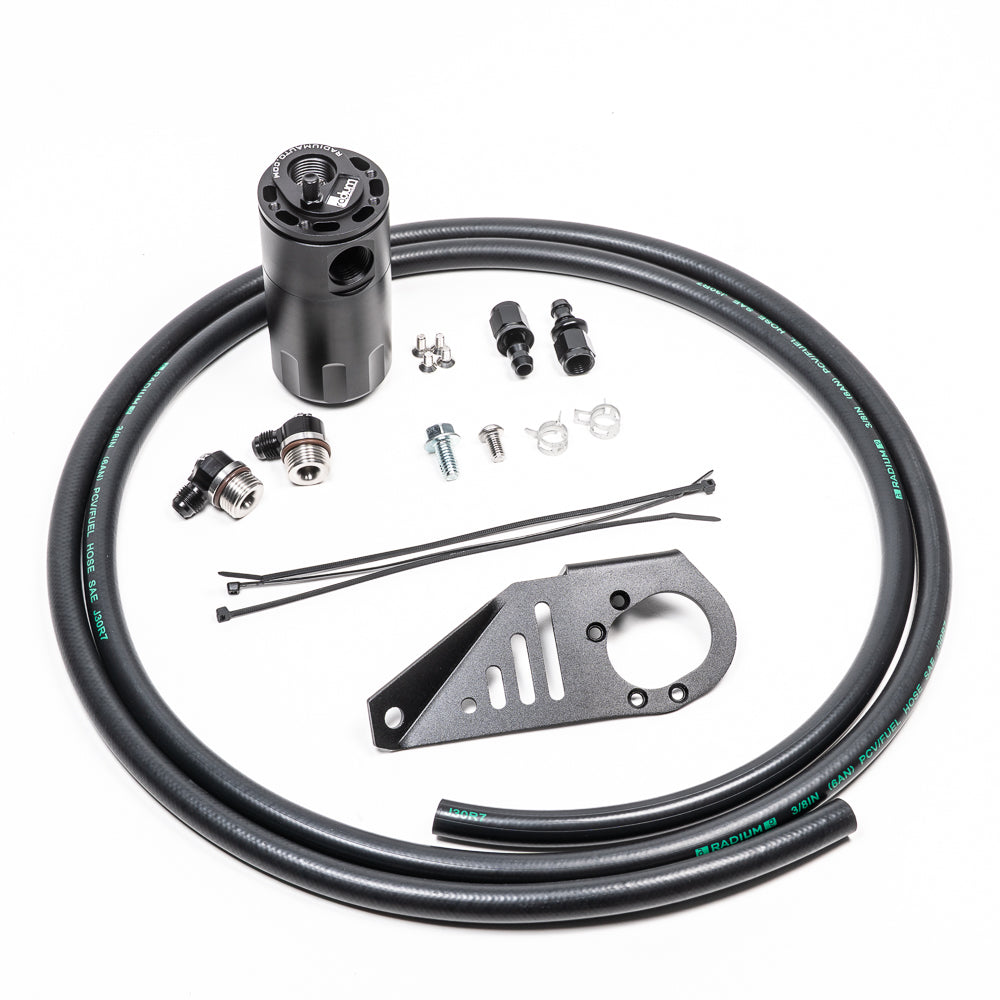

Kit Includes

• Fluid Lock catch can with integrated dipstick
• Vehicle specific anodized mounting bracket
• Hose, hose ends, and adapter fittings
• Stainless steel mounting hardware

Applications

• 1996-2001 Toyota Chaser, Mark II, and Cresta (X100)
