Radium Fuel Rails | 2009-2015 Corvette ZR1/Camaro ZL1/Cadillac CTS-V (20-0362)

The LS9 and LSA came supercharged from the factory; their fuel rails were the part GM left for you.

Blower V8s eat fuel system headroom fast, and the factory rails limit what the platform's famous appetite for boost can use. The Radium Engineering Fuel Rails for GM LS9/LSA Engines are the upgrade-rail answer: two rails CNC machined from 6061 aluminum, black anodized and laser etched, each carrying six 8AN ORB threaded ports for twelve in all. Polished stainless steel brackets attach to the factory rail mounting points with no vehicle modifications, the 14mm ID injector bores match OEM so factory injectors and clips carry over, and everything is compatible with all fuels including E85. Four 8AN ORB plugs are included for the end ports that sit too close to surrounding components to use.

What You'll Feel

• Rail volume and port access sized for what a supercharged V8 actually flows
• Twelve ports of plumbing freedom: feeds, crossovers, dampers, gauges, sensors
• A no-modification install on factory mounting points with stainless brackets
• Factory injectors and clips reused in true 14mm OEM-spec bores
• E85 confidence across the whole assembly

Features

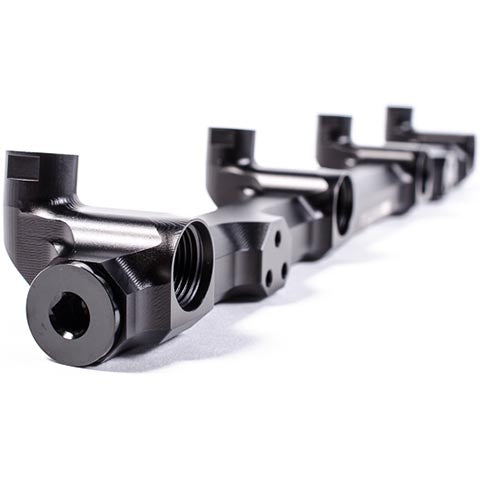

• 2x fuel rails CNC machined from 6061 aluminum, black anodized, laser etched
• Six 8AN ORB ports per rail (12 total) for optional adapters and accessories
• Polished stainless steel mounting feet attach to factory rail mounting points; no vehicle modifications
• 14mm ID injector bores compatible with factory injectors, with provisions for the factory injector clips
• Upgrade rail: OEM or OEM-equivalent injectors only (matching height and O-ring dimensions)
• 4x 8AN ORB plugs included for end ports blocked by nearby components; all fuel types including E85

The Details

Radium classifies this as an upgrade rail, which sets the injector rule: factory injectors reinstall directly, and any upgrade must be OEM-equivalent in height and upper/lower O-ring dimensions, with flow rates chosen by your tuner and dimensions confirmed by the injector manufacturer, since Radium makes no injector recommendations. The port count is the customization canvas, and Radium's advice is worth following literally: mock the rails up on the engine before purchasing adapter fittings and accessories, because surrounding engine components can interfere with access to some ports and the mock-up tells you which of the twelve are truly available on your particular car. For stock-style plumbing, Radium's separate LS9/LSA plumbing kit adapts the OEM feed line via SAE quick connect into two 6AN PushLok lines supplying each rail, with plugs for everything unused; sold separately.

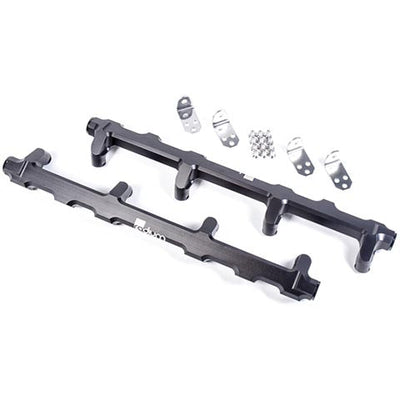

Kit Includes

• 2x Black anodized laser etched aluminum fuel rails
• 4x Fuel rail end fittings, 8AN ORB plugs
• 4x Stainless steel mounting feet
• 12x Stainless steel hardware
• Plumbing kit (20-0545) and additional adapter fittings sold separately

Applications

• 2009-2013 Chevrolet Corvette ZR1 (LS9)
• 2012-2015 Chevrolet Camaro ZL1 and 2009-2015 Cadillac CTS-V (LSA)
• 2013-2017 HSV GTS, Clubsport R8, Maloo R8, GTSR, GTSR Maloo, GTSR W1, Senator Signature; 2014+ Equus Bass 770
• Mock up rails before buying adapter fittings to verify port access
