Radium Engineering Fuel Rail Plumbing Kit | 2020-2026 Toyota Supra 3.0 (20-0753-PK)

SKU: 20-0753-PK

Sale price$94.95Regular price $99.95
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

Ten minutes stands between the Supra PIK's rail and the factory fuel line.

The Radium Engineering Fuel Rail Plumbing Kit for the MK5 Supra permits the OEM low pressure fuel feed hose to be connected to the rear of the port injection fuel rail, and it installs in under 10 minutes: an SAE quick connect tee PTFE hose assembly taps the factory line, a preassembled 6AN PTFE fuel hose carries feed to the rail, an 8AN ORB to 6AN male fitting lands it, and an 8AN ORB plug seals the unused port. The fast, factory-line path for completing a Radium B58 PIK installation.

What You'll Feel

  • The PIK plumbed and running the same afternoon it was installed

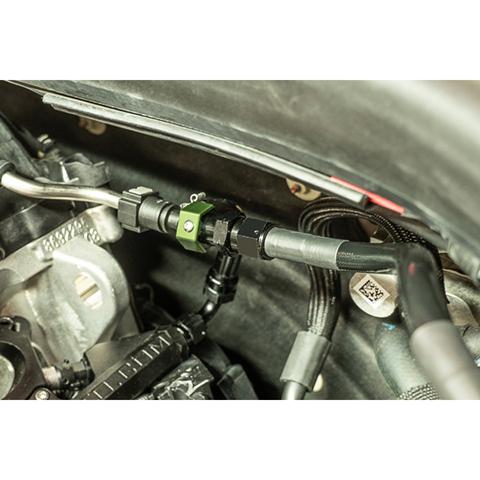

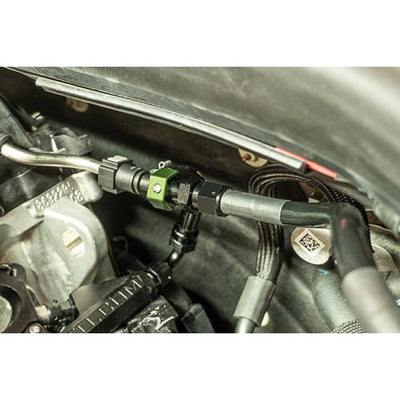

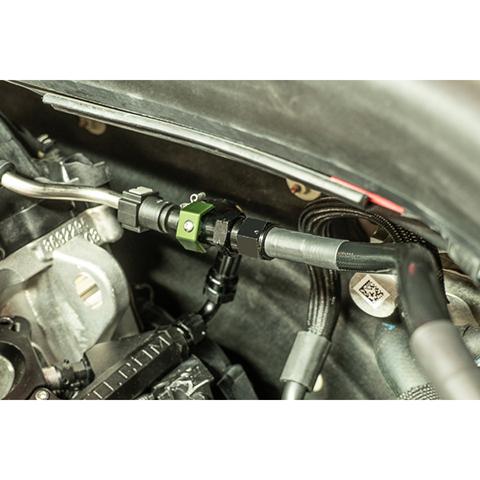

  • Factory fuel supply tapped cleanly through a proper quick connect tee, no line cutting
  • All-fuel confidence from PTFE hose, E85 included
  • The unused rail port properly plugged with ORB hardware

Features

  • Connects the OEM low pressure fuel feed hose to the rear of the Radium port injection rail
  • Installs in under 10 minutes
  • SAE quick connect tee PTFE hose assembly, preassembled 6AN PTFE fuel hose
  • 8AN ORB to 6AN male fitting and 8AN ORB plug included
  • For the Radium MK5 Supra Port Injection Kit (20-0753, sold separately)

The Details

This kit serves the shared-supply architecture, where the port injectors drink from the same low pressure feed as the OEM system, which suits a wide band of builds and keeps installation trivially fast. Radium's own guidance marks the fork in the road: if using an independent port injection fuel system, built around the Radium 20-0760 fuel pump hanger with its own regulated supply, this plumbing kit would not be required, since that architecture feeds the rail from its own pump. Choose the path that matches the horsepower plan, and for the shared-feed majority, this kit is the ten-minute answer. PIK sold separately; O-rings lubricated at installation as always.

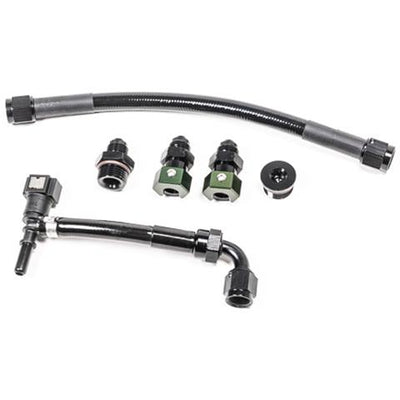

Kit Includes

  • 1x SAE quick connect tee PTFE hose assembly
  • 1x Preassembled 6AN PTFE fuel hose
  • 1x 8AN ORB to 6AN male fitting
  • 1x 8AN ORB plug
  • Port injection kit (20-0753) NOT included

Applications

  • 2020+ Toyota GR Supra 3.0 (B58) running the Radium port injection kit
  • Not required with independent port injection fuel systems (Radium 20-0760 hanger)
