Radium Engineering Fuel Rail Kit | 2003-2006 Mitsubishi Evolution 8/9 (20-0119-12)

The factory Evo 8/9 rail feeds your injectors through a 0.22" orifice; that math stops working as the power climbs.

The OEM 4G63 fuel rail inlet flange necks flow down to a restrictive 5.7mm passage, a bottleneck most aftermarket rails simply copy. The Radium Engineering Fuel Rail Kit for the Evo 8/9 eliminates that flange entirely, pairing a large 0.69" internal bore with 8AN ORB ports that adapt to common AN fuel hose on both ends of the rail. CNC machined from solid 6061 aluminum, anodized, and laser etched, it is safe for all fuels including E85. This is the basic rail, ready for the custom fuel system you are building around it.

What You'll Feel

• Fuel delivery that keeps up when big injectors and E85 multiply the demand
• No more factory inlet restriction choking the rail at high flow
• Straightforward adaptation to AN hose at either end of the rail
• Direct mounting options for a Radium regulator, damper, or gauge at the ports
• A finish that looks right at home in a built engine bay

Features

• Large 0.69" internal bore supports all necessary engine power requirements
• Eliminates the restrictive OEM 2-bolt inlet flange with its 0.22" (5.7mm) orifice
• CNC machined from solid 6061 aluminum, anodized and laser etched
• Ports tapped 8AN ORB, accepting Radium adapter fittings, direct mount regulators, pulse dampers, and gauge adapters
• Compatible with all fuel types including alcohol mixtures such as E85
• Compatible with factory or OEM-equivalent height injectors

The Details

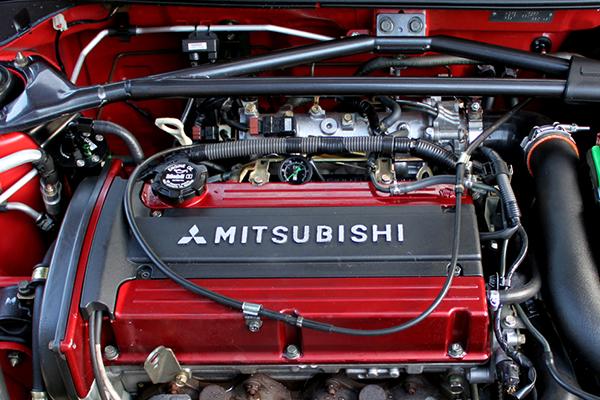

Rail volume and inlet area set the ceiling on how consistently fuel reaches each injector, and the 4G63's factory setup gives away both. This rail's 0.69" bore acts as a pressure reservoir across all four injectors while the full-size 8AN ORB ports remove the choke point at the inlet. Building around it is a matter of picking fittings: adapt the inlet to your feed hose, then run a direct mount regulator, pulse damper, or gauge adapter at the remaining ports, checking clearance for larger accessories against Radium's dimensional drawings. Injector compatibility is worth a careful look, since the rail is designed around factory or OEM-equivalent injectors, meaning the same height and O-ring dimensions as stock; confirm with your injector supplier when upgrading. All fittings are sold separately on this basic kit. For an easy hookup to the factory feed system and regulator, Radium's Evo 7-9 plumbing kit is available separately.

Kit Includes

• 1x Radium Evo 8/9 fuel rail with mounting hardware
• Fittings NOT included, sold separately

Applications

• 2003-2005 Mitsubishi Lancer Evolution VIII (4G63)
• 2006 Mitsubishi Lancer Evolution IX (4G63)
• Compatible with factory or OEM-equivalent height fuel injectors
