Radium Engineering Fuel Pump Hanger | 2016+ Honda Civic (20-1080)

The 10th-gen Civic's fuel system was sized for commuting; the tuning scene had other plans.

The Radium Engineering Fuel Pump Hanger for the 2016+ Honda Civic upgrades delivery at the source: a drop-in replacement for the factory in-tank module supporting high performance aftermarket pumps, built in anodized aluminum with Radium's high current electrical hardware and fuel-resistant materials throughout. The delivery foundation for boosted L15 and K20C swaps chasing power the OEM hanger cannot feed. Pumps sold separately.

What You'll Feel

• Fuel delivery headroom for big-turbo 1.5T and Type R-powered builds
• Full pump current through proper high current electrical hardware
• E85 and flex fuel readiness from the compatible materials
• A drop-in install in the factory hanger location

Features

• Drop-in fuel pump hanger for the 2016+ Honda Civic (10th gen family)
• Supports high performance aftermarket pumps (sold separately)
• Anodized aluminum construction; high current electrical hardware
• Gasoline and ethanol compatible materials

The Details

The 10th-gen platform's tuning arc is familiar, with the 1.5T responding hard to bolt-ons and the FK8-adjacent swap scene pushing further, and the low-pressure side quietly becomes the ceiling as injector duty and boost climb; the hanger resolves it at the tank rather than with band-aid inline pumps. Pump selection matches the power target and fuel per Radium's compatibility documentation, wiring upgrades follow with a Radium DIY kit per pump where current demand warrants, and the direct-injected engines keep their factory high pressure systems fed with the volume they actually need. Verify your specific model variant against Radium's fitment listing.

Kit Includes

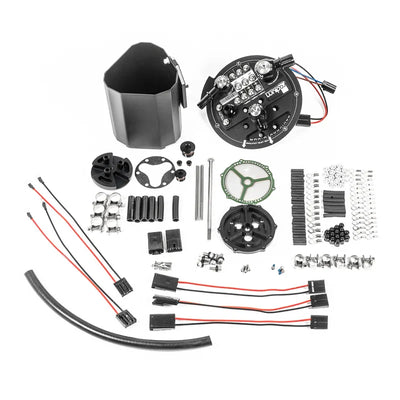

• 1x Fuel pump hanger with electrical hardware (20-1080)
• Fuel pumps NOT included

Applications

• 2016+ Honda Civic (10th generation family; verify variant fitment)

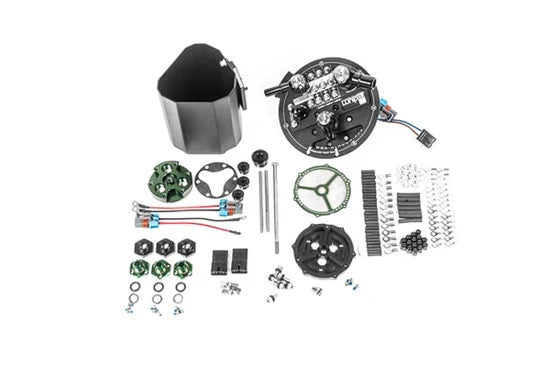

• Companion SKUs serve related configurations per Radium's catalog

Complete the System

The hanger handles the tank side. On FK8 Type-R cars, Radium's plumbing kit carries the supply the rest of the way to the engine:

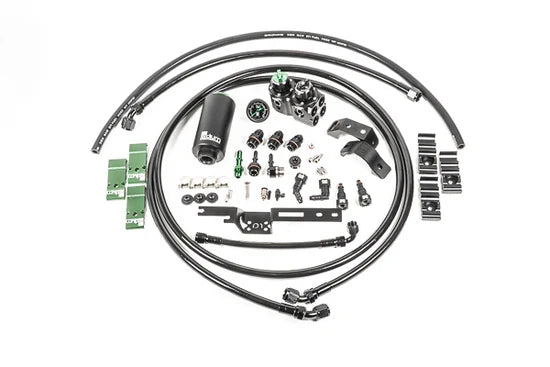

• Fuel hanger plumbing kit, FK8 (20-1085-03 / 20-1085-05): 8AN PTFE feed behind the tank, high flow filter on a billet tank-side mount, billet fuel and brake line retainers replacing the OEM plastic clips, and a firewall-mounted dual fuel pressure regulator with a 0-100 psi gauge. Tested and installed on the FK8 Type-R
• Port injection kit, Civic Type-R (20-0428): the second fueling stage for K20C1 builds past the direct injection ceiling; the plumbing kit's DFPR carries a dedicated regulated outlet reserved for it
