Radium Engineering fuel filter kit 20-0332 for Ford Focus RS at Tuned By Shawn

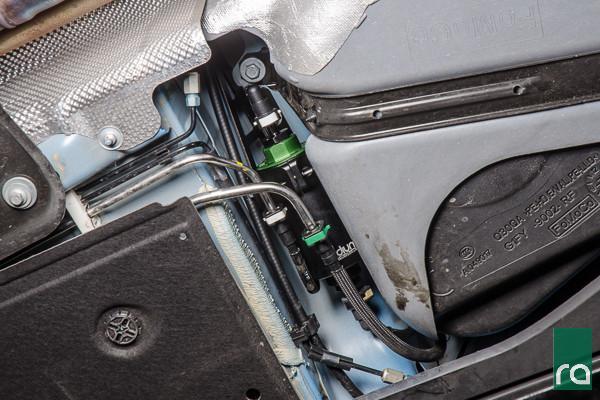

Radium serviceable filter replacing OEM Focus RS unit, Tuned By Shawn

Vendor:Radium Engineering

Radium Engineering Fuel Filter Kit | 2016-2017 Ford Focus RS (20-0332)

SKU: 20-0332-05

Filter Element
Filter Element: 6 Micron Micro-Fiberglass
Sale price$185.20Regular price $194.95
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

The Focus RS runs a mechanical high-pressure pump downstream of its filter, which makes that filter the guardian of the priciest part in the fuel system.

The Radium Engineering Fuel Filter Kit for the 2016-2018 Focus RS replaces the OEM fuel filter plumbed between the electric lift pump and the mechanical high-pressure pump with a serviceable Radium filter assembly. Installation takes minutes with no cutting or drilling, and the element choice is yours: 6 micron microglass (20-0332-05) for maximum capture, or 10 micron cellulose paper (20-0332-03). When the element loads up, you swap it instead of buying a sealed OEM unit again.

What You'll Feel

  • The direct-injection high-pressure pump protected by filtration you control
  • A minutes-long install replacing a factory service part, no drilling or cutting
  • Element-level serviceability, replacing media instead of a whole sealed filter
  • Filtration matched to the build, with microglass or cellulose options

Features

  • Replaces the OEM fuel filter located between the electric and mechanical fuel pumps
  • Element options: 6 micron microglass (20-0332-05) or 10 micron cellulose paper (20-0332-03)
  • Serviceable design with replacement elements available separately
  • Installs in minutes; no cutting or drilling required
  • Not compatible with the Focus ST

The Details

The RS's direct injection architecture is what raises the stakes here. The in-tank electric pump lifts fuel forward through this filter to the engine-driven mechanical pump, which multiplies pressure for the injectors; debris that passes the filter meets precision-lapped surfaces in that mechanical pump first, and DI pump internals do not forgive contamination. Radium's kit takes over the OEM filter's position in that chain with an element you can actually service, and the media choice follows the standard logic: microglass captures finer particles and gets replaced at end of life, cellulose filters at 10 microns as the economical route. This kit is RS-specific and does not fit the Focus ST, whose fuel system differs.

Kit Includes

  • 1x Radium fuel filter assembly with selected element (microglass -05 or cellulose -03)
  • Mounting components and hardware for the OEM filter location

Applications

  • 2016-2018 Ford Focus RS (2.3L EcoBoost)
  • NOT compatible with the Ford Focus ST
