Radium Engineering Coolant Tank Kit | 2013-2014 Ford Mustang Shelby GT500 (20-0293)

Track a supercharged GT500 and the plastic coolant tank becomes the weakest part in the engine bay.

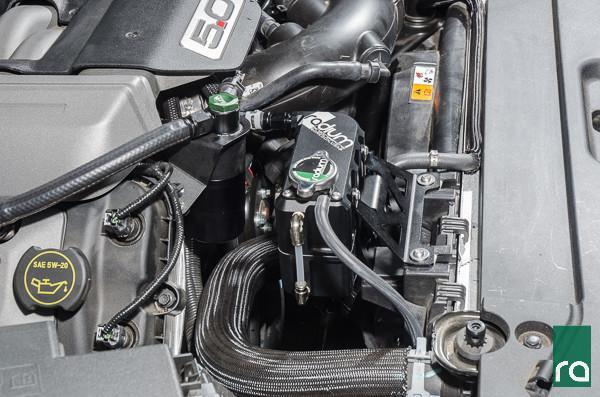

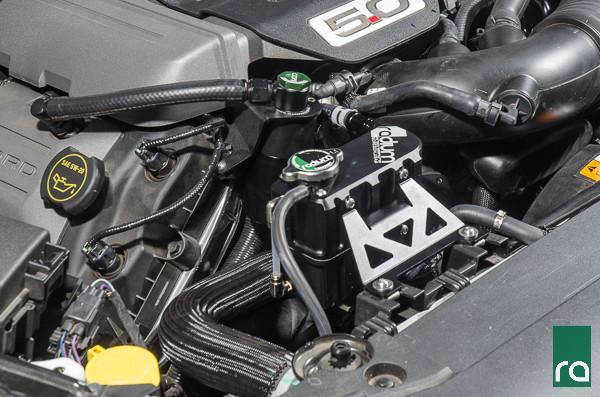

The Radium Engineering Coolant Tank Kit for the 2013-2014 Shelby GT500 replaces the plastic coolant tank at the front of the engine bay with hardware built for the duty: a coolant expansion tank CNC machined from aluminum in two bolted halves, whose internal design features two chambers that are not isolated from each other, with cross-over passages at the top and bottom, plus an internal swirl feature aiding in deaerating the system. Laser etched, anodized, low-profile, and finished with stainless hardware. One planning note matters: the OEM pressure cap cannot be reused, so pair the tank with a Radium stainless pressure cap, sold separately.

What You'll Feel

• Cooling system confidence at track pace, with no plastic tank aging toward failure
• Better deaeration from the swirl internals, keeping the Trinity's coolant working as liquid
• A boiling point increase available via Radium's high pressure caps for extreme conditions
• An engine bay centerpiece in machined, anodized aluminum

Features

• Replaces the plastic coolant tank at the front of the 13-14 GT500 engine bay

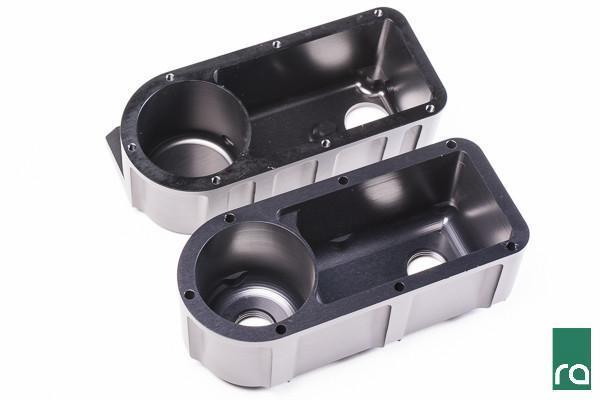

• CNC machined aluminum, two bolted halves; laser etched and anodized, low-profile design
• Two-chamber internal design with top and bottom cross-over passages; internal swirl feature for deaeration
• Stainless steel hardware
• OEM pressure cap CANNOT be reused; Radium stainless pressure caps sold separately

The Details

Deaeration is the quiet job a header tank does, and the 5.8's supercharged output makes it critical: entrained air steals heat capacity exactly when the blower is adding heat fastest, and the swirl internals coax those bubbles out of circulation while the connected chambers balance flow through the crossover passages. The cap decision completes the system, with Radium's stainless caps carrying a race proven high pressure valve, and the higher-pressure option raising the boiling point for improved cooling efficiency when tracking the vehicle in extreme conditions. Installation lands in the factory location with the kit's hardware, instructions available from Radium.

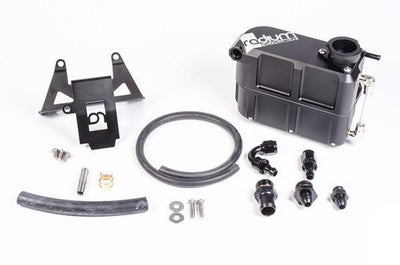

Kit Includes

• 1x CNC machined aluminum coolant expansion tank (two-piece, bolted)
• Mounting hardware, stainless steel
• Pressure cap NOT included and OEM cap cannot be reused; Radium caps sold separately

Applications

• 2013-2014 Ford Mustang Shelby GT500 (S197, 5.8L Trinity)
• Pairs with Radium stainless steel pressure caps
