Radium Engineering CCV Catch Can Kits | 2005-2013 Chevrolet Corvette C6 (20-0786-FL / 20-0787-FL)

The C6's LS breathes out of both sides, and the factory routes all of it back through your intake.

The crankcase ventilation side of the C6 Corvette's LS2, LS3 or LS7 pulls oil-laden vapor from the valve cover every time the engine sees vacuum, and over the miles that vapor coats the intake tract, dilutes octane, and leaves a film on everything downstream. The Radium Engineering CCV Catch Can Kits for the 2005-2013 Corvette plumb a Fluid Lock catch can inline with the C6's crankcase ventilation circuit, catching oil and water condensation before the intake ever sees them, with vehicle-specific mounting and plumbing for a clean factory-quality install.

Choose Your Kit

Two configurations cover the C6:

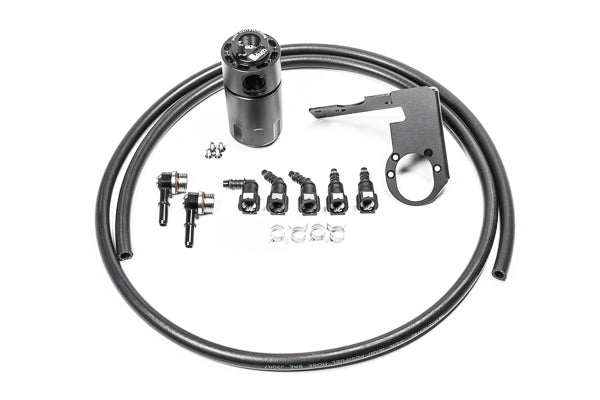

• CCV Catch Can Kit (20-0786-FL): single Fluid Lock can plumbed into the crankcase ventilation circuit, the essential coverage for street and track C6s

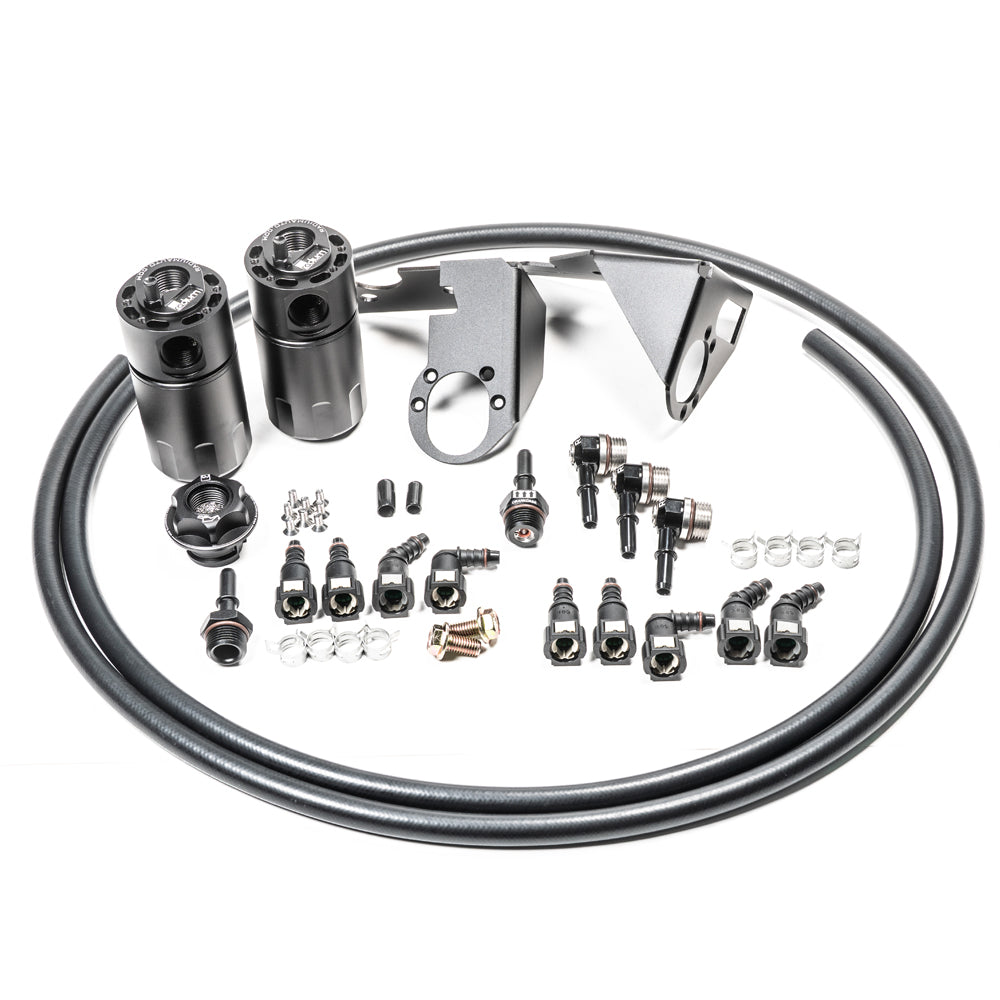

• Dual CCV Catch Can Kit (20-0787-FL): twin Fluid Lock cans for maximum separation capacity, the choice for track duty and boosted builds where crankcase vapor volume climbs

What You'll Feel

• The intake tract kept free of oil film across the LS's famous longevity
• Cleaner combustion and effectively higher octane from de-oiled inlet air
• Condensation caught in the can instead of circulating with the vapor
• Simple dipstick service on the schedule the engine sets

Features

• Fluid Lock catch can architecture: 2-step oil separation baffling, O-ring sealed dipstick, and the Fluid Lock mechanism that keeps collected fluids out of the manifold even past a service interval
• C6-specific mounting brackets, hoses, fittings and hardware for a complete installation
• Pressure sealed cans suitable for naturally aspirated and forced induction applications
• Closed loop routing preserves emissions-legal operation

Complete the System

These kits cover the crankcase ventilation side. For the PCV side of your LS2, LS3 or LS7, pair with the Radium PCV catch can kit (20-0785-FL), available on our GM LS Engines catch can listing, for complete coverage of both circuits.

Kit Includes

• Fluid Lock catch can with O-ring sealed dipstick (two cans in the Dual kit)
• C6-specific mounting brackets, hoses, fittings and hardware for complete installation

Applications

• 2005-2013 Chevrolet Corvette C6, including Z06
• Naturally aspirated and forced induction builds

Fuel Delivery for the C6

Once the crankcase side is handled, the fuel side is the next ceiling on a built C6. Radium covers the whole path:

• Fuel pump hanger, mid 03-13 Corvette (20-0980): drop-in replacement for the factory pump assembly, one pump standard and two with the dual pump add-on. Requires vehicles after VIN 35114930
• Fuel hanger plumbing kit, mid 03-08 Corvette (20-0981-03 / 20-0981-05): the tank-to-engine half, including the MPR-RA regulator and low micron filter the hanger requires. Manual transmission only
