Radium Engineering Catch Can Kits | 2022+ Subaru BRZ / Toyota GR86 (20-0911-FL / 20-0902-FL)

Direct injection means nothing washes the intake valves. A catch can is the only thing standing between the crankcase and that deposit.

Radium Engineering Fluid Lock catch can kits for the 2022 and newer Subaru BRZ and Toyota GR86 intercept oil and water condensation before they reach the intake. These are closed loop systems that do not vent to atmosphere, so they are emissions and track legal, and they keep oil vapour out of the cabin.

Choose Your Kit

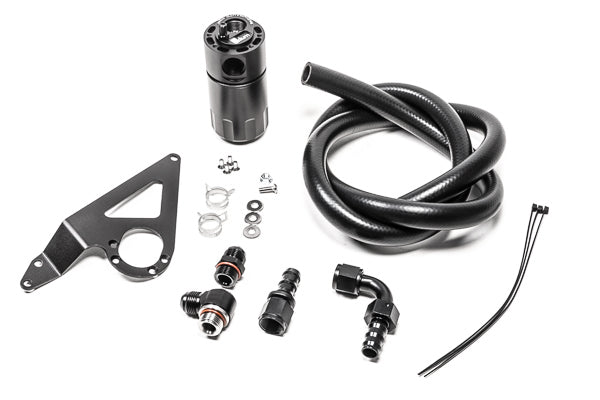

• PCV Catch Can Kit (20-0911-FL): for the 2022+ BRZ and GR86, inline with the PCV valve
• CCV Catch Can Kit (20-0902-FL): crankcase vent side, covering FR-S, BRZ, GT86, and GR86

What You'll Feel

• An intake tract that stays clean on an engine with no port injection to wash it
• Fluid Lock protection: the can cannot overfill and dump contaminants back into the intake
• A closed system that passes tech and keeps oil smell out of the cabin
• Easy inspection through the O-ring sealed dipstick

Features

• Patented Fluid Lock system preventing reservoir overfill
• 7 fluid ounce can with O-ring sealed dipstick
• Large 10AN ORB inlet and outlet ports, 4AN ORB drain port
• 2-step oil separation baffling
• Vehicle specific anodized mounting bracket
• No cutting or drilling required

The Details

Note the difference in coverage between the two kits. The PCV kit (20-0911-FL) is specific to the 2022 and newer BRZ and GR86. The CCV kit (20-0902-FL) spans the wider family, covering the earlier FR-S, BRZ, and GT86 as well as the current GR86, because the crankcase vent arrangement carried over.

The two circuits catch different things. The PCV hose sees metered vacuum at idle, cruise, and deceleration, drawing crankcase vapour and oil sludge into the manifold. The CCV line flows hard out of the crankcase at wide open throttle, coating the intake tract. Running both is the complete answer.

No fixed emptying interval applies: check the dipstick at three to four weeks and set your own schedule, noting PCV cans typically collect more than CCV cans.

Kit Includes

• Fluid Lock catch can with integrated dipstick
• Vehicle specific anodized mounting bracket
• Hose, hose ends, and adapter fittings
• Stainless steel mounting hardware

Applications

• 20-0911-FL PCV: 2022 and newer Subaru BRZ and Toyota GR86
• 20-0902-FL CCV: Scion FR-S, Subaru BRZ, Toyota GT86 and GR86

Important Notes

• The PCV kit is 2022+ specific; the CCV kit covers the earlier cars as well
